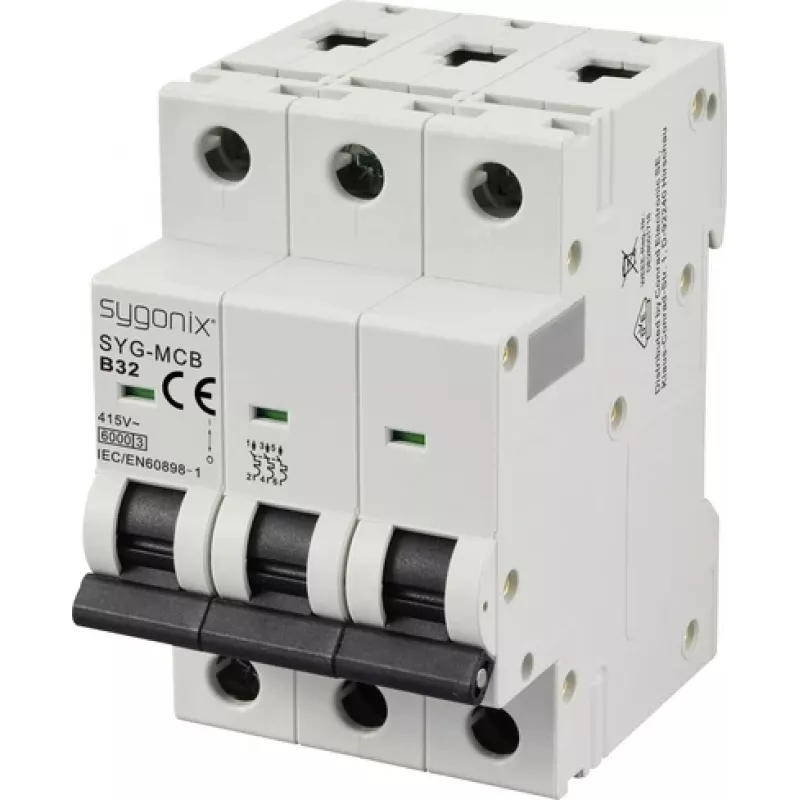

SYGONIX SY-6441064 disjuntor de 3 polos 32A tipo B 6kA 415V AC

The SYGONIX SY-6441064 is a 3-pole miniature circuit breaker (MCB) rated at 32 A with Type B tripping characteristic, designed for protecting circuits in commercial and industrial installations. Its 6 kA breaking capacity and 415 V AC rating make it suitable for three-phase systems where reliable overcurrent and short-circuit protection are required.

Highlights

• 3-pole design for three-phase circuits
• 32 A rated current with Type B tripping for general loads
• 6 kA short-circuit breaking capacity
• DIN rail mounting for easy installation
• Compact 3-module width

In daily use

This MCB trips quickly on short circuits and overloads, protecting cables and connected equipment. The Type B characteristic is suitable for resistive loads such as lighting and socket circuits. Its IP20 rating makes it appropriate for use in distribution boards and enclosures.

Full specifications

• Rated current: 32 A
• Tripping characteristic: Type B
• Number of poles: 3
• Rated voltage: 415 V AC
• Short-circuit breaking capacity: 6 kA
• Frequency: 50/60 Hz
• Mounting type: DIN rail
• Module width: 3 TE
• Protection class: IP20
• Standards: EN 60898-1
• Terminal capacity (flexible): 1 - 25 mm²
• Terminal capacity (rigid): 1 - 35 mm²
• Operating temperature range: -25 to +55 °C

Final note

The SY-6441064 offers dependable protection for three-phase circuits, combining a compact footprint with robust performance.
