Sygonix SY-6872532 Bloqueio de disjuntor vermelho para largura de interruptor até 8 mm

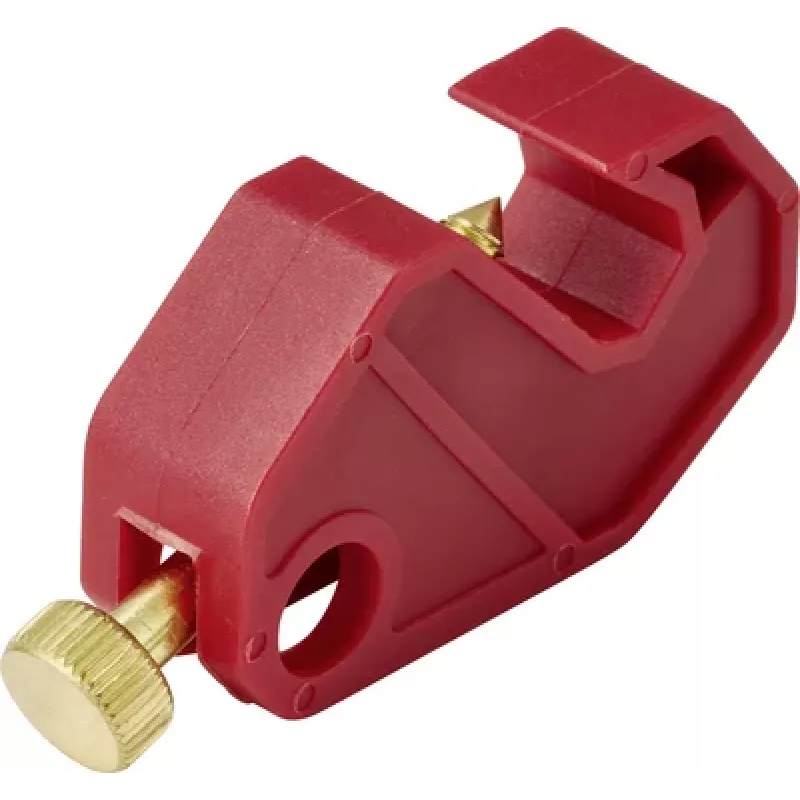

Circuit breaker lockout device for securing single-pole breakers with toggle width up to 8 mm. The red ABS clamp locks onto the breaker toggle and accepts one padlock with shackle diameter up to 7 mm, preventing unauthorized or accidental operation during maintenance.

Advantages

Tool-free installation with screw-tightened clamping mechanism. Non-conductive ABS body is resistant to chemicals, temperature extremes from -20°C to +80°C, and UV exposure. Compact design fits standard circuit breakers and supports lockout/tagout safety procedures.

Suitable for

• Lockout/tagout (LOTO) procedures on circuit breakers
• Electrical maintenance and repair work
• Industrial and commercial electrical panels

Key specifications

• Device type: Circuit breaker lockout
• Colour: Red
• Material: ABS (Acrylonitrile Butadiene Styrene)
• Compatibility: Circuit breakers with toggle width up to 8 mm
• Mounting method: Clamping mechanism
• Locking mechanism: Screw-tightened clamp
• Padlock requirement: 1 padlock (not included)
• Max. padlock shackle diameter: 7 mm
• Operating temperature range: -20°C to +80°C
• Insulation properties: Non-conductive
• Application: Lockout/Tagout (LOTO) safety procedure
• Resistance: Chemical, temperature, and UV resistant
• Installation: Tool-free

Recommendations

Use with a safety padlock (shackle diameter up to 7 mm) to complete the lockout. Verify toggle width before ordering; for wider toggles consider a larger lockout device.
