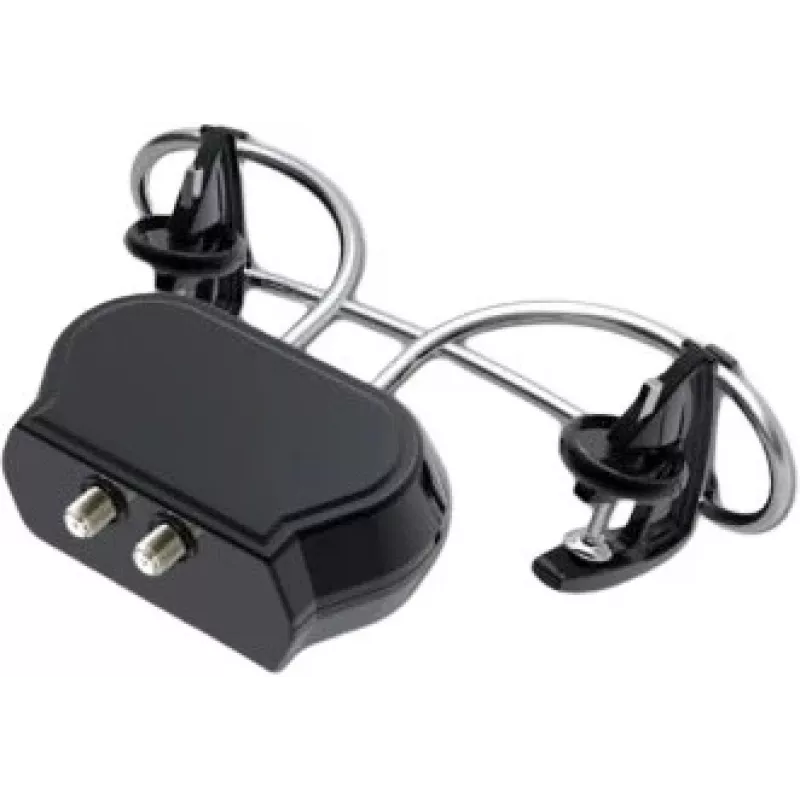

SYNAPS AHD-390 Antena interior ativa DVB-T com clipe

The SYNAPS AHD-390 is a high-performance active indoor antenna designed for reliable reception of DVB-T, DVB-T2, DAB, and FM signals. Its compact clip-on design allows for easy mounting on a TV or monitor, while the built-in amplifier ensures excellent signal quality even in challenging reception areas. With a sleek black finish and versatile mounting options, this antenna is the perfect solution for cord-cutters and digital TV enthusiasts.

Advantages

Experience crystal-clear digital TV and radio reception with the SYNAPS AHD-390. The active amplifier boosts weak signals, reducing dropouts and pixelation. The clip-on design saves space and eliminates the need for complex installation. Enjoy a wide frequency range covering VHF and UHF bands, ensuring compatibility with most broadcast standards.

Suitable for

• Indoor DVB-T and DVB-T2 digital TV reception
• DAB and FM radio listening
• Users seeking a compact, easy-to-install antenna
• Replacement or upgrade for existing indoor antennas

Key specifications

• Antenna Type: Active Indoor Antenna
• Reception Standards: DVB-T, DVB-T2, DAB, FM
• Frequency Range: VHF 174-230 MHz, UHF 470-862 MHz
• Gain: 28 dBi (VHF), 30 dBi (UHF)
• Impedance: 75 Ohm
• Noise Figure: < 3 dB
• Connector: F-type (female)
• Power Supply: 5V DC via USB or DVB-T receiver
• Power Consumption: < 30 mA
• Polarization: Horizontal and Vertical
• Mounting: Clip-on, Magnetic Base, Stand
• Cable Length: 3 meters
• Color: Black
• Material: Plastic

Recommendations

For optimal performance, place the antenna near a window or as high as possible. Ensure the amplifier is powered via the included USB cable or a compatible DVB-T receiver. This antenna is designed for indoor use only.
