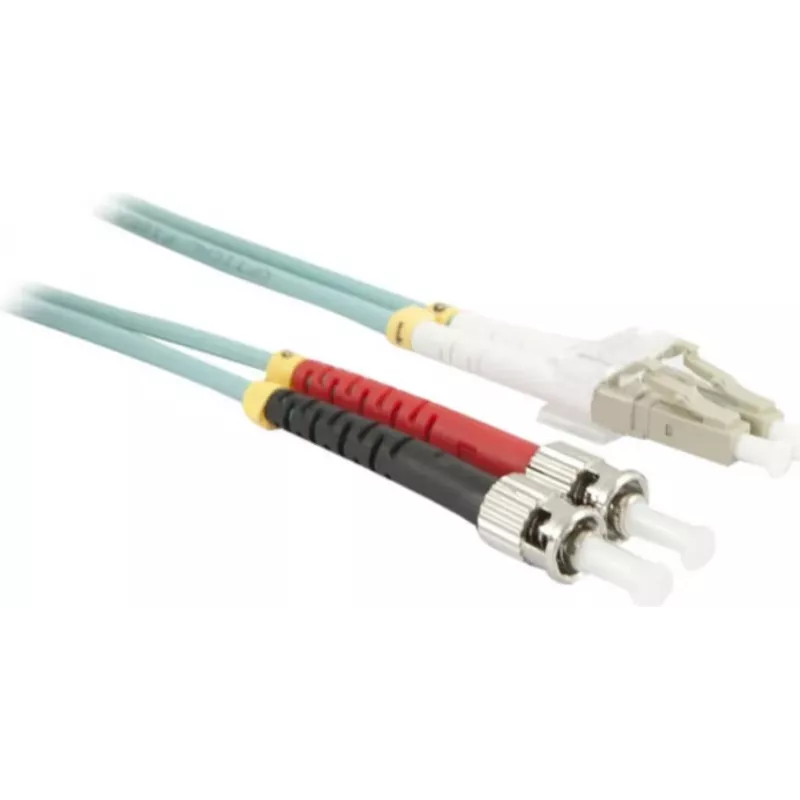

Synergy 21 Cabo de fibra ótica patch 3,0m OM3 LC-ST duplex - Azul

The Synergy 21 3.0m OM3 LC-ST Duplex Fiber Optic Patch Cable is a high-performance multimode fiber optic cable designed for reliable data transmission in data centers, local area networks (LANs), and storage area networks (SANs). With a length of 3.0 meters and OM3 fiber class, it supports data rates up to 10 Gbps over 300 meters and is backward compatible with lower speeds. The cable features LC duplex to ST duplex connectors, both male, and a blue LSZH (Low Smoke Zero Halogen) jacket for safety and durability.

Advantages

This patch cable offers low insertion loss (≤0.3 dB) and high return loss (≥30 dB), ensuring minimal signal degradation and reliable performance. The OM3 multimode fiber is optimized for 850 nm VCSEL laser sources, making it ideal for high-bandwidth applications. The LSZH jacket reduces toxic smoke and fumes in case of fire, enhancing safety in enclosed spaces.

Suitable for

• Data center interconnects
• Local Area Networks (LANs)
• Storage Area Networks (SANs)
• High-speed server and switch connections

Key specifications

• Cable Type: Fiber Optic Patch Cable
• Fiber Mode: Multimode
• Fiber Class: OM3
• Connector Type A: LC Duplex
• Connector Type B: ST Duplex
• Cable Length: 3.0 m
• Jacket Color: Blue
• Core Diameter: 50 µm
• Cladding Diameter: 125 µm
• Number of Fibers: 2 (Duplex)
• Data Rate Support: Up to 10 Gbps (300m), 40/100 Gbps (shorter distances)
• Insertion Loss (Max): ≤ 0.3 dB
• Return Loss (Min): ≥ 30 dB
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Connector Polish: PC (Physical Contact)
• Operating Temperature: -20°C to 70°C
• Storage Temperature: -40°C to 85°C
• Compliance: RoHS, CE

Recommendations

For optimal performance, ensure connectors are clean before installation. This cable is compatible with standard LC and ST interfaces. Suitable for use in structured cabling systems requiring OM3 performance.
