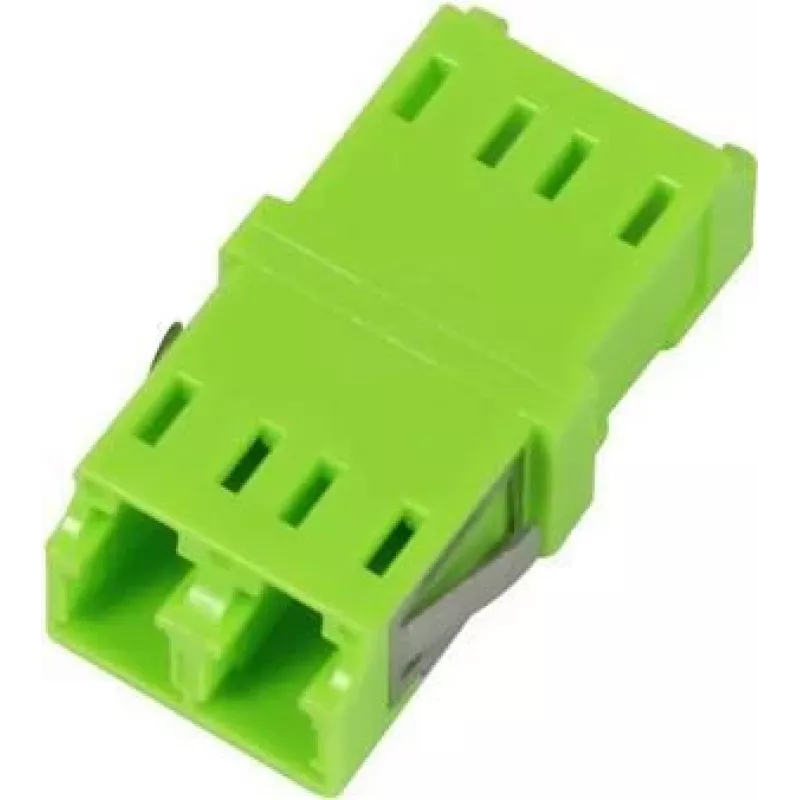

SYNERGY21 Acoplador de fibra ótica LC Duplex Multimodo OM5 verde-lima (S215509)

The SYNERGY21 S215509 is a high-performance LC duplex fiber optic coupler designed for reliable interconnection of multimode fiber optic cables. Featuring a lime green housing for OM5 identification, this coupler ensures low insertion loss and high return loss for optimal signal integrity in data center and enterprise networks.

Advantages

• Precision ceramic alignment sleeves for low insertion loss (<0.2 dB typical) and high return loss (>30 dB typical).
• Durable PVC housing with flanged mounting for secure installation in patch panels.
• Supports OM3, OM4, and OM5 multimode fibers for versatile use.
• Compliant with IEC 61754-20, RoHS, and REACH standards.

Suitable for

• Interconnecting LC duplex patch cables in fiber optic networks
• Data centers, telecommunications rooms, and LAN applications
• Multimode fiber optic systems requiring high-density connectivity

Key specifications

• Connector Type: LC Duplex Female to LC Duplex Female
• Fiber Type: Multimode (50/125 µm)
• Supported OM Classes: OM3, OM4, OM5
• Insertion Loss: <0.2 dB typical
• Return Loss: >30 dB typical
• Housing Color: Lime Green
• Housing Material: PVC
• Sleeve Material: Ceramic
• Mating Durability: >500 cycles
• Operating Temperature: -20°C to +70°C
• Storage Temperature: -40°C to +85°C
• Mounting Type: Flanged
• Standards: IEC 61754-20, RoHS, REACH

Recommendations

For optimal performance, pair with SYNERGY21 LC duplex patch cables of matching OM class. Ensure clean fiber end-faces before mating to maintain low insertion loss.
