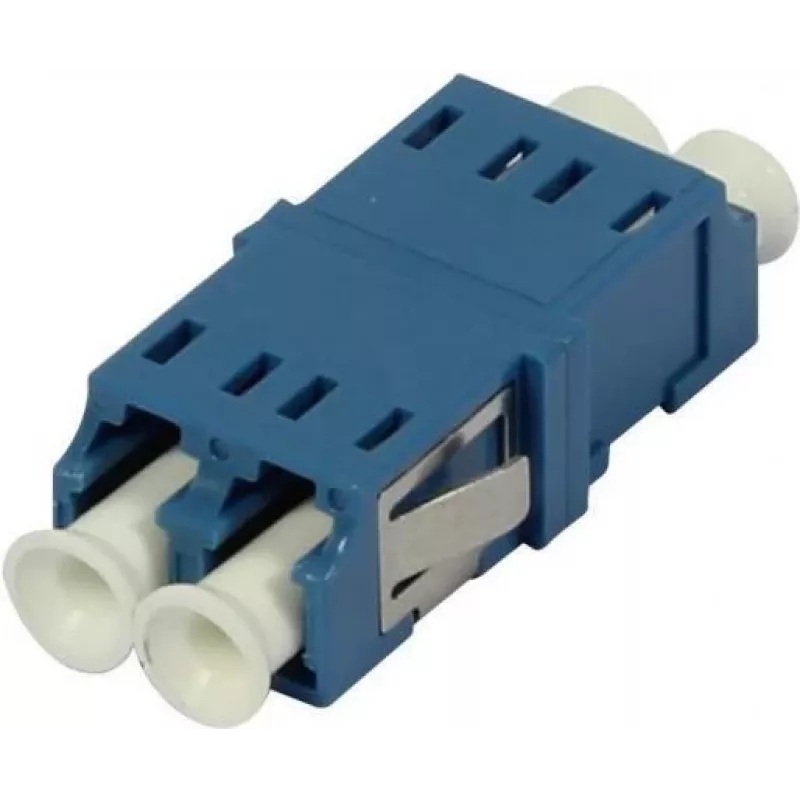

SYNERGY21 adaptador de fibra ótica LC-LC monomodo duplex, sem flange, azul, PVC, manga cerâmica

The SYNERGY21 S215483 is a high-quality LC-LC duplex fiber optic adapter designed for singlemode applications. It features a flangeless design, blue PVC housing, and ceramic alignment sleeves for reliable performance. Ideal for connecting LC patch cables in data centers, telecommunications, and network installations.

Advantages

Low insertion loss (<0.2 dB) and high return loss (>50 dB) ensure excellent signal integrity. Durable PVC housing and ceramic sleeves provide long-lasting performance with over 500 mating cycles. Flangeless design allows for easy mounting in panels and enclosures.

Suitable for

• Singlemode fiber optic networks (9/125 µm)
• Duplex LC connections
• Data centers, telecom rooms, and FTTH installations
• Patch panels and fiber distribution frames

Key specifications

• Connector Type: LC Female to LC Female
• Fiber Mode: Singlemode (OS2)
• Configuration: Duplex
• Housing Material: PVC
• Color: Blue
• Sleeve Material: Ceramic
• Insertion Loss: <0.2 dB
• Return Loss: >50 dB (UPC)
• Mating Cycles: >500
• Operating Temperature: -20°C to +70°C
• Storage Temperature: -40°C to +85°C
• Compliance: RoHS, REACH

Recommendations

For optimal performance, use with SYNERGY21 singlemode LC patch cables. Ensure clean connectors before mating.
