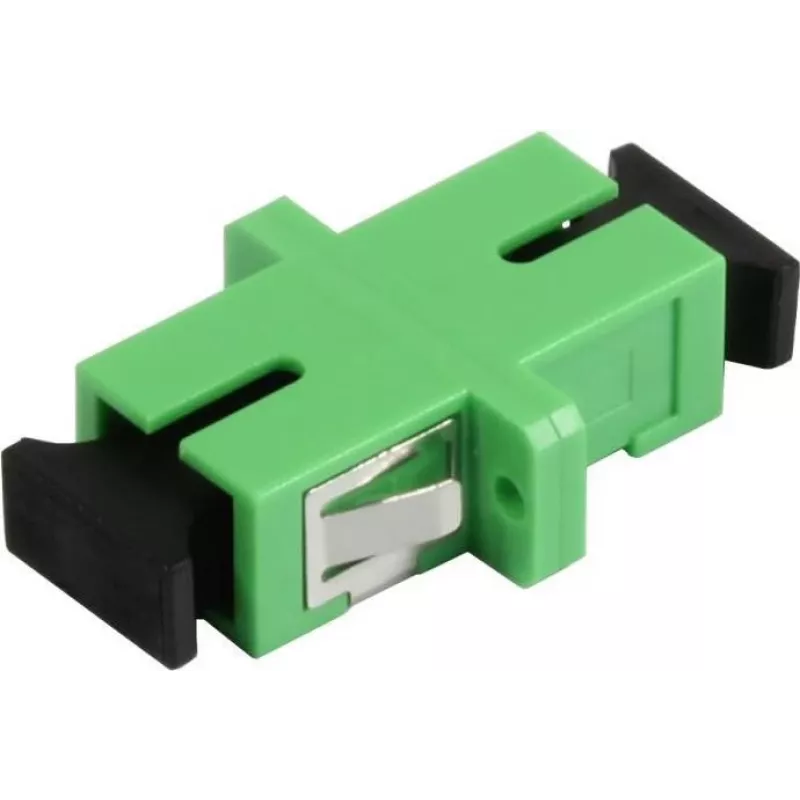

SYNERGY21 Adaptador de Fibra Ótica SC/APC, Monomodo, Simplex, PVC, Manga Cerâmica, Com Flange, Verde

The SYNERGY21 S215593 is a high-quality SC/APC fiber optic adapter designed for singlemode applications. Featuring a simplex configuration with ceramic zirconia sleeves, this adapter ensures low insertion loss and high return loss, making it ideal for critical network infrastructures. The flanged design allows for secure panel mounting, while the green PVC housing provides durability and easy identification.

Advantages

This adapter offers reliable performance with typical insertion loss <0.2 dB and return loss >60 dB, ensuring minimal signal degradation. The angled physical contact (APC) ferrule end-face reduces back reflection, enhancing system performance. With durability exceeding 500 mating cycles, it provides long-term reliability in demanding environments.

Suitable for

• Telecommunications networks
• Data centers
• Local area networks (LAN)
• Fiber to the x (FTTx) deployments

Key specifications

• Product Type: Fiber Optic Adapter / Coupler
• Connector Type: SC/APC Female to SC/APC Female
• Fiber Mode: Singlemode (9/125 µm)
• Number of Channels: Simplex (1-channel)
• Sleeve Material: Zirconia Ceramic
• Mounting Type: Flanged (Panel Mount)
• Housing Material: PVC
• Color: Green
• Insertion Loss: <0.2 dB typical
• Return Loss: >60 dB typical
• Operating Temperature: -20°C to +70°C
• Storage Temperature: -40°C to +85°C
• Durability: >500 mating cycles
• Standard Compliance: IEC 61754-4

Recommendations

For optimal performance, pair with SC/APC patch cables and ensure clean ferrule ends before mating. Suitable for use in patch panels and fiber distribution frames.
