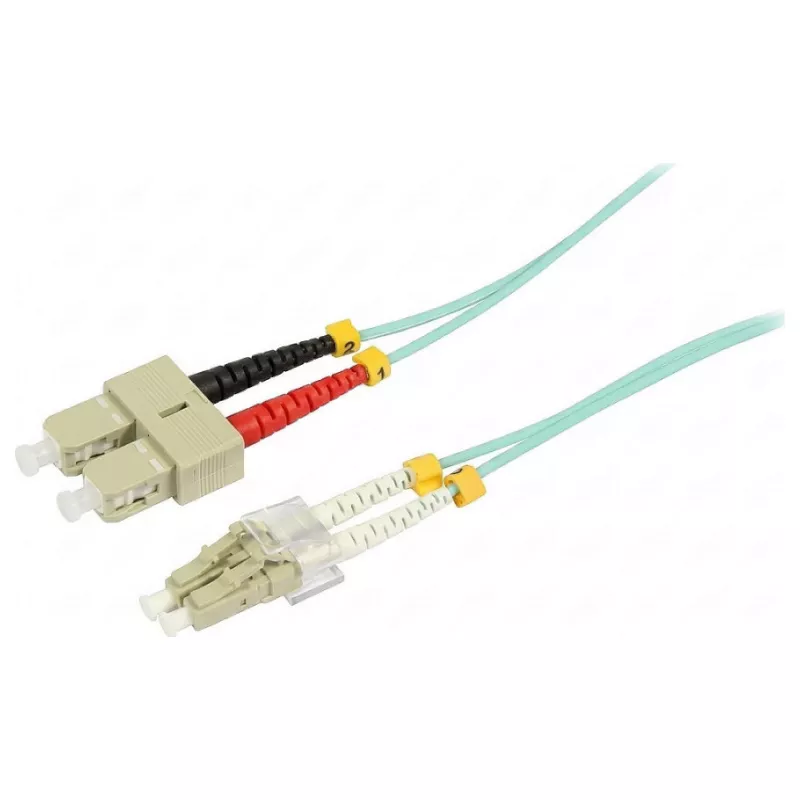

SYNERGY21 Cabo de fibra ótica 10 m LC-SC duplex 50/125 µm OM3 LSZH aqua 2 mm

The SYNERGY21 Fiber Optic Patch Cable is a high-performance duplex multimode patch cord designed for reliable data transmission in enterprise networks, data centers, and telecommunications applications. With a length of 10 meters, LC to SC connectors, and OM3 fiber class, this cable supports high-bandwidth applications up to 10 Gbps over distances up to 300 meters. The LSZH (Low Smoke Zero Halogen) jacket ensures safety in enclosed spaces, while the aqua color provides easy identification.

Advantages

This patch cable offers low insertion loss (<0.3 dB) and high return loss (>30 dB) for optimal signal integrity. The 2 mm diameter per fiber provides flexibility and durability. The duplex design allows for simultaneous bidirectional communication, making it ideal for network switches, servers, and storage area networks.

Suitable for

• Data center cabling infrastructure
• Enterprise network connections
• Telecommunications equipment
• Fiber-to-the-desk applications
• High-speed data transmission up to 10 Gbps

Key specifications

• Cable Type: Fiber Optic Patch Cable
• Fiber Type: Multimode OM3
• Core/Cladding: 50/125 µm
• Connectors: LC to SC, Duplex
• Length: 10 meters
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Jacket Color: Aqua
• Cable Diameter: 2 mm per fiber
• Insertion Loss: <0.3 dB
• Return Loss: >30 dB
• Polish Type: PC
• Attenuation: 3.0 dB/km @ 850nm, 1.0 dB/km @ 1300nm
• Bandwidth: 1500 MHz·km @ 850nm, 500 MHz·km @ 1300nm

Recommendations

For optimal performance, use with OM3-compatible transceivers and ensure proper cleaning of connectors before installation. This cable is compliant with ISO/IEC 11801 and TIA/EIA standards.
