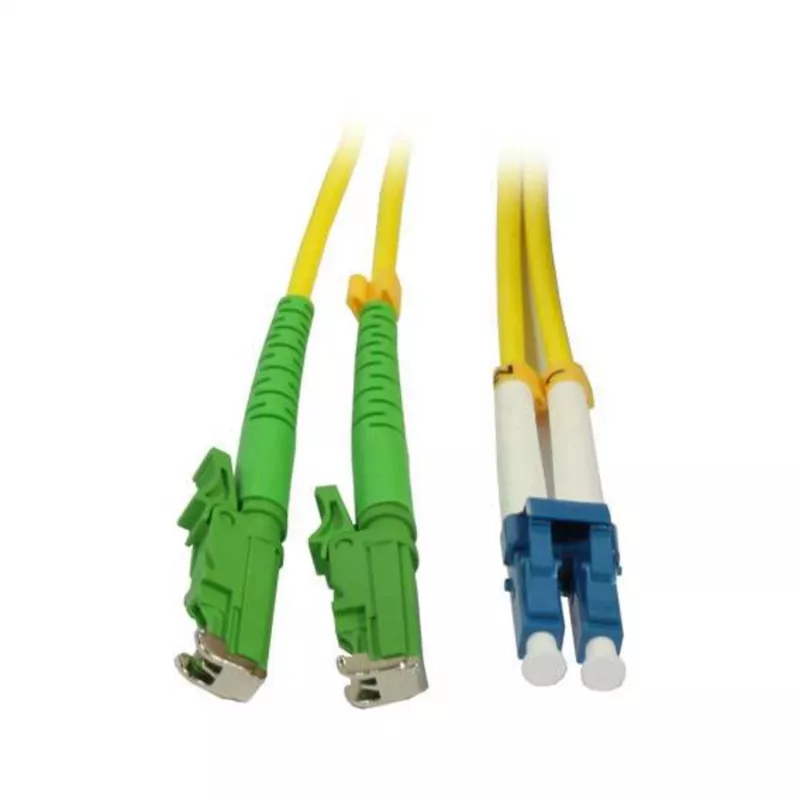

SYNERGY21 Cabo de ligação de fibra ótica 2m LSH (E2000 APC) para LC Duplex OS2 G.657.A2 9/125µm LSZH amarelo

The SYNERGY21 S215514 is a high-quality duplex fiber optic patch cable designed for reliable single-mode transmission. With a length of 2 meters, it features LSH (E2000) APC connectors on one end and LC connectors on the other, ensuring low insertion loss and high return loss for critical network applications. The cable is manufactured to OS2 standards with G.657.A2 bend-insensitive fiber, making it ideal for data centers, telecommunications, and FTTx installations.

Advantages

This patch cable offers exceptional performance with typical insertion loss ≤0.25 dB and return loss ≥60 dB. The LSZH (Low Smoke Zero Halogen) jacket ensures safety in enclosed spaces, while the 3 mm diameter provides flexibility and durability. The APC polishing on the LSH connector minimizes back reflection, making it suitable for high-speed networks.

Suitable for

• Data center cabling
• Telecommunications networks
• FTTx (Fiber to the x) deployments
• LAN and SAN environments
• High-speed single-mode fiber links

Key specifications

• Fiber Type: Single-mode OS2
• Fiber Standard: ITU-T G.657.A2 (bend-insensitive)
• Core/Cladding: 9/125 µm
• Connector A: LSH (E2000) APC
• Connector B: LC
• Cable Length: 2 meters
• Jacket Material: LSZH
• Jacket Color: Yellow
• Cable Outer Diameter: 3 mm
• Insertion Loss: ≤0.25 dB (typical)
• Return Loss: ≥60 dB (typical)
• Number of Fibers: 2 (duplex)

Recommendations

For optimal performance, ensure connectors are clean before installation. This cable is compatible with standard LC and E2000 adapters. Ideal for backbone and horizontal cabling in structured cabling systems.
