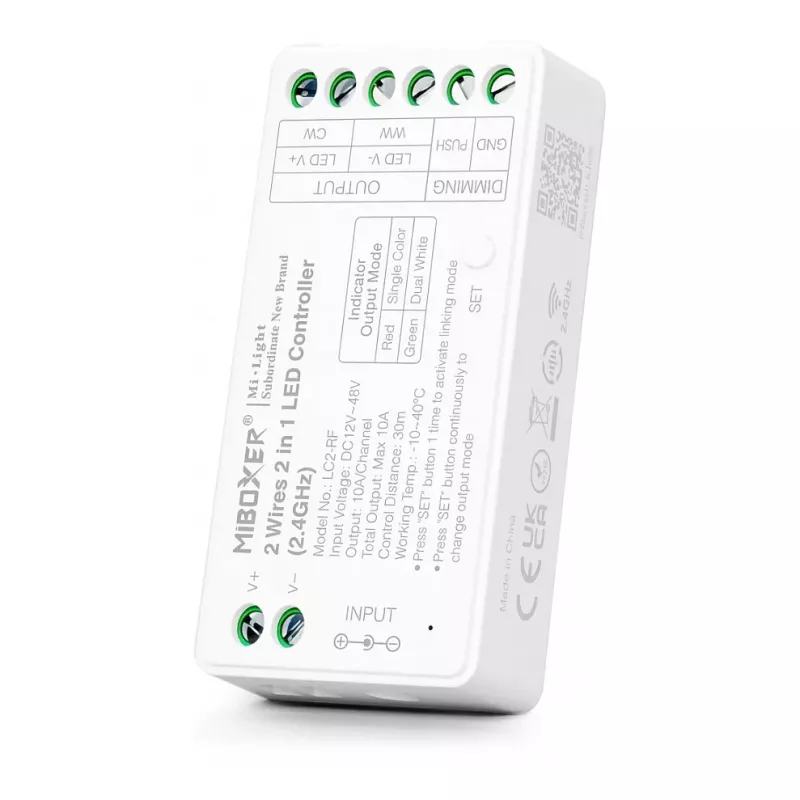

SYNERGY21 Controlador LED Série S CCT (2 Fios) 2.4G MiLight/MiBoxer LC2-RF

The SYNERGY21 LED Controller S-Series CCT (2 Wires) 2.4G is a high-performance wireless controller designed for tunable white LED strips. Compatible with the MiLight/MiBoxer ecosystem, it allows seamless control of color temperature and brightness via RF remote or smartphone app (gateway required). Ideal for residential and commercial lighting projects, this controller offers reliable 2.4GHz RF connectivity and supports both 12V and 24V LED systems.

Advantages

• Dual-channel output for warm white and cold white LEDs enables smooth CCT adjustment from 2700K to 6500K.
• High output capacity: up to 6A per channel (12A total), supporting up to 144W at 12V or 288W at 24V.
• Simple screw terminal connections for easy installation.
• Compact and robust design with overload and short circuit protection.

Suitable for

• Residential tunable white LED strip lighting
• Commercial accent and ambient lighting
• Smart home lighting systems using MiLight/MiBoxer
• Retrofit projects requiring wireless CCT control

Key specifications

• Product Type: LED Controller
• Control Technology: 2.4GHz RF Wireless
• Compatibility: MiLight / MiBoxer Ecosystem
• LED Type: CCT (Tunable White) LED Strips
• Input Voltage: 12V - 24V DC
• Output Channels: 2 (Warm White, Cold White)
• Max Output Current per Channel: 6A
• Total Max Output Current: 12A
• Max Output Power (12V): 144W
• Max Output Power (24V): 288W
• Dimming Range: 0-100%
• Color Temperature Adjustment: Yes
• Control Method: RF Remote Control (sold separately) / Smartphone App (via MiLight/MiBoxer Gateway, sold separately)
• Connection Type (Input): Screw Terminals
• Connection Type (Output): Screw Terminals
• Operating Temperature: -20°C to 60°C
• Protection Features: Overload Protection, Short Circuit Protection
• Certifications: CE, RoHS

Recommendations

For full smart control, pair with a MiLight/MiBoxer WiFi gateway (sold separately) and the free app. Use with compatible CCT LED strips for best results. Ensure power supply voltage matches your LED strip requirements.
