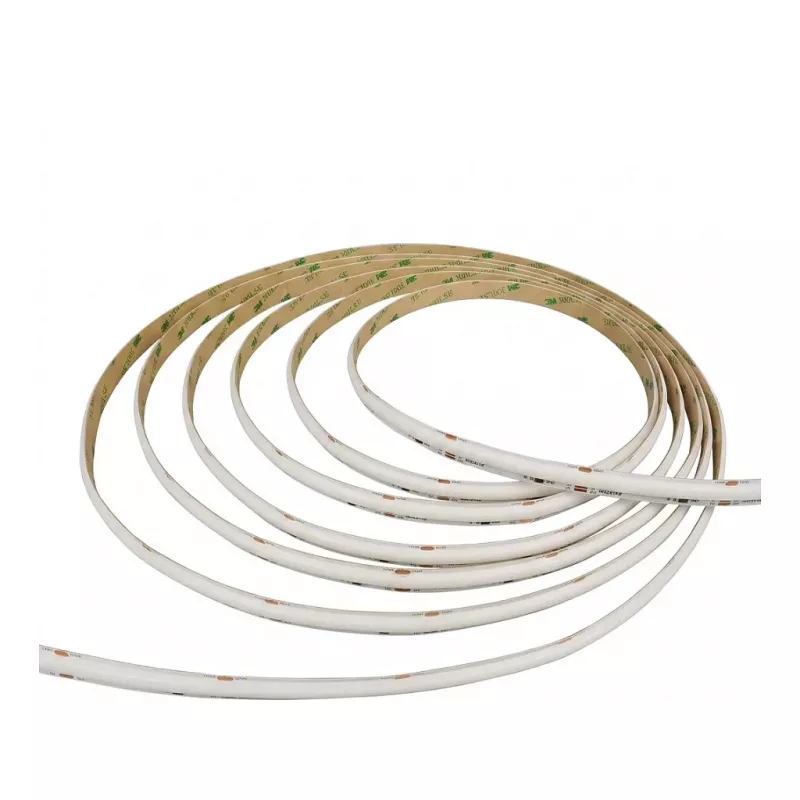

SYNERGY21 LED Flex Strip COB RGB-W Pixel DC24V WS2814F IP67 5m

The SYNERGY21 LED Flex Strip COB RGB-W Pixel is a high-performance, addressable LED strip designed for professional lighting applications. Featuring Chip-on-Board (COB) technology, it delivers smooth, uniform light with no visible dots. The strip is RGB-W (Red, Green, Blue + White) with a dedicated white LED for true white light. It operates at DC24V and is controlled via the WS2814F IC, allowing individual pixel control. With an IP67 rating, it is fully waterproof and dustproof, suitable for both indoor and outdoor use. The strip is 5 meters long with 60 pixels per meter (300 total), consuming approximately 18W per meter (90W total). It has a beam angle of 120°, is cuttable at designated intervals, and includes 3M VHB adhesive backing for easy installation.

Advantages

COB technology provides a seamless, dot-free light line. RGB-W offers vibrant colors plus a dedicated white channel for accurate white light. IP67 protection ensures durability in harsh environments. Addressable pixels enable dynamic lighting effects via SPI/DMX controllers.

Suitable for

• Architectural accent lighting
• Under-cabinet lighting
• Signage and channel letters
• Outdoor landscape lighting
• Stage and event lighting

Key specifications

• LED Technology: COB (Chip-on-Board)
• Color Configuration: RGB-W (Red, Green, Blue + White)
• Addressability: Pixel Addressable
• Control IC: WS2814F
• Operating Voltage: DC 24V
• Ingress Protection: IP67
• Strip Length: 5 meters
• Pixels per Meter: 60
• Total Pixels: 300
• Power Consumption: ~18W/m (total ~90W)
• Beam Angle: 120°
• Cuttable: Yes, at designated intervals
• Adhesive Backing: Yes, 3M VHB tape
• Color Temperature (White): Variable (RGB) + Fixed White (e.g., 6500K)
• CRI: >80 Ra
• Dimmability: Yes, via external SPI/DMX controller
• Lifespan: >50,000 hours
• Operating Temperature: -20°C to +50°C
• Connector Type: Bare wire leads

Recommendations

For optimal performance, use with a compatible SPI/DMX controller and a DC24V power supply rated for at least 90W. Ensure proper heat dissipation when mounting on non-flammable surfaces.
