SYNERGY21 pigtail de fibra ótica LC 50/125 µm OM2 2 m pack de 12 cabo interior colorido

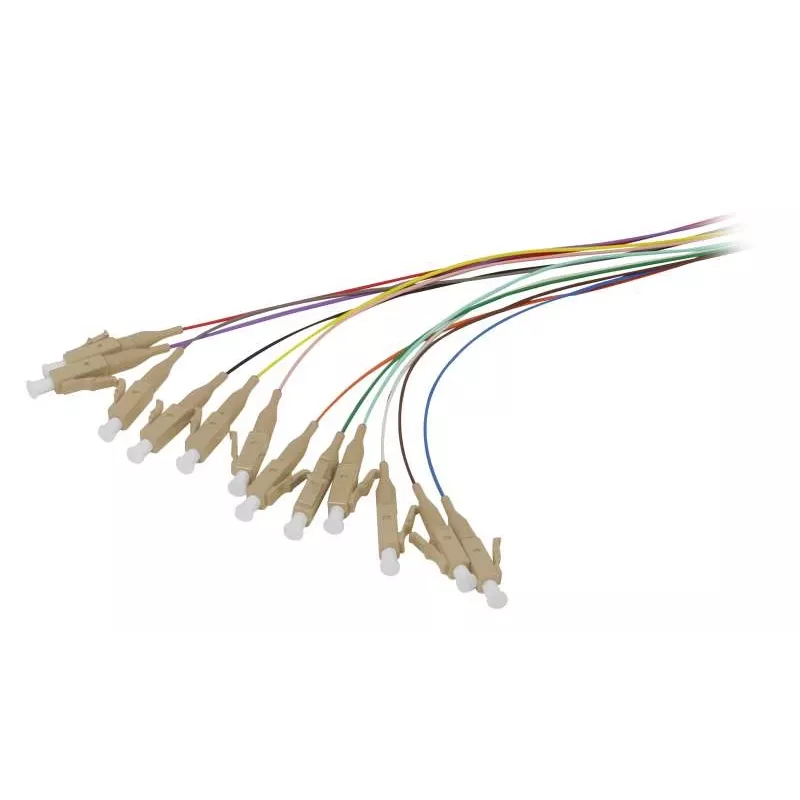

The SYNERGY21 LWL Pigtail LC 50/125 µm OM2 2 m 12-Pack Coloured Indoor Cable is a high-quality fibre optic pigtail assembly designed for reliable indoor network connections. This 12-pack includes pigtails with LC connectors on one end and bare fibres on the other, colour-coded according to TIA-598-C standards for easy identification. Ideal for splicing to distribution cables in data centres, telecom rooms, and LAN networks.

Advantages

Pre-terminated with LC UPC connectors for low insertion loss and high return loss. The tight-buffer 900 µm design provides durability and easy handling. LSZH jacket ensures safety in enclosed spaces. Colour-coded pigtails simplify fibre management and reduce installation errors.

Suitable for

• Data centre fibre distribution
• Telecommunications network splicing
• Local area network (LAN) backbone connections
• Fibre-to-the-desk (FTTD) installations

Key specifications

• Fiber Type: Multimode 50/125 µm OM2
• Connector: LC UPC (End 1), Bare Fiber (End 2)
• Number of Pigtails: 12
• Length: 2 meters
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Buffer Type: Tight Buffer, 900 µm
• Insertion Loss: ≤ 0.3 dB typical
• Return Loss: ≥ 30 dB typical
• Attenuation: 3.0 dB/km @ 850nm, 1.0 dB/km @ 1300nm
• Operating Temperature: -20°C to +70°C
• Storage Temperature: -40°C to +85°C
• Compliance: RoHS, REACH

Recommendations

For optimal performance, use with OM2-rated patch panels and splice trays. Ensure proper cleaning of LC connectors before mating. This pigtail pack is an excellent choice for structured cabling projects requiring colour-coded fibre management.
