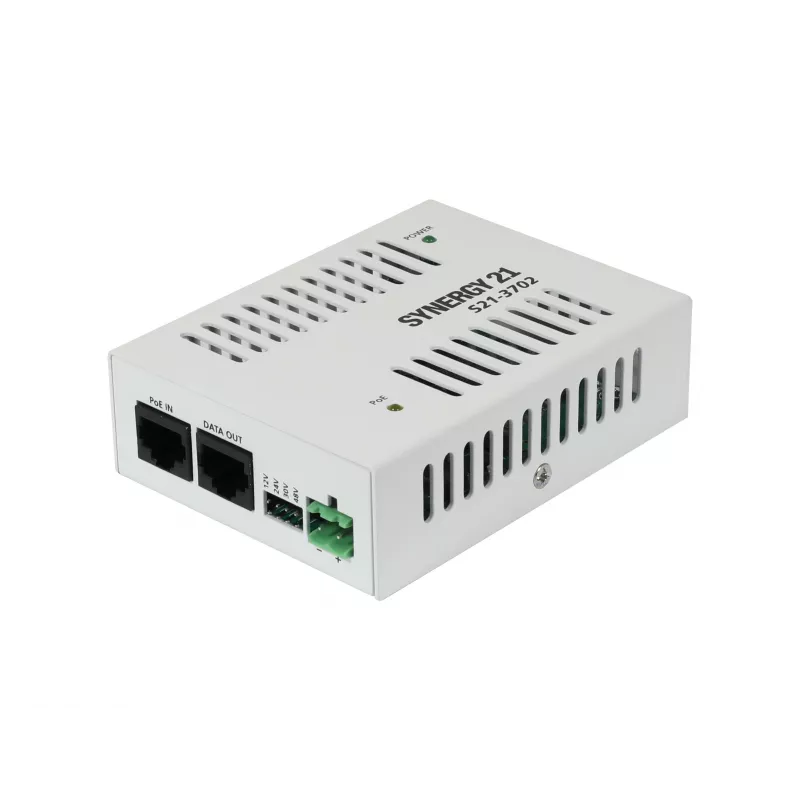

SYNERGY21 S21-3702 driver de tensão constante PoE+ para 24V DC, 24W, IEEE 802.3at, entrada RJ45, terminais de parafuso

Power over Ethernet driver that converts PoE+ input to a regulated 24V DC output, delivering up to 24W for constant voltage LED lighting and low-power DC devices. The S21-3702 accepts IEEE 802.3at (PoE+) over an RJ45 connection and provides screw terminals for easy field wiring.

Advantages

High conversion efficiency above 88% reduces energy loss. Built-in protections against short circuit, overload, and over temperature ensure reliable operation. Compact plastic housing with IP20 rating suits indoor installations.

Suitable for

• LED strip lighting and modules requiring 24V DC constant voltage
• PoE-powered sensors, cameras, and access control devices
• Building automation and IoT endpoints with PoE infrastructure

Key specifications

• Input: Power over Ethernet (PoE) IEEE 802.3at, RJ45 connector
• Output: 24V DC constant voltage, max 1A, 24W
• Efficiency: >88%
• Protection: short circuit, overload, over temperature
• Operating temperature: -20°C to +50°C
• Housing: plastic, IP20

Recommendations

Verify that your PoE switch or injector supports IEEE 802.3at to provide the necessary power. Use appropriate wire gauge for screw terminal connections and ensure adequate ventilation around the unit.
