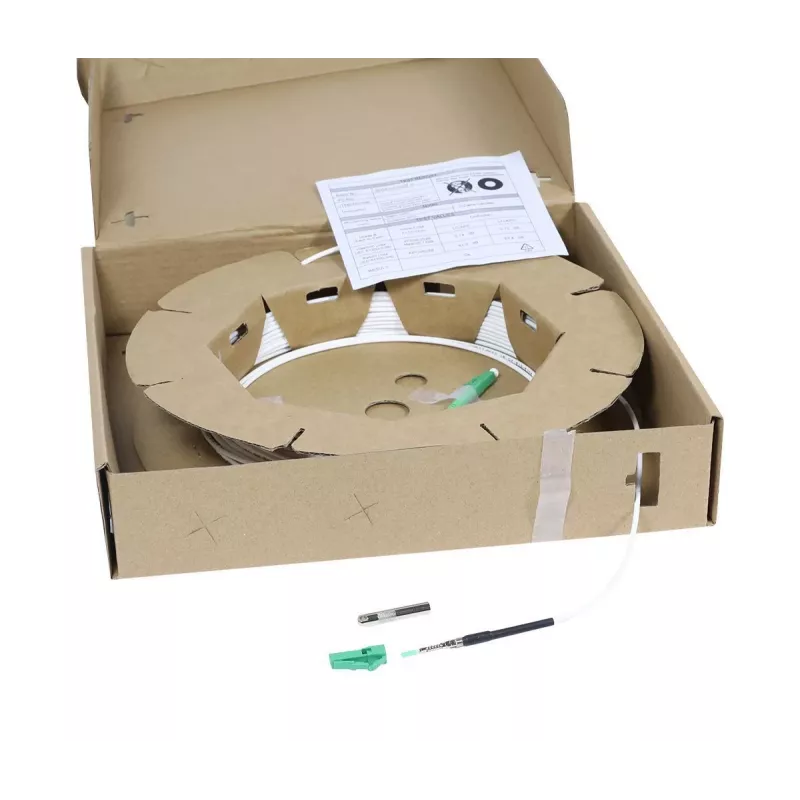

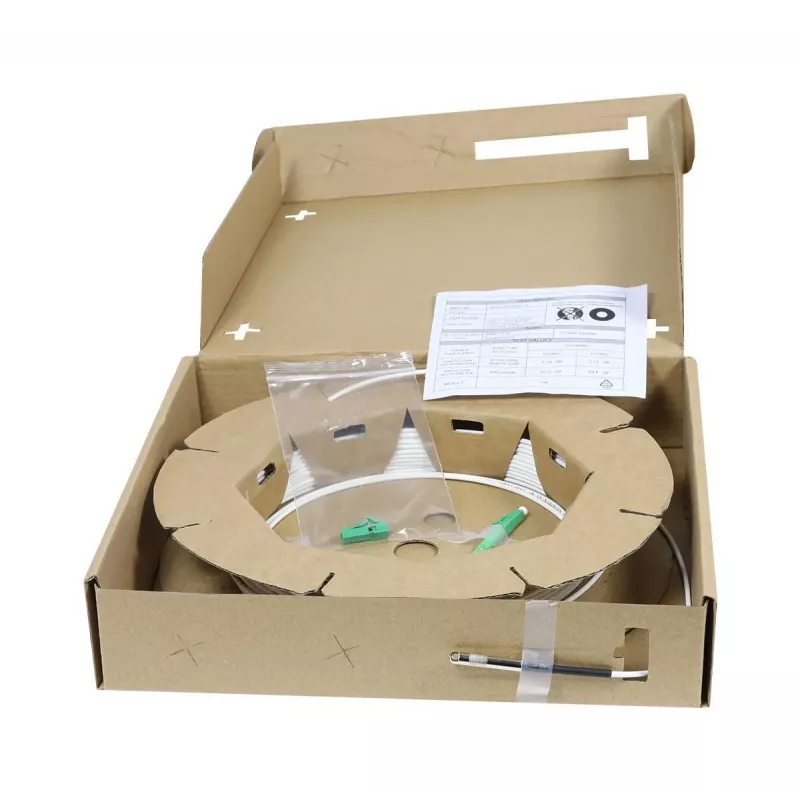

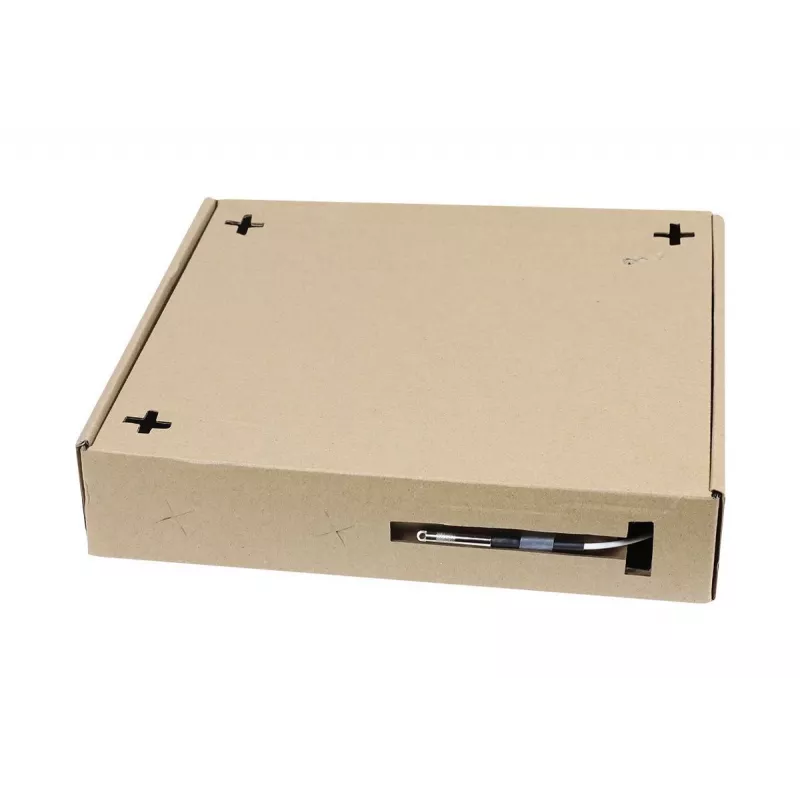

SYNERGY21 S218216 Cabo de patch de fibra ótica LC/APC para LC/APC OS2 monomodo, 90m, 9/125µm, G.657.A2, 2,2mm, guia de passagem

In data centers and telecom rooms, technicians need a reliable singlemode fiber link for patching between LC/APC ports over longer distances. This SYNERGY21 patch cable delivers a 90-meter simplex OS2 connection with angled physical contact connectors, ensuring low back reflection and stable performance in high-density fiber environments.

Key specifications

• Length: 90 m
• Fiber type: Singlemode OS2, 9/125 µm, ITU-T G.657.A2 bend-insensitive
• Connectors: LC/APC to LC/APC, simplex
• Cable diameter: 2.2 mm
• Integrated pulling aid for easy installation

Why choose it

The G.657.A2 fiber allows tighter bends without signal loss, ideal for crowded patch panels. APC polish minimizes reflectance, critical for high-speed and RF-over-fiber applications. The pulling aid simplifies routing through conduits and cable managers.

Ideal use cases

• Connecting switches, routers, or media converters with LC/APC ports
• Long-distance patching in data centers or campus networks
• FTTH (Fiber to the Home) distribution points

Good to know

This cable is intended for indoor use. It is a single fiber (simplex) assembly, so one cable per direction is required for duplex links.
