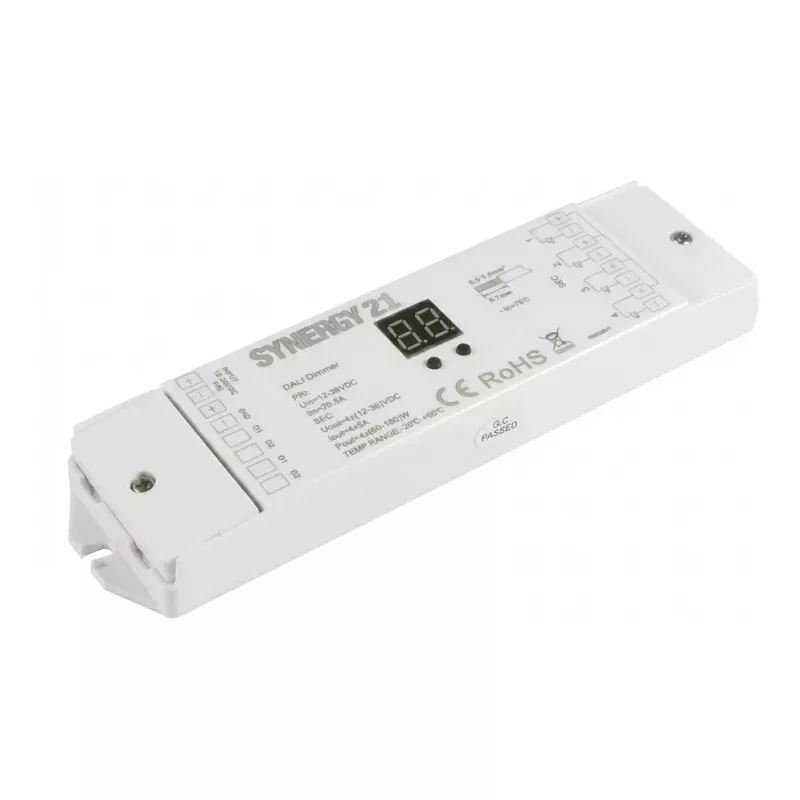

SYNERGY21 Série LED EOS 07 Controlador DALI Slave 1~4/4 High Power

The SYNERGY21 LED Serie EOS 07 DALI Controller Slave is a high-power, 4-channel constant voltage LED driver designed for professional lighting control systems. It operates as a DALI slave device (DT6) and is ideal for dynamic lighting installations requiring precise dimming and individual addressability per channel.

Advantages

This controller offers seamless integration into DALI networks, enabling independent control of up to four LED channels. With a wide dimming range from 0.1% to 100%, it ensures smooth and flicker-free lighting transitions. The robust protection features (overload, short circuit, over temperature) guarantee reliable operation in demanding environments.

Suitable for

• Commercial lighting systems (offices, retail, hospitality)
• Architectural accent lighting
• Stage and event lighting
• Smart building automation

Key specifications

• Product Type: DALI LED Controller Slave
• Control Protocol: DALI (Digital Addressable Lighting Interface)
• DALI Device Type: DT6 (Constant Voltage LED Driver)
• Input Voltage: 12-24V DC
• Output Voltage: 12-24V DC (Constant Voltage)
• Output Channels: 4
• Max Output Current per Channel: 5A
• Max Total Output Current: 20A
• Max Output Power (12V): 240W (4 x 60W)
• Max Output Power (24V): 480W (4 x 120W)
• DALI Addresses: 4 (one per channel)
• Dimming Range: 0.1% - 100%
• Protection: Overload, Short Circuit, Over Temperature
• Operating Temperature: -20°C to +50°C
• Connection: Screw Terminals
• Housing Material: PC Plastic
• IP Rating: IP20
• Certifications: CE, RoHS

Recommendations

For optimal performance, pair with a compatible DALI master controller and use constant voltage LED strips or modules rated for 12-24V DC. Ensure proper ventilation and adhere to local electrical codes during installation.
