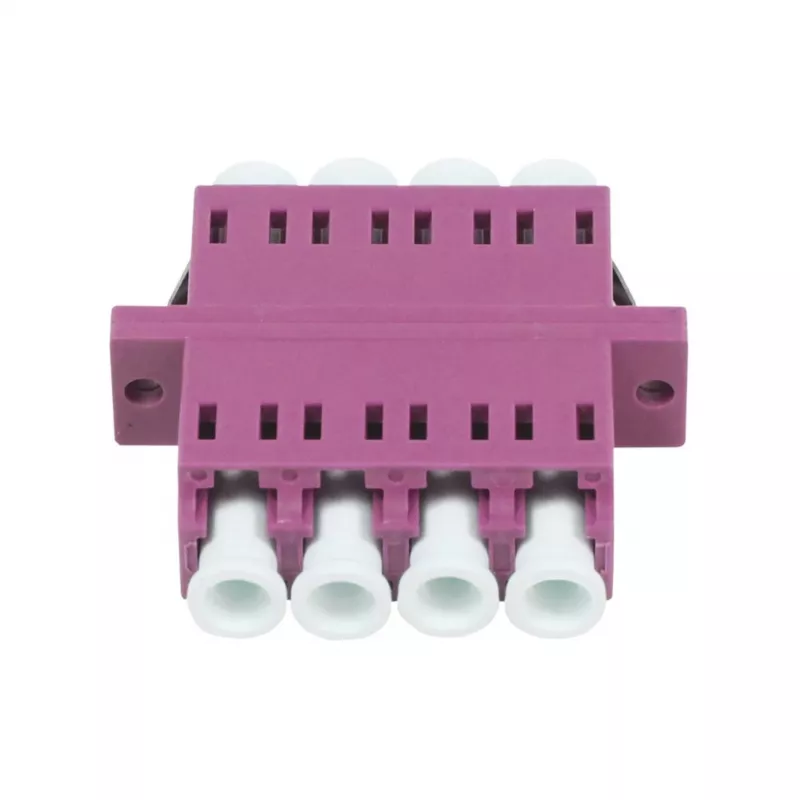

Synergy 21 Acoplador de fibra ótica LC-LC 50/125µm multimodo OM4 violeta erika quad PVC com flange

The Synergy 21 S215691 is a high-performance fiber optic coupler designed for reliable connections in multimode networks. Featuring LC female to LC female ports in a quad configuration, this adapter supports 50/125µm OM4 fiber and is housed in a durable PVC body with a flanged mounting design. The Erika violet color ensures easy identification in dense cabling environments.

Advantages

Low insertion loss (<0.2 dB typical) and high return loss (>30 dB) ensure minimal signal degradation. Zirconia ceramic ferrules provide precise alignment and long mating durability (>500 cycles). The flanged design allows secure panel mounting, while the compact quad port layout saves space.

Suitable for

• High-speed data networks (10/40/100 Gigabit Ethernet)
• Storage Area Networks (SAN)
• Local Area Networks (LAN)
• Data centers and server rooms
• Fiber optic patch panels and enclosures

Key specifications

• Connector type: LC female to LC female
• Fiber mode: Multimode (50/125µm)
• OM grade: OM4
• Number of ports: 4 (Quad)
• Color: Erika violet
• Mounting: Flanged
• Housing material: PVC
• Insertion loss: <0.2 dB typical
• Return loss: >30 dB typical
• Operating temperature: -20°C to +70°C
• Storage temperature: -40°C to +85°C
• Mating durability: >500 cycles
• Ferrule material: Zirconia ceramic
• Compliance: RoHS, REACH

Recommendations

For optimal performance, pair with OM4 patch cables and clean connectors before mating. Suitable for use in structured cabling systems requiring high bandwidth and low latency.
