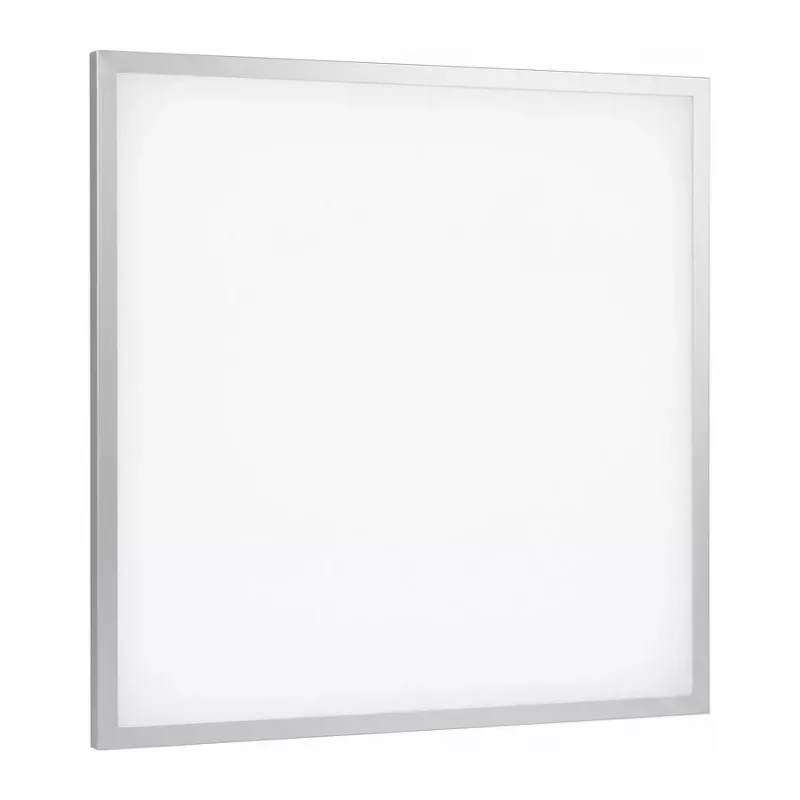

SYNERGY21 Synergy 21 Painel LED Retroiluminado 620x620 mm WW/NW V4 PRO Branco UGR

The SYNERGY21 Synergy 21 LED Backlit Panel is a high-quality lighting solution designed for professional environments. With its slim 620x620 mm form factor, this panel delivers uniform, glare-free illumination ideal for offices, schools, and commercial spaces. The V4 PRO version offers selectable color temperature (3000K/4000K) and a high luminous flux of 4400 lumens, ensuring optimal lighting conditions.

Advantages

This LED panel combines energy efficiency with superior light quality. The UGR<19 rating minimizes discomfort glare, enhancing visual comfort. Dimmable functionality allows flexible brightness control, while the long 50,000-hour lifespan reduces maintenance costs. The white aluminum frame and PMMA diffuser provide a clean, modern look.

Suitable for

• Office ceilings with T-bar grid systems
• Conference rooms and meeting areas
• Educational institutions and libraries
• Retail and commercial spaces
• Healthcare facilities requiring low glare

Key specifications

• Product Type: LED Backlit Panel
• Dimensions: 620 x 620 mm
• Power Consumption: 40W
• Luminous Flux: 4400 lm
• Color Temperature: Selectable 3000K (WW) / 4000K (NW)
• UGR: <19
• Input Voltage: AC 220-240V
• CRI: >80 Ra
• Beam Angle: 120°
• Dimmable: Yes
• Lifespan: 50,000 hours (L70/B50)
• Frame Color: White
• Installation: Recessed (T-bar ceiling)
• Material: Aluminum frame, PMMA diffuser
• IP Rating: IP20 (Front), IP40 (Back)
• Operating Temperature: -20°C to +40°C
• Power Factor: >0.9
• Light Distribution: Direct
• Driver: External LED Driver
• Certification: CE, RoHS

Recommendations

For best results, install in standard T-bar ceiling grids. Ensure proper ventilation for the external driver. Compatible with standard dimmers for LED loads.
