Tampa de E/S Supermicro MCP-260-00046-0N Midi Tower

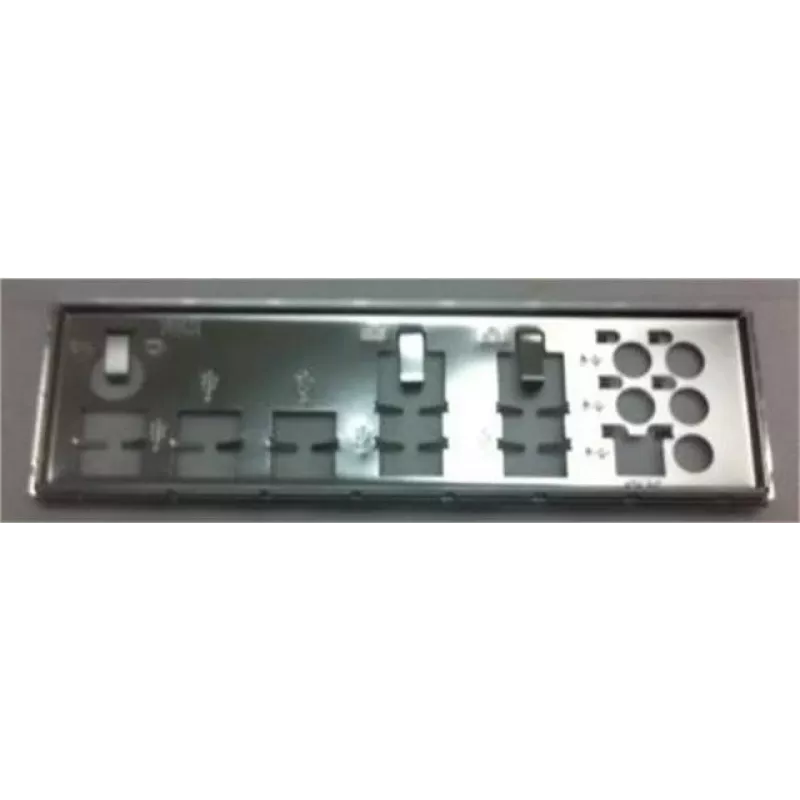

The Supermicro MCP-260-00046-0N is a metal I/O shield designed for Midi Tower cases. It provides a precise cutout pattern and integrated EMI gasket to align and seal the rear motherboard ports, ensuring correct port access and reduced electromagnetic interference. Supplied as a single unit, this I/O shield is compatible with Supermicro chassis that accept the C7P67 or X9SRA standard layout.

Advantages

Made from durable metal with an integrated EMI gasket, the I/O shield offers a secure fit and helps minimize electromagnetic interference. The precise cutouts match the C7P67/X9SRA port arrangement for straightforward installation and reliable alignment with the motherboard rear I/O. Supplied as one piece, it is ready for immediate replacement or installation in compatible Midi Tower cases.

Suitable for

• Replacing a damaged or missing rear I/O shield in a Midi Tower case
• Building or upgrading systems using motherboards with the C7P67 or X9SRA rear I/O layout
• Maintaining EMI protection and correct port alignment in Supermicro-compatible chassis

Key specifications

• Brand: Supermicro
• Manufacturer part number (MPN): MCP-260-00046-0N
• EAN: 0672042091218
• Form factor: I/O shield for Midi Tower
• Compatibility: Standard I/O layout for C7P67 or X9SRA
• Material: Metal with integrated EMI gasket>

How to use

Align the I/O shield with the rear cutout of the Midi Tower case so the port openings match the motherboard rear I/O. Press the shield into the case until it snaps or seats securely, making sure the EMI gasket contacts the case to provide shielding. Install the motherboard so its rear ports pass through the shield openings and verify all ports are accessible and properly aligned.

Recommendations

Install the MCP-260-00046-0N before mounting the motherboard to ensure correct alignment. Handle the metal shield carefully to avoid bending the cutouts, and confirm the EMI gasket is seated to maintain interference protection.
