Tampa para interruptor/tomada de superfície JUNG LS 582 A WW — Branco, Duroplástico, 81×47×152 mm

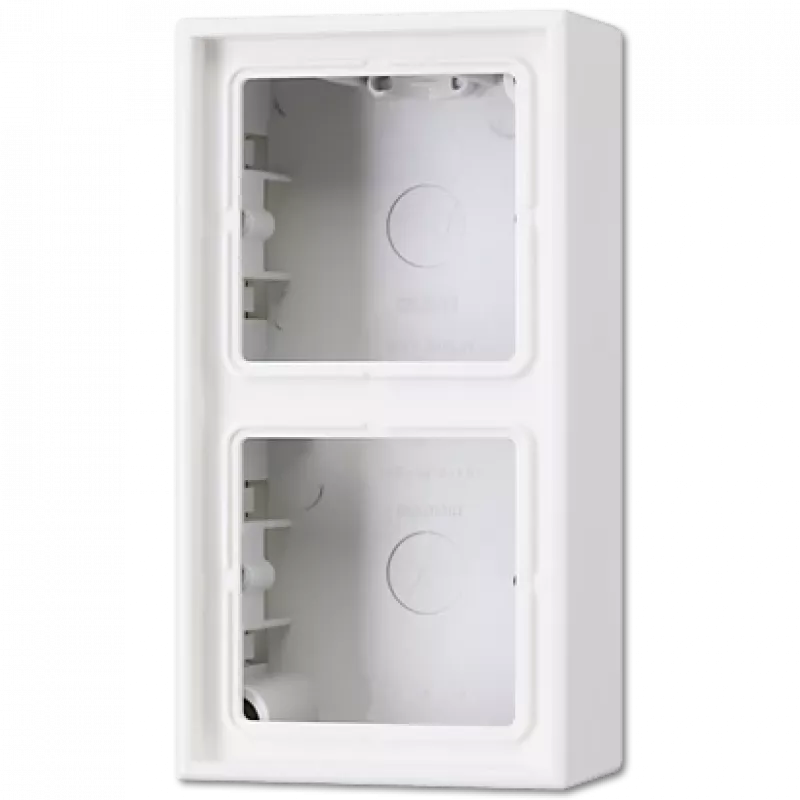

JUNG LS 582 A WW is a surface-mounted switch and socket cover in white Duroplast, designed to house two inserts from the LS range. With external dimensions of 152 × 81 × 47 mm, this enclosure allows installation where flush mounting is not possible. The unit includes an integrated frame and a non-flammable earth/ground plate, providing a stable, insulating housing for switches, sockets or control modules in residential and light commercial environments.

Advantages

The Duroplast construction delivers a durable and impact-resistant surface that resists discoloration and provides long-term electrical insulation. The integrated frame simplifies alignment and finishing around two-gang LS inserts, while the non-flammable ground plate improves safety by offering a reliable earthing connection. Its compact external dimensions make it suitable for tight surface-mounted installations where space is limited.

Suitable for

Key specifications

How to use

Mount the cover onto a flat surface using appropriate screws and wall plugs for the substrate. Fit the LS inserts into the integrated frame and secure them according to the insert manufacturer’s instructions. Connect the supply and earth conductors to the installed modules and to the non-flammable ground plate, ensuring power is switched off during installation. After wiring, attach the cover and verify mechanical stability and correct operation of the installed devices.

Recommendations

Use appropriate screw types and anchors for the mounting surface and follow local electrical regulations. Avoid mounting in locations with direct water exposure unless additional sealing measures are applied. For installations near heat sources or outdoors, confirm material suitability and consider additional protective measures.
