Tannoy CVS 601-BK altifalante de teto coaxial 6,5" para aplicações de instalação (preto)

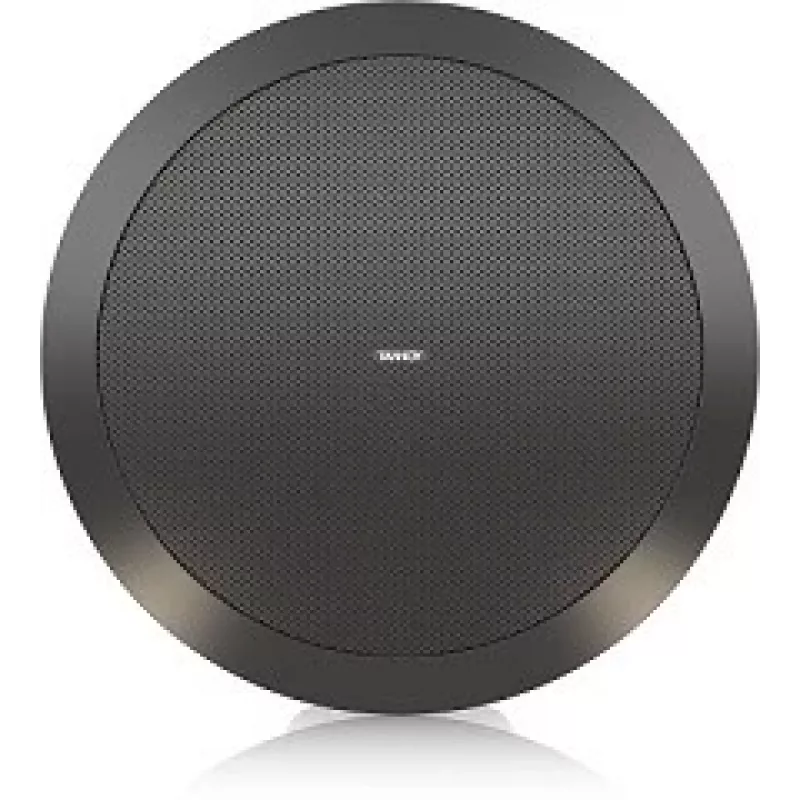

The Tannoy CVS 601-BK is a high-performance 6.5-inch coaxial ceiling loudspeaker designed for professional installed sound applications. Engineered for exceptional audio clarity and reliability, this speaker delivers full-range sound with a wide 90-degree conical dispersion, making it ideal for commercial environments such as retail spaces, restaurants, offices, and conference rooms. The black finish (RAL 9004) blends seamlessly with most ceiling designs.

Advantages

• Superior sound quality with a 6.5" polypropylene woofer and 0.75" soft dome tweeter
• Wide 90° conical dispersion ensures even coverage across the listening area
• Easy installation with a 220mm cutout and locking 4-pin Euroblock connector
• IP44 front rating protects against dust and water splashes
• Versatile 100V/70V line transformer with multiple tap settings for distributed audio systems

Suitable for

• Commercial installations: retail stores, restaurants, bars, hotels
• Corporate environments: offices, meeting rooms, lobbies
• Educational facilities: classrooms, lecture halls
• Public spaces: museums, galleries, airports

Key specifications

• Speaker Type: Coaxial Ceiling Loudspeaker
• Woofer: 6.5" (165 mm) Polypropylene
• Tweeter: 0.75" (19 mm) Soft Dome
• Frequency Response (-10 dB): 68 Hz - 20 kHz
• Power Handling: 40 W RMS, 160 W Peak
• Impedance: 8 Ohms
• Transformer Taps: 100V: 40W, 20W, 10W; 70V: 40W, 20W, 10W, 5W
• Sensitivity: 90 dB (1W/1m)
• Maximum SPL: 116 dB (Peak)
• Dispersion: 90° Conical
• Cutout Diameter: 220 mm (8.66")
• Mounting Depth: 225 mm (8.86")
• Colour: Black (RAL 9004)
• Enclosure Material: ABS
• Grille Material: Powder Coated Perforated Steel
• Connectivity: Locking 4-pin Euroblock Connector
• IP Rating: IP44 (Front)

Recommendations

For optimal performance, pair the CVS 601-BK with a compatible amplifier and ensure proper ceiling cutout dimensions. Ideal for 100V line systems in commercial audio installations.
