Tannoy QCI 3 altifalante de teto full-range de 3 vias, 6,5" LF, 40W RMS, 8 Ohm, 88dB, dispersão de 90°, preto

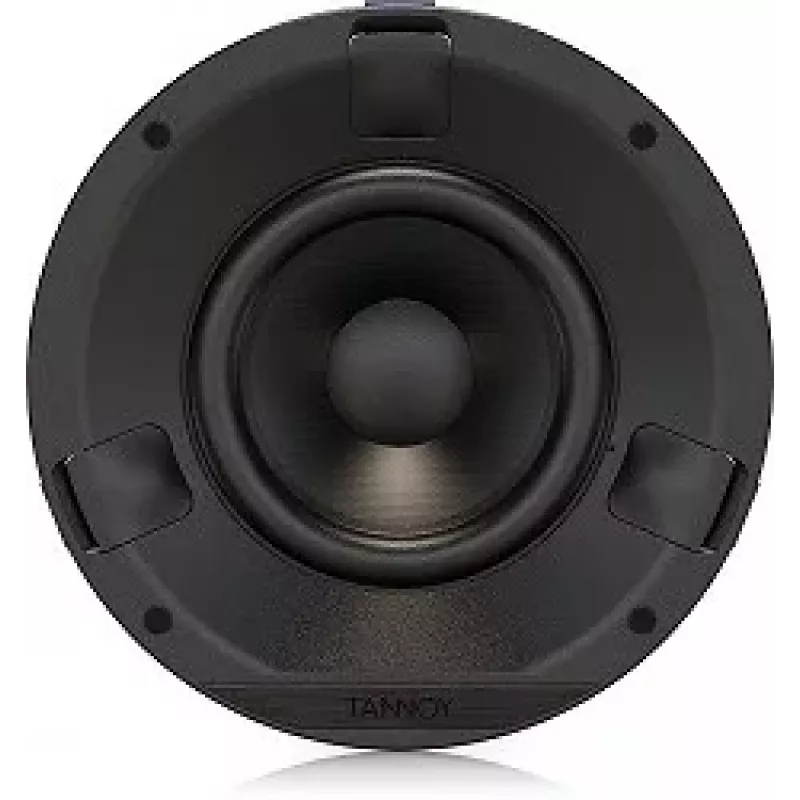

The Tannoy QCI 3 is a high-quality 3-way full-range ceiling loudspeaker designed for professional installation applications. Featuring a 6.5" polypropylene cone LF driver, a 2" paper cone MF driver, and a 0.75" soft dome HF driver, this speaker delivers clear and balanced audio across the frequency range of 80 Hz to 20 kHz. With a power handling of 40W RMS (160W peak) and a sensitivity of 88 dB, it is suitable for a variety of commercial and residential environments.

Advantages

Exceptional sound quality in a discreet ceiling-mounted design. The 90° conical dispersion ensures even coverage, while the self-aligning clamps make installation quick and secure. The paintable magnetic grille allows the speaker to blend seamlessly with any decor.

Suitable for

• Commercial installations such as offices, retail spaces, and restaurants
• Residential multi-room audio systems
• Background music and paging applications

Key specifications

• Speaker Type: Ceiling Loudspeaker
• Configuration: 3-Way Full Range
• LF Driver: 6.5" (165 mm) Polypropylene Cone
• MF Driver: 2" (50 mm) Paper Cone
• HF Driver: 0.75" (19 mm) Soft Dome
• Frequency Response (-10 dB): 80 Hz - 20 kHz
• Power Handling (RMS): 40 W
• Power Handling (Peak): 160 W
• Nominal Impedance: 8 Ohms
• Sensitivity (1W/1m): 88 dB
• Dispersion Angle: 90° Conical
• Crossover Type: Passive, 2nd Order LF, 3rd Order HF
• Mounting System: Self-Aligning Clamps
• Cutout Diameter: 200 mm (7.87")
• Overall Diameter: 230 mm (9.06")
• Mounting Depth: 100 mm (3.94")
• Grille: Perforated Steel, Paintable, Magnetic
• Connectors: Gold-Plated Spring Terminals

Recommendations

For optimal performance, pair the QCI 3 with a compatible amplifier rated for 8 Ohm loads. Ensure the ceiling cutout is precisely 200 mm for proper fit. The speaker is designed for indoor use only.
