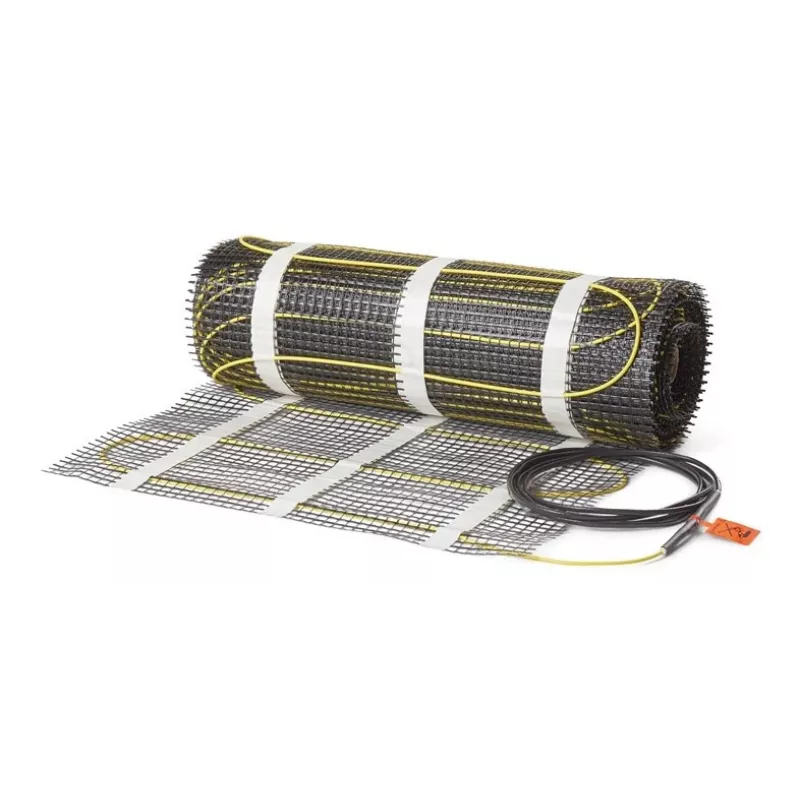

Tapete elétrico de aquecimento DEVImat DTIR-150 150 W/m² 5,0 m² 750 W 230 V

The DEVImat DTIR-150 electric heating mat is a high-quality underfloor heating solution designed for efficient and comfortable warmth. With a power output of 150 W/m² and covering an area of 5.0 m², this mat delivers a total of 750 W, making it ideal for bathrooms, kitchens, and living areas. The twin conductor cable ensures minimal electromagnetic field, and the self-adhesive mesh simplifies installation under tile, stone, laminate, and wood floors.

Advantages

Easy to install with self-adhesive mesh; twin conductor cable reduces EMF; IPX7 rating allows installation in wet areas; compatible with most floor coverings; durable construction with CE and SEMKO approvals.

Suitable for

• Underfloor heating in bathrooms, kitchens, hallways, and living rooms
• Installation under ceramic tile, natural stone, laminate, and engineered wood
• New construction and renovation projects

Key specifications

• Type: Electric Heating Mat
• Series: DEVImat DTIR-150
• Power Output per m²: 150 W/m²
• Heated Area: 5.0 m²
• Total Power Output: 750 W
• Operating Voltage: 230 V
• Mat Width: 0.5 m
• Mat Length: 10 m
• Cable Type: Twin Conductor
• Cable Diameter: Approx. 3.5 mm
• Cold Lead Length: 4 m
• IP Rating: IPX7
• Installation Type: Self-adhesive mesh
• Application: Under tile, stone, laminate, and wood floors
• Thermostat Required: Yes (external)
• Approvals: CE, SEMKO
• Max Conductor Temperature: 90 °C
• Minimum Installation Temperature: -5 °C

Recommendations

For optimal performance and safety, always use a compatible floor heating thermostat. Ensure the subfloor is clean and dry before installation. Consult a qualified electrician for electrical connections.
