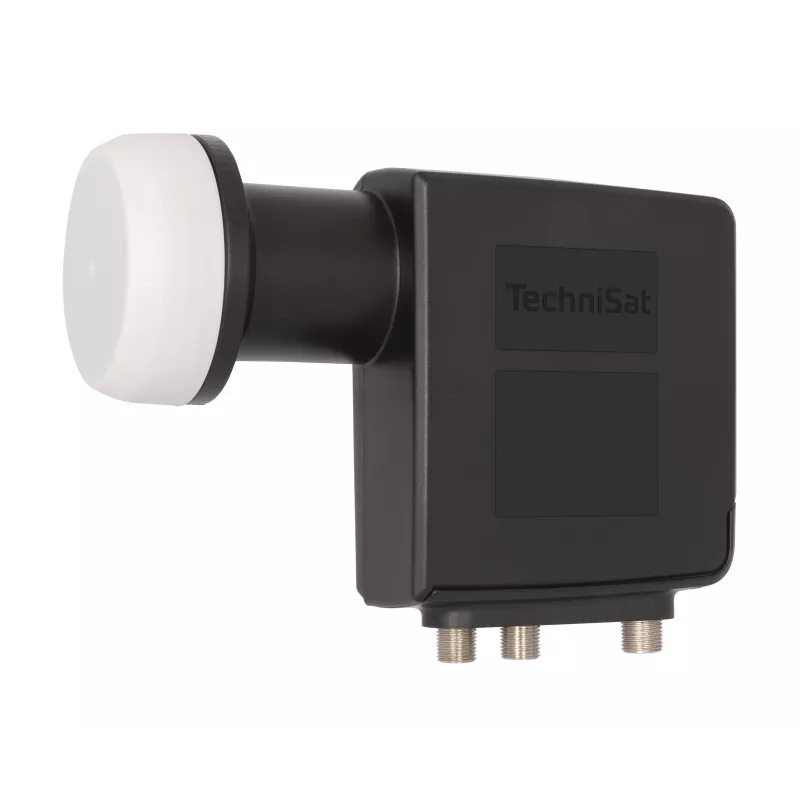

TechniSat Universal SCR 8+2 LNB - Conversor para Antena Parabólica - Twin Legacy LNB / SCR

The TechniSat Universal SCR 8+2 LNB is a high-performance satellite antenna converter designed for modern multi-room installations. It combines 8 SCR (Single Cable Routing) user bands with 2 legacy outputs, allowing simultaneous connection of up to 8 SCR-compatible receivers and 2 traditional satellite receivers via a single coaxial cable. This LNB ensures efficient signal distribution with minimal cabling, making it ideal for apartments, hotels, or any multi-user environment.

Advantages

Simplifies installation by reducing the need for multiple cables; supports both Unicable I (EN50494) and DiSEqC 1.0 protocols; low noise figure of 0.1 dB for excellent signal quality; robust weather-protected housing for outdoor use.

Suitable for

• Multi-room satellite TV systems
• Installations with limited cable pathways
• Upgrading existing single or twin LNB setups
• Professional and DIY satellite installations

Key specifications

• LNB Type: Universal SCR (Single Cable Routing)
• SCR User Bands: 8
• Legacy Outputs: 2
• Input Frequency Range: 10.7 - 12.75 GHz
• Output Frequency Range: 950 - 2150 MHz
• Local Oscillator Frequency (Low Band): 9.75 GHz
• Local Oscillator Frequency (High Band): 10.6 GHz
• Noise Figure: 0.1 dB (typ.)
• Gain: 55 - 65 dB
• Feed Diameter: 40 mm
• Control Protocol: DiSEqC 1.0, EN50494 (Unicable I)
• Polarization Switching: 13V (Vertical), 18V (Horizontal)
• Band Switching: 0 kHz (Low Band), 22 kHz (High Band)
• Current Consumption: Max. 300 mA
• Operating Temperature Range: -30°C to +60°C
• Connector Type: F-type
• Weather Protection: Integrated housing

Recommendations

For optimal performance, use high-quality F-type connectors and ensure proper grounding. Compatible with all major satellite receivers supporting Unicable I or DiSEqC protocols.
