Teclado com fechadura de código Sygonix SY-3118492 IP65, montagem à superfície/encastrar com teclado iluminado

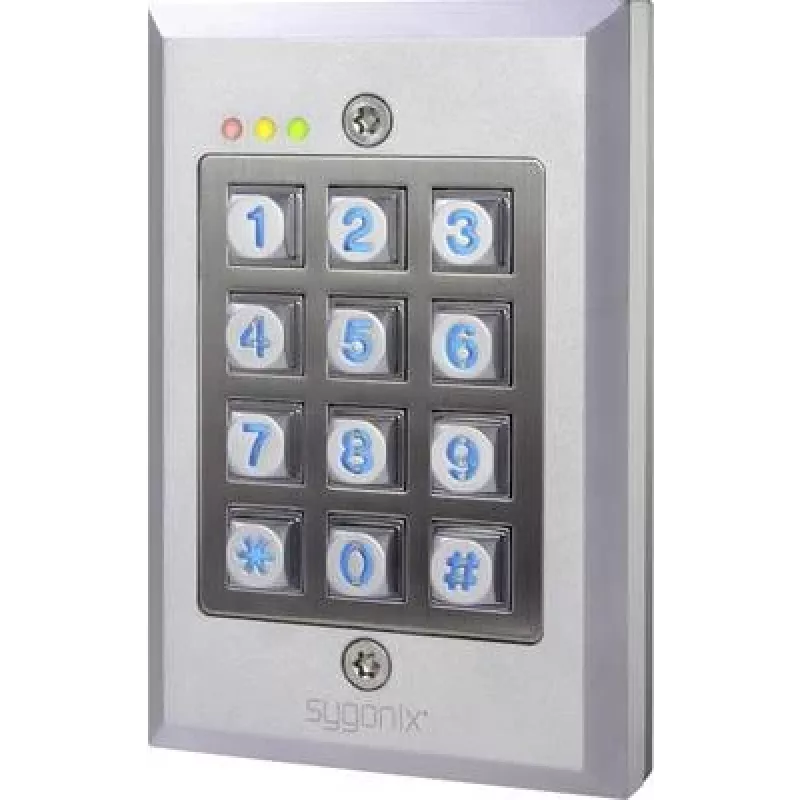

Access control unit with illuminated keypad for secure PIN-based entry, built for indoor and outdoor use. The IP65-rated zinc alloy housing withstands dust and water jets, while the backlit keypad ensures visibility in low light. Supports up to 2000 user codes with pulse or toggle output modes, making it suitable for doors, gates, and entry systems.

Advantages

Durable zinc alloy construction with IP65 protection for reliable operation in demanding environments. The illuminated keypad allows easy code entry at night or in dark areas. Flexible installation as surface-mounted or flush-mounted unit. Adjustable door opening time from 0 to 99 seconds and tamper alarm enhance security. Doorbell function adds convenience for visitors.

Suitable for

• Residential and commercial access control
• Indoor and outdoor entry points
• Doors, gates, and restricted areas

Key specifications

• Installation type: Surface-mounted, flush-mounted
• Protection class: IP65
• Keypad type: Illuminated numeric keypad
• User capacity: Up to 2000 PIN codes
• Operating voltage: 12 - 24 V DC
• Standby current: 30 mA
• Active current: 60 mA
• Relay output: 1x NO/NC contact, max 2 A / 24 V DC
• Housing material: Zinc alloy
• Operating temperature: -20 to +60 °C
• Operating humidity: 10 - 90 % RH (non-condensing)
• Output modes: Pulse mode, toggle mode
• Door opening time: Adjustable 0-99 seconds
• Security features: Tamper alarm
• Additional functions: Doorbell function

Recommendations

For reliable access control in exposed locations, pair this keypad with a suitable 12-24 V DC power supply and a fail-secure electric strike. Ensure the mounting surface is flat and clean for optimal sealing and tamper protection.
