Teclado gráfico TM70-A2K Paradox

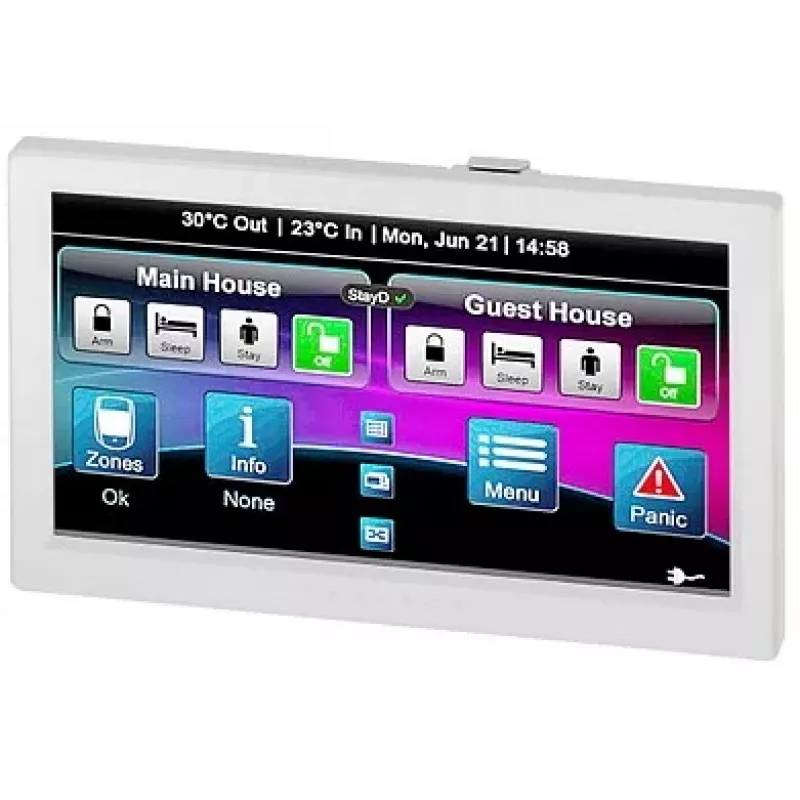

The Paradox TM70-A2K is a graphic keypad designed for use with Paradox security systems. Featuring a 7-inch color LCD touch screen with 800x480 resolution, it provides an intuitive icon-based interface for system control and monitoring. The keypad supports up to 8 HD camera live views (requires Paradox HD77/HD88 cameras) and is firmware upgradeable via SD card or InField. It includes one on-board input zone and one PGM output, and operates on 9-16 VDC with a maximum current consumption of 250 mA. The device is surface mountable and supports multi-language operation with adjustable brightness and auto-dimming.

Advantages

Large 7-inch color touch screen for easy navigation and control. Supports live camera viewing for enhanced security monitoring. Firmware upgradeable for future feature updates. Adjustable brightness with auto-dimming for optimal visibility in various lighting conditions.

Suitable for

• Paradox Spectra SP series
• Paradox Magellan MG5000/MG5050
• Paradox Digiplex EVO series

Key specifications

• Display: 7-inch color LCD touch screen, 800x480 pixels
• Compatibility: Paradox Spectra SP, Magellan MG5000/MG5050, Digiplex EVO
• Input Zones: 1 (on-board)
• PGM Outputs: 1 (on-board)
• Power Supply: 9-16 VDC
• Current Consumption: 250 mA (max)
• Operating Temperature: 0°C to 49°C (32°F to 120°F)
• Mounting: Surface mount
• SD Card Slot: Yes (for firmware updates & photos)
• Interface: Digiplex bus
• User Interface: Icon-based menus
• Firmware Upgradeable: Yes (via SD card or InField)
• Multi-language Support: Yes
• Adjustable Brightness: Yes (with auto-dimming)
• Live View: Up to 8 HD cameras (requires Paradox HD77/HD88)
• Colour: White

Recommendations

For optimal performance, ensure compatibility with your Paradox control panel. Use a regulated 12 VDC power supply. For live camera viewing, install compatible Paradox HD77 or HD88 cameras.
