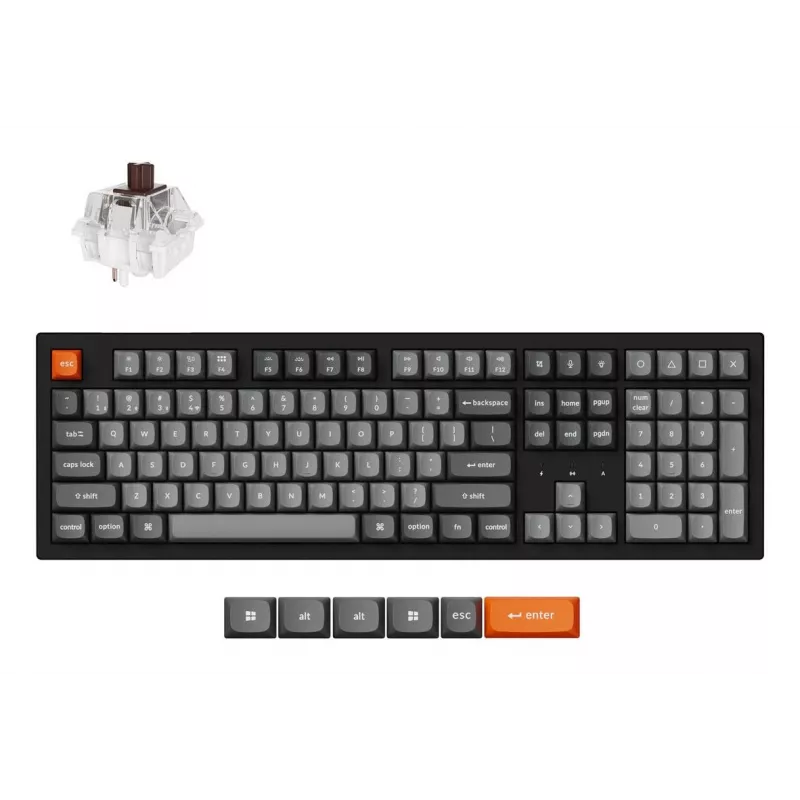

Teclado mecânico full-size Keychron K10 Max QMK — USB + RF Wireless + Bluetooth, 108 teclas, RGB, preto

Keychron K10 Max is a wireless custom mechanical keyboard with a full-size (100%) layout. It supports wired, 2.4 GHz RF, and Bluetooth 5.1 connections, and includes keycaps for both Windows and macOS. The keyboard is configurable via QMK firmware and the Keychron Launcher web app, and the hot-swappable version allows easy replacement of mechanical switches without soldering. The K10 Max features multiple layers of acoustic foam (IXPE, PET, EPDM) and a steel plate to improve typing sound, feel, and stability.

Advantages

The K10 Max provides versatile connectivity with 2.4 GHz wireless (1000 Hz polling), Bluetooth for up to three devices, and a wired USB mode. Programmability through open-source QMK and the Keychron Launcher enables key remapping, macros, and multiple saved layouts. Enhanced acoustic foams and a weighted steel plate deliver improved sound dampening and a stable typing experience. Hot-swappable sockets support most 3-pin and 5-pin MX-style switches, while Keychron Super switches offer long lifespan and strong backlight transmission. OSA-profile double-shot PBT keycaps and screw-in PCB stabilizers reduce wobble and resist wear.

Key specifications

• Layout: Full-size (100%) with numeric keypad
• Connectivity: Wired USB, 2.4 GHz RF (1000 Hz polling), Bluetooth 5.1 (multi-device)
• Firmware: QMK-compatible; configurable via Keychron Launcher web app
• Switches: Hot-swappable (3-pin & 5-pin MX-style) or preinstalled Keychron Super switches
• Keycaps: OSA profile double-shot PBT; includes Windows and macOS keycaps
• Sound/insulation: IXPE, PET, EPDM acoustic foam layers; steel plate; added weight for stability
• Stabilizers: Screw-in PCB-mounted stabilizers; supports third-party screw-in stabilizers
• Backlight: South-facing RGB with 22+ lighting modes; adjustable hue, saturation, brightness, speed
• MCU/Memory: ARM architecture MCU with 256 KB Flash
• Physical: Color — Black; language — US English layout

How to use

Connect the keyboard via USB for wired use, pair it to devices using Bluetooth 5.1 (up to three devices) for convenient switching, or use the 2.4 GHz dongle for low-latency wireless with 1000 Hz polling. Install and open the Keychron Launcher web app or use QMK tools to remap keys, create macros, and save layouts to the keyboard. If you have the hot-swappable model, remove keycaps and pull switches with an appropriate tool to replace them with compatible 3-pin or 5-pin MX-style switches. Adjust the keyboard angle using the three adjustable feet and change backlight settings directly or via the Launcher app.

Recommendations

Use the 2.4 GHz connection or wired mode for competitive gaming to minimize latency. Install third-party screw-in stabilizers and maintain double-shot PBT keycaps for long-term durability. When customizing switches, power off the keyboard and handle switches and stabilizers carefully to avoid damage to the PCB.
