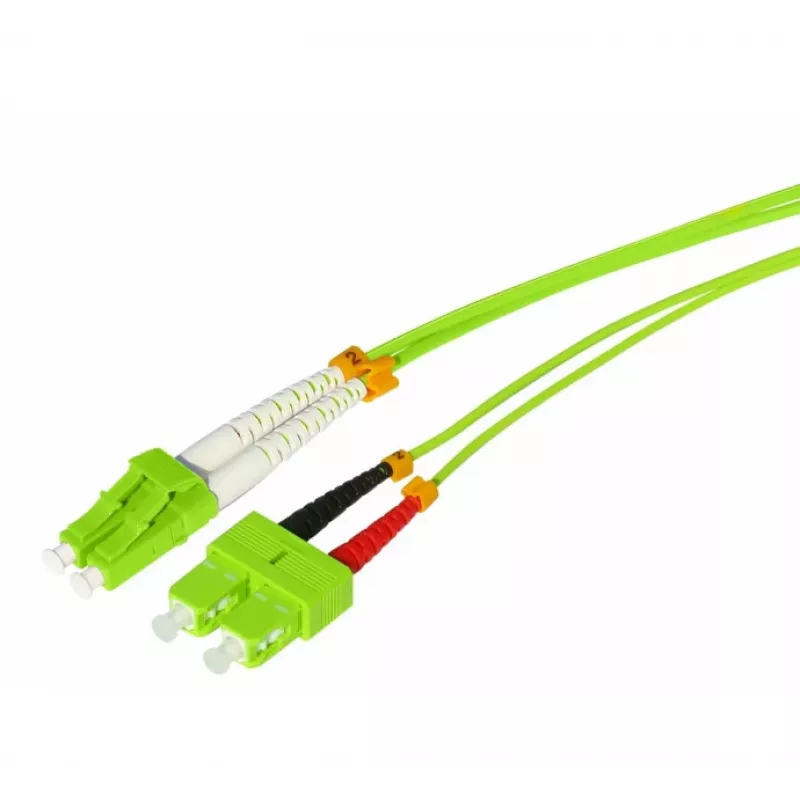

Tecline HD cabo de patch de fibra ótica OM5 50/125 µm multimodo LC duplex para SC duplex, verde-lima, 15,0 m 796LS15

This Tecline HD fibre optic patch cable stands out with OM5 wideband multimode fibre, supporting high-speed data transmission up to 400 Gbps over short distances. The lime green jacket provides high visibility in dense installations, while the duplex LC and SC connectors ensure reliable connections in data centres and enterprise networks.

Highlights

• OM5 fibre supports 40/100/200/400 Gbps Ethernet and Fibre Channel
• LC Duplex to SC Duplex connectors with A-B polarity
• 50/125 µm core/cladding diameter for multimode transmission
• Lime green HD jacket for easy identification and durability
• 15.0 m length for flexible reach in structured cabling

Full specifications

• Fibre type: Multimode OM5 (50/125 µm)
• Connector A: LC Duplex
• Connector B: SC Duplex
• Length: 15.0 m
• Colour: Lime green
• Number of fibres: 2
• Polarity: A-B
• Bandwidth (850 nm): 4700 MHz·km
• Bandwidth (953 nm): 2470 MHz·km
• Attenuation (850 nm): ≤ 2.3 dB/km
• Attenuation (1300 nm): ≤ 0.6 dB/km
• Supported protocols: Ethernet, Fibre Channel
• Supported data rates: 10GbE, 40GbE, 100GbE, 200GbE, 400GbE
• Application environment: Indoor
• Compliance: TIA-492AAAE, IEC 60793-2-10 Type A1a.4

Final note

Ideal for high-density fibre patching in data centres, this cable delivers consistent performance for modern high-speed networks.
