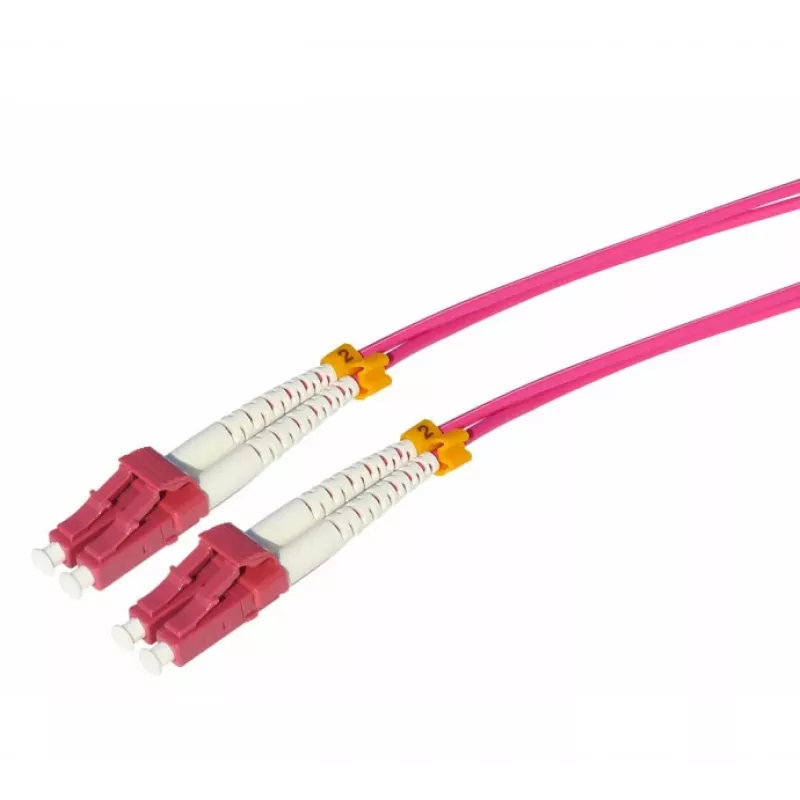

Tecline HD OM4 cabo de patch de fibra ótica multimodo, LC duplex para LC duplex, 50/125 µm, violeta-urze, 2,0 m 798LL02

In a high-density data center, every connection counts. The Tecline HD OM4 Multimode Fiber Patch Cable links LC Duplex ports on switches, servers, and patch panels with precision. Its 50/125 µm OM4 fiber supports 40GbE and 100GbE over short runs, while the LSZH jacket keeps emissions low in confined spaces. The heather violet colour aids quick identification among dense cabling.

Key specifications

• Fiber type: OM4 Multimode, 50/125 µm
• Connectors: LC Duplex to LC Duplex, UPC polish
• Cable length: 2.0 m
• Jacket: LSZH, heather violet
• Bandwidth: 4700 MHz·km @ 850 nm, 500 MHz·km @ 1300 nm
• Insertion loss: ≤ 0.3 dB per connector pair
• Return loss: ≥ 30 dB
• Standards: TIA/EIA-568-C.3, IEC 60793-2-10 Type A1a.3

Why choose it

This HD-series patch cable is built for high-performance networking. OM4 fiber extends reach for 10G, 40G, and 100G Ethernet, and the duplex LC connectors ensure a secure, low-loss link. The LSZH jacket reduces toxic smoke and corrosive gases in case of fire, making it suitable for enclosed equipment rooms.

Ideal use cases

• Data center interconnects between switches and servers
• High-speed backbone links in enterprise LANs
• Storage area networks (SAN) requiring reliable multimode fiber

Good to know

The cable is part of Tecline's HD line, designed for high-density patching environments. Its heather violet colour aligns with common OM4 identification schemes, simplifying cable management.
