Tela de projeção AVTEK Cinema Electric 240 — 16:9, largura visível 230 cm, diagonal 103,9 polegadas (240 x 200 cm)

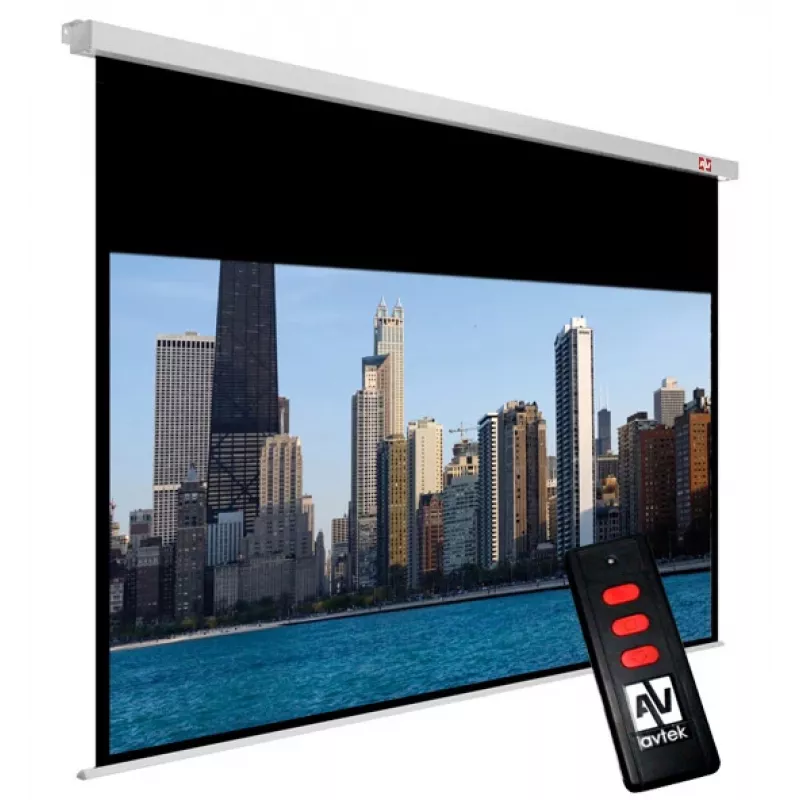

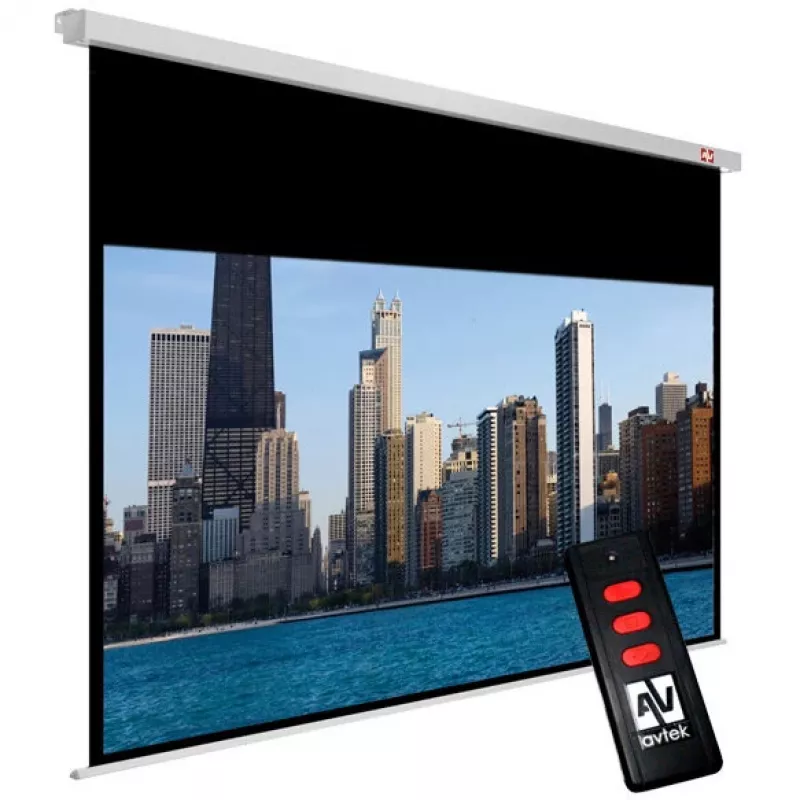

The Avtek International Cinema Electric 240 is a motorized projection screen with a white metal Magnum casing and a unique square cross-section designed for ceiling or wall mounting. The flat bottom of the casing makes it suitable for in-ceiling installations, while the lower bar is made of a hard material to protect the surface from creasing. The screen fabric features a black top and black borders to increase perceived contrast and allows positioning the viewing area at eye level.

Advantages

The motorized mechanism provides remote operation for convenient control. A rigid lower bar ensures a flat image and protects the fabric during use. Black masking at the top and along the sides improves perceived contrast and helps frame the projected image. The casing’s flat bottom is suitable for recessed ceiling installations while also allowing reliable wall mounting.

Suitable for

• Home theater rooms
• Conference and meeting rooms
• Classrooms and lecture halls
• Multi-purpose spaces requiring a motorized projection surface

Key specifications

• Overall size (Height x Width): 2000 x 2400 mm
• Image (viewable) dimensions: 2300 x 1294 mm
• Diagonal: 2.64 m (103.9")
• Aspect ratio: 16:9
• Colour: White casing with black top and borders
• Mounting: Ceiling or wall
• Operation: Motorized, remote control

How to use

Install the white metal Magnum casing horizontally on a ceiling or on a wall using appropriate fasteners for the mounting surface. If mounting in-ceiling, align the flat bottom of the casing to sit flush with the ceiling opening. Connect the motor to a power source according to the manufacturer’s wiring instructions and pair or program the remote control if required. Use the remote to extend and retract the screen; ensure the lower bar is unobstructed during movement to keep the fabric flat and crease-free.

Recommendations

For best image quality, use the screen with a projector matched to a 16:9 image area and position the projector so the image fills the 230 cm × 129.4 cm viewable area. Keep the lower bar and fabric clean and avoid contact with sharp objects. Secure mounting and correct alignment will ensure reliable motor operation and a flat projection surface.
