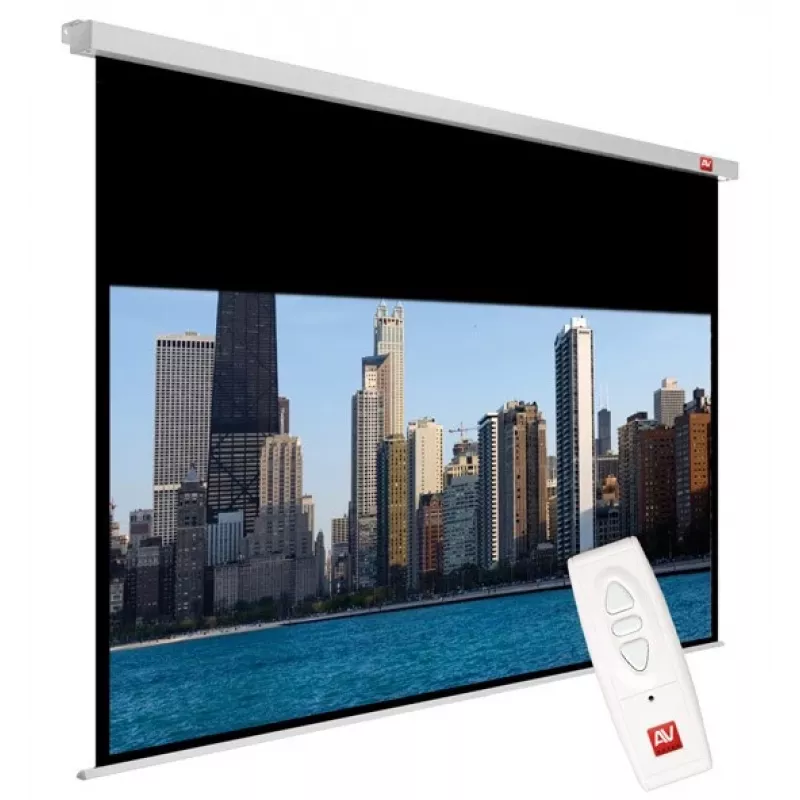

Tela de projeção AVTEK Electric Video Electric 270, 4:3, visível 195×260 cm, montagem no teto/parede, faixa preta inferior de 20 cm, bordas de 5 cm

The Avtek International Video Electric 270 is a motorized projection screen with a viewable width of 2.6 m and a viewable height of 1.95 m (native 4:3 aspect ratio). The casing is made of white metal with a unique square cross-section and a flat bottom designed for in-ceiling installations. The screen features a matt white projection surface with a gain of 1.0, black masking frames to increase perceived contrast, and a reinforced lower bar to protect the surface from creasing. The tubular motor (type 35-6/28) is built for intensive operation and the product supports both wired and wireless control; remote and receiver are included.

Advantages

The metal Magnum casing combines a distinctive square profile with a flat base suitable for flush ceiling mounting, while the hard lower bar prevents creasing of the projection surface. The matt white screen material with gain factor 1.0 delivers neutral image reproduction and black frames improve perceived contrast. Motorized operation with Plug&Play capability allows immediate use after connection, and included wired and wireless control options provide flexible installation and everyday operation.

Suitable for

• Video presentations in conference rooms and classrooms
• Home cinema setups with a 4:3 image source
• Wall- or ceiling-mounted projection installations

Key specifications

• Viewable width: 2.60 m
• Viewable height: 1.95 m (4:3)
• Overall size (H x W): 200 x 270 cm
• Projection surface: Matt White, gain 1.0
• Casing: White metal, square cross-section, flat bottom
• Lower bar: Hard material to prevent creasing
• Motor: Tubular type 35-6/28 for intensive operation
• Control: Wired and wireless “A-OK” model (remote and receiver included)
• Design: Black frames and black top for improved contrast and viewer-level positioning

How to use

Install the casing on a wall or mount it into the ceiling using the flat bottom for a flush fit; follow local mounting standards and use appropriate fasteners for the mounting surface. Connect the motorized unit to mains power and the screen is ready to use with Plug&Play functionality. Use the included remote control or wired receiver to lower and raise the screen to the desired position and adjust the viewing height as needed.

Recommendations

For best image quality, place the projector so the projected image fills the matt white surface without overspill beyond the black masking frames. Avoid touching the projection surface and store the screen rolled up when not in use. For ceiling installations, ensure the casing is fixed to a load-bearing structure and check electrical connections according to local regulations.
