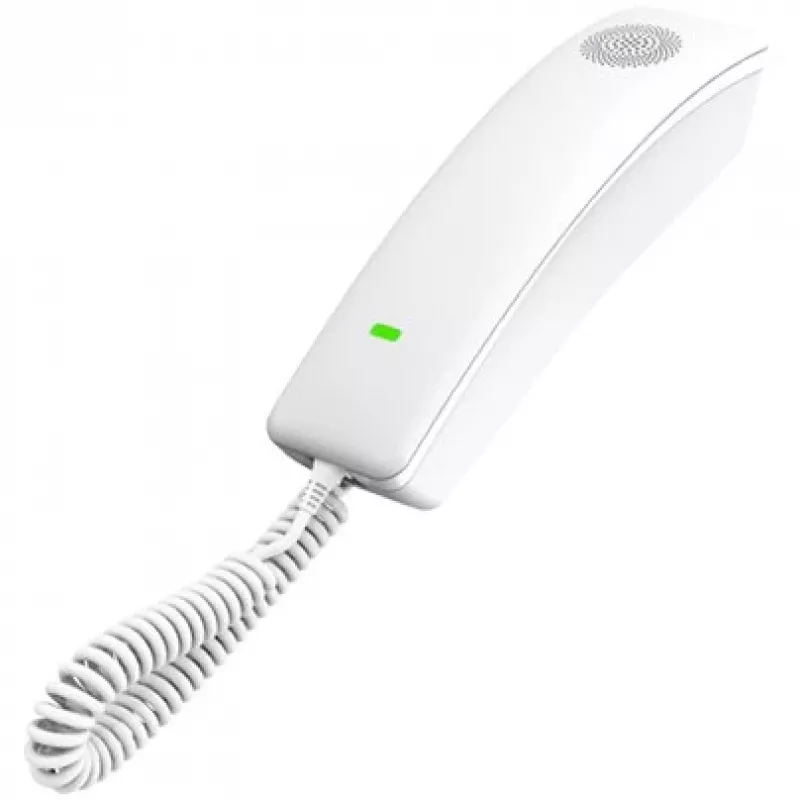

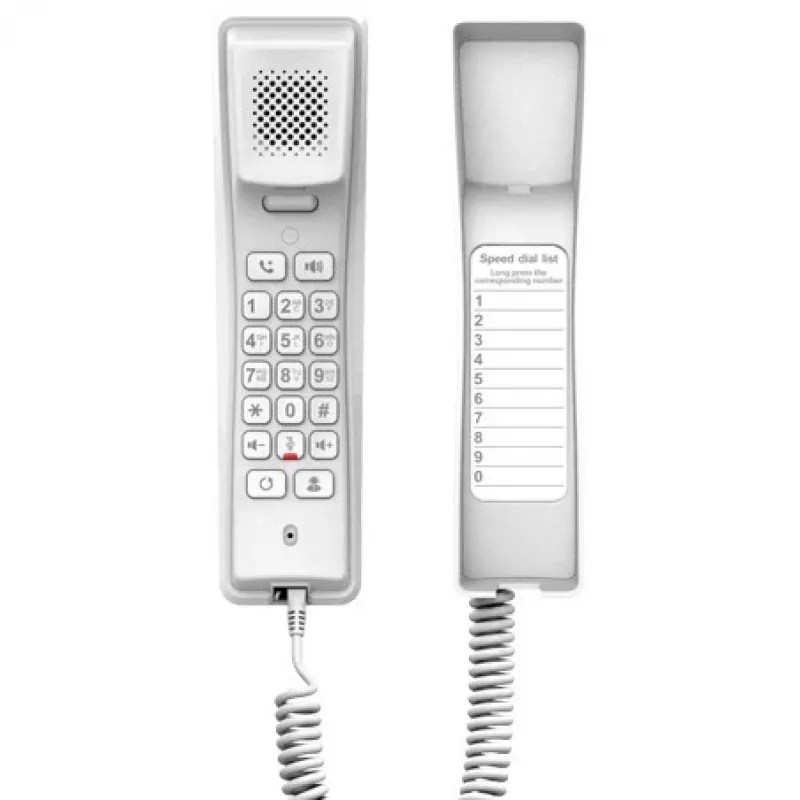

Telefone IP Fanvil H2U-W branco 2 linhas

The Fanvil H2U Compact IP Phone is a small, white 2-line IP phone with a wired handset and HD audio support. Designed for flexible deployment, it supports Power over Ethernet (PoE) or external power supply, and can be used in desktop or wall-mounted configurations. The H2U includes 10 speed dial keys, one programmable DSS key, and compatibility with common provisioning and management methods such as TFTP/HTTP/HTTPS/DHCP. It supports multiple codecs including G.711a/u, G.722, G.726, G.729A, iLBC and OPUS to ensure clear audio in varied environments.

Advantages

The Fanvil H2U combines a compact footprint with essential business telephony features: two SIP lines, ten speed-dial keys and a programmable DSS key for quick access. It offers wideband audio on both handset and speaker for improved speech clarity, and supports flexible power options (PoE or external adapter) plus both desktop and wall-mounted installation. Centralized provisioning and support for common DTMF modes simplify large-scale deployment and management.

Suitable for

• Hotel rooms and reception desks
• Classrooms and school offices
• Hospital patient rooms and nurse stations
• Small retail stores and supermarkets
• Residential installations and home offices

Key specifications

• Lines: 2 SIP accounts
• Speed dial / DSS: 10 speed dial keys, 1 programmable DSS key
• Audio codecs: G.711a/µ, G.722, G.726, G.729A, iLBC, OPUS
• Audio: Wideband codec support (G.722, OPUS) for handset and speaker
• Power: PoE and external power supply support
• Mounting: Desktop and wall-mounted modes
• Management: TP/TFTP/HTTP/HTTPS/DHCP provisioning
• Colour: White

How to use

Connect the Fanvil H2U to your network using an Ethernet cable; if PoE is available, the phone will receive power over the network, otherwise connect the external power adapter. Register each SIP account using your VoIP provider or PBX credentials through the web management interface or supported provisioning server. Configure speed dial keys and the programmable DSS key via the phone’s settings. Choose desktop placement or mount the unit on a wall bracket according to installation needs.

Recommendations

Place the H2U in locations where a compact phone with clear audio and simple key access is needed. Use OPUS or G.722 codecs where network bandwidth and endpoint support allow for improved voice quality. For multi-device ringing, enable SIP hotspot on the server so incoming calls ring all extension devices simultaneously.
