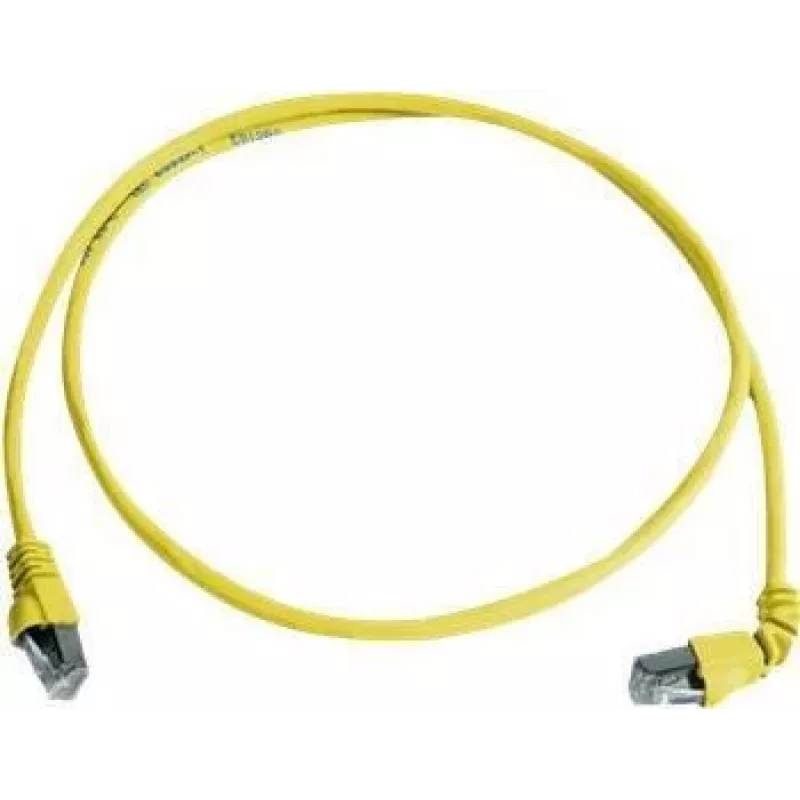

Telegärtner 100008019 Cabo patch CAT 6a S/FTP, RJ45, 1 m, amarelo, LSZH, ignífugo

Connect high-speed network devices in offices or data centers with this Telegärtner CAT 6a patch cable. The yellow 1-meter cable handles 10 Gigabit Ethernet and features S/FTP shielding for reliable signal integrity in electromagnetically noisy environments.

Key specifications

• Cable length: 1 m
• Cable standard: CAT 6a
• Cable shielding: S/FTP (PiMF)
• Connector type: RJ45 (8P8C)
• Data transfer rate: 10 Gbps
• Bandwidth: 500 MHz
• Colour: Yellow
• Jacket material: LSZH (halogen-free, flame retardant)
• Conductor material: Bare copper, AWG 26/7 stranded
• Bend protection boot

Why choose it

This cable meets CAT 6a performance standards, supporting 10GBASE-T up to 500 MHz. The S/FTP shielding with individually foiled pairs and overall braid minimizes crosstalk and EMI. The LSZH jacket emits low smoke and no halogen in case of fire, improving safety in enclosed spaces. The bend protection boot extends connector life by preventing cable kinks at the plug.

Ideal use cases

• Connecting servers and switches in data centers
• Linking workstations to 10G network outlets
• Structured cabling in offices with high EMI
• Use in buildings with strict fire safety requirements

Good to know

The cable is flame retardant and halogen-free, with an operating temperature range of -20 to +60 °C. It complies with ISO/IEC 11801, EN 50173, and TIA/EIA-568-C.2 standards. The gold-plated RJ45 connectors ensure reliable contact and corrosion resistance.
