Telegärtner Acoplamento ST Multimodo Simplex com bucha de bronze fosforoso, caixa metálica, montagem de um furo, Z64 J08011A0003

In fibre optic installations, a reliable connection point is essential to maintain signal integrity and ease of maintenance. This Telegärtner ST coupler provides a stable junction for multimode ST connectors, ensuring low insertion loss and robust mechanical performance in patch panels or wall outlets.

Who is it for

Network installers and maintenance technicians working with multimode fibre optic systems who need a durable, panel-mountable ST adapter.

Main features

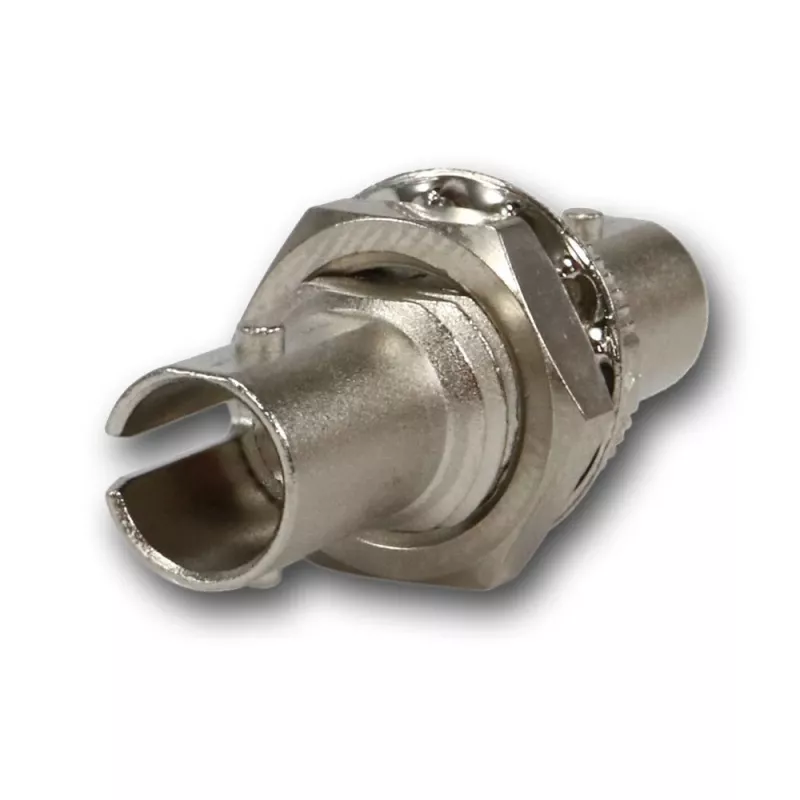

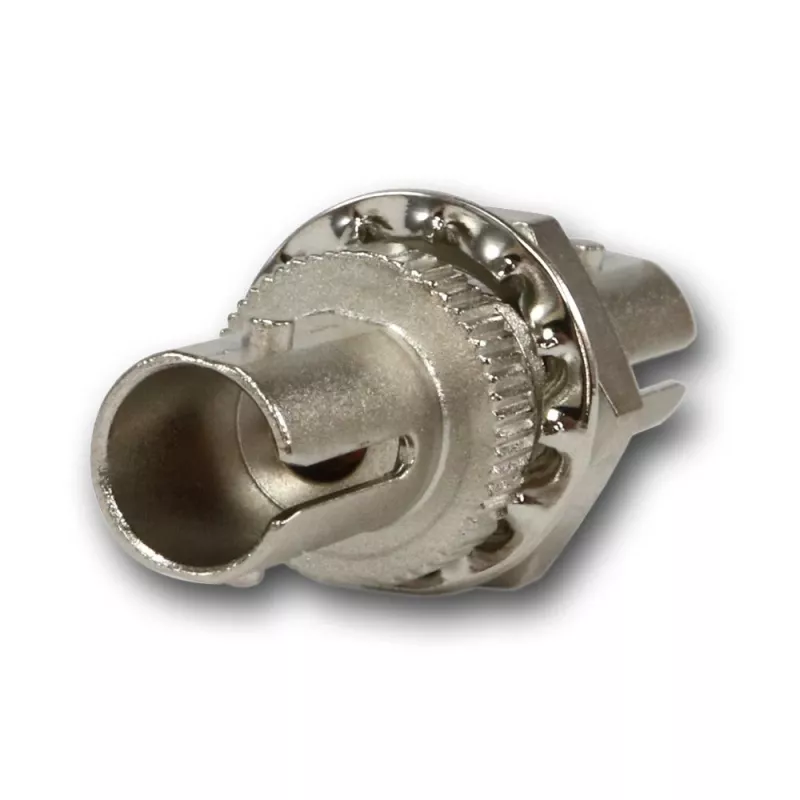

• ST simplex adapter for multimode fibre
• Precision phosphor bronze alignment sleeve for accurate mating
• Nickel-plated brass housing for durability
• Single-hole (D-cutout) mounting for easy installation
• Low insertion loss of less than 0.3 dB
• Supports over 500 mating cycles
• Operating temperature range: -40°C to +85°C
• Complies with IEC 61754-2 and TIA/EIA-604-2

Tips

Clean the connector end faces before mating to maintain low insertion loss. Use a dust cap when the adapter is not in use to protect the alignment sleeve.
