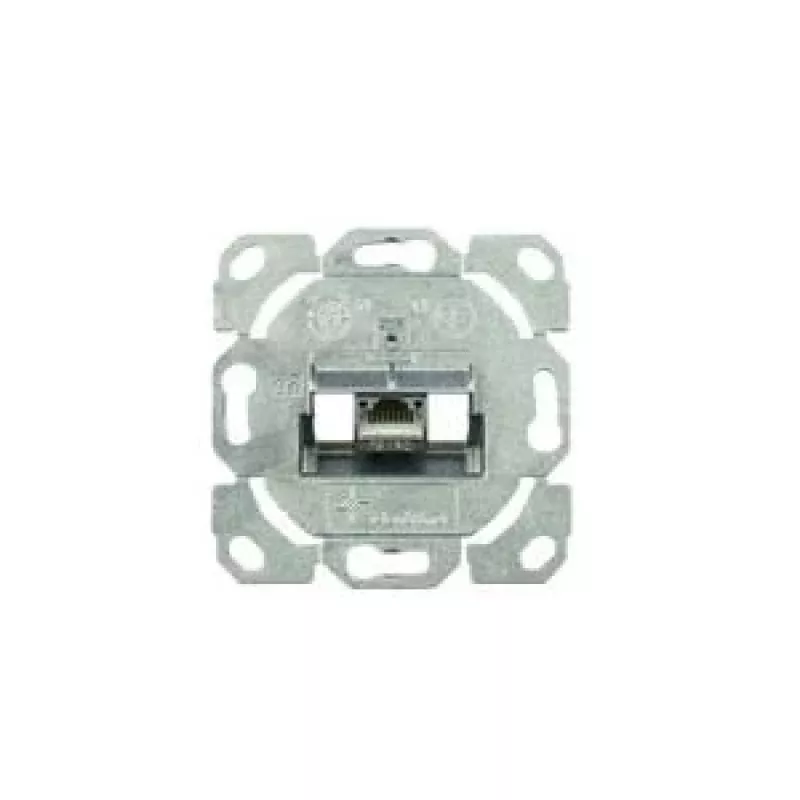

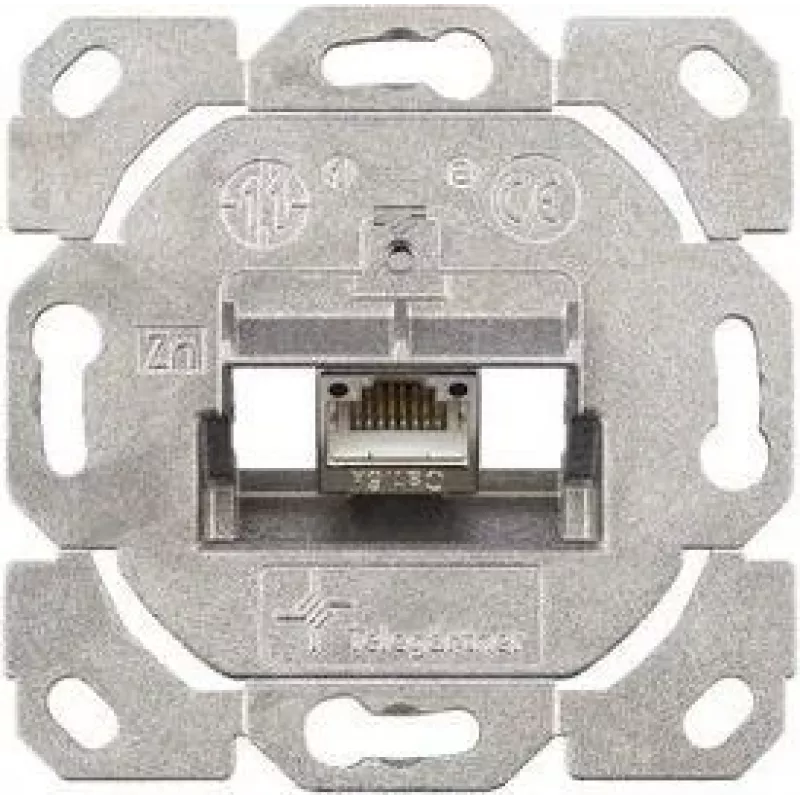

TELEGÄRTNER AMJ-S Cat.6A módulo de ligação RJ45 blindado com tampa, branco puro J00020A0514

Network outlet module with integrated cover for Cat.6A shielded RJ45 connections, delivering reliable data transmission up to 500 MHz in a compact flush-mount design. The die-cast zinc housing and tool-less AMJ-S termination ensure durable, high-performance connectivity for structured cabling systems.

Advantages

Shielded Cat.6A module supports 10GBASE-T and Power over Ethernet up to 4PPoE. Tool-less IDC termination speeds installation, while the die-cast zinc body provides excellent shielding and mechanical stability. Cover in pure white (RAL 9010) blends with standard wall plates.

Suitable for

• Office and enterprise network cabling
• High-speed data and PoE applications
• Flush-mount installation in standard boxes

Key specifications

• Connector: RJ45, shielded, 1 port
• Category: Cat.6A (ISO/IEC), up to 500 MHz
• Termination: AMJ-S tool-less IDC, solid AWG 24/1 – 22/1, stranded AWG 26/7 – 22/7
• Housing: die-cast zinc, cover PC/ABS, UL 94 V-0
• Mounting: flush-mount
• Operating temperature: -40°C to +70°C
• Insertion cycles: >750, gold-plated contacts

Recommendations

Pair with TELEGÄRTNER patch panels and Cat.6A patch cables for a complete shielded cabling solution.
