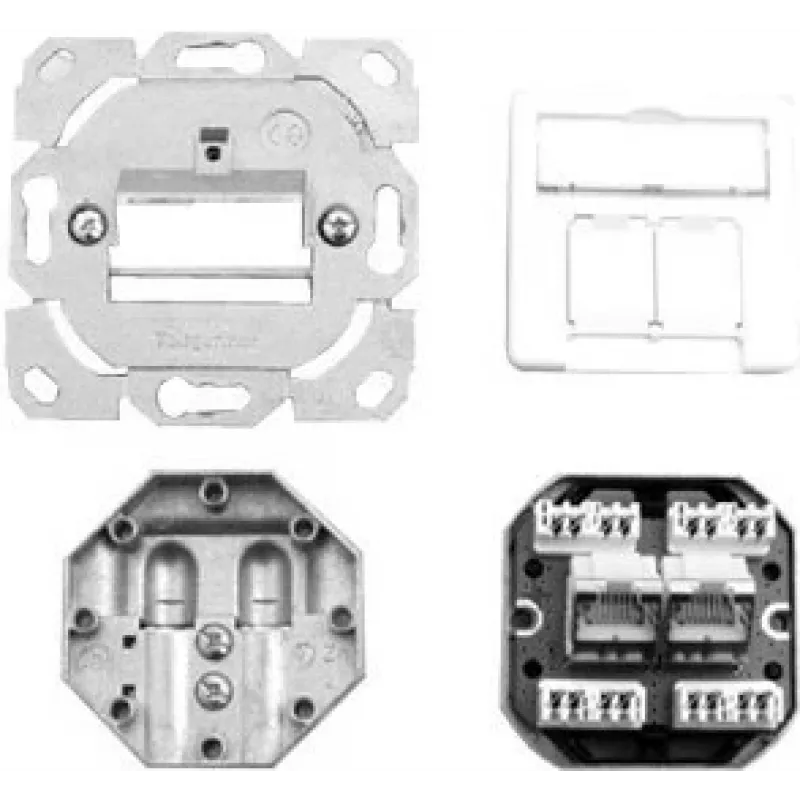

Telegärtner AMJ45 8/8 K UP/50 Tomada de ligação para calha Cat.6+, 2 x RJ-45, blindada, Branco alpino

For structured cabling installations in office buildings, educational facilities, and commercial spaces, the Telegärtner AMJ45 8/8 K UP/50 provides a reliable connection point for high-speed data networks. This cable duct outlet integrates two shielded RJ-45 jacks in a compact, flush-mount housing, making it ideal for work areas where both performance and aesthetics matter.

Key specifications

• Two RJ-45 ports, each supporting 10 Gigabit Ethernet (10GBASE-T) for demanding applications
• Cat.6A performance up to 500 MHz, exceeding Cat.6 requirements and certified to ISO/IEC 11801 Ed.2.2, EN 50173-1, and TIA/EIA-568-C.2
• Fully shielded housing and gold-plated contacts (min. 0.8 µm) ensure excellent signal integrity and corrosion resistance
• Tool-free LSA termination for AWG 24-22 solid conductors, supporting TIA/EIA 568A and 568B wiring schemes
• Robust polycarbonate/ABS construction in pure white (RAL 9010) blends seamlessly with standard trunking and wall plates
• Supports Power over Ethernet (PoE, PoE+, 4PPoE) per IEEE 802.3af/at/bt for powering devices like IP phones and cameras
• Operating temperature range from -40°C to +70°C for use in harsh environments

Why choose it

The AMJ45 module is engineered for longevity and performance. Its keystone-compatible design allows easy integration into patch panels, faceplates, or cable ducts, while the shielded construction reduces electromagnetic interference. The gold-plated contacts maintain low contact resistance over thousands of mating cycles, ensuring a stable connection for years.

Ideal use cases

• Office workstations requiring high-speed data and PoE for VoIP phones or wireless access points
• Educational institutions deploying dense network connections in classrooms and labs
• Commercial buildings where cable duct mounting is preferred for flexible office layouts
• Industrial settings needing reliable connectivity within a wide temperature range

Good to know

This outlet is part of Telegärtner's AMJ series, known for its modularity and compliance with international cabling standards. The package includes the outlet module; mounting accessories such as cable duct adapters or faceplates may be ordered separately. Always follow local installation codes and use appropriate cable types for Cat.6A performance.
