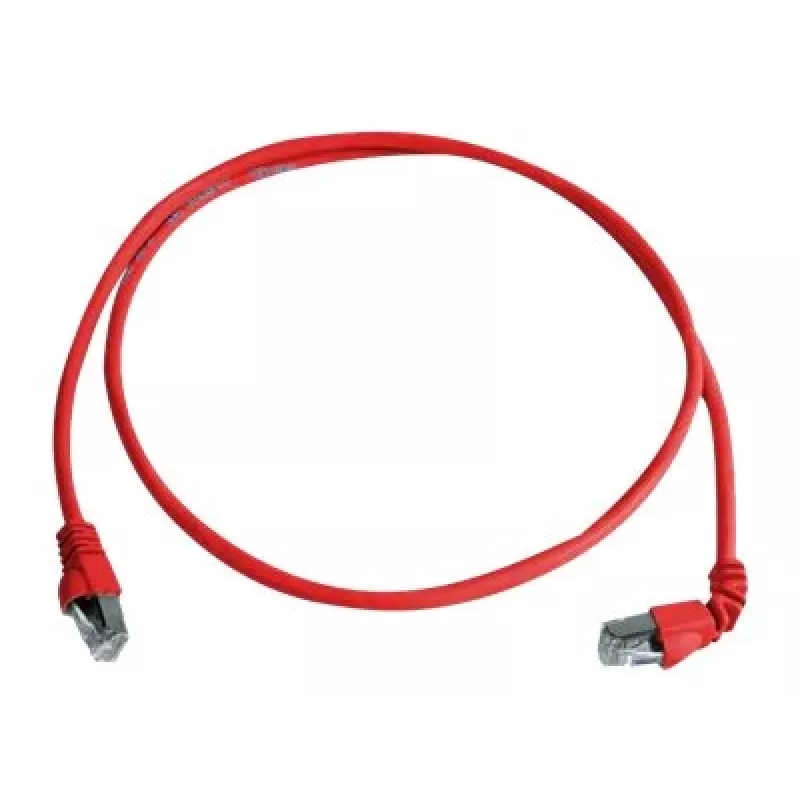

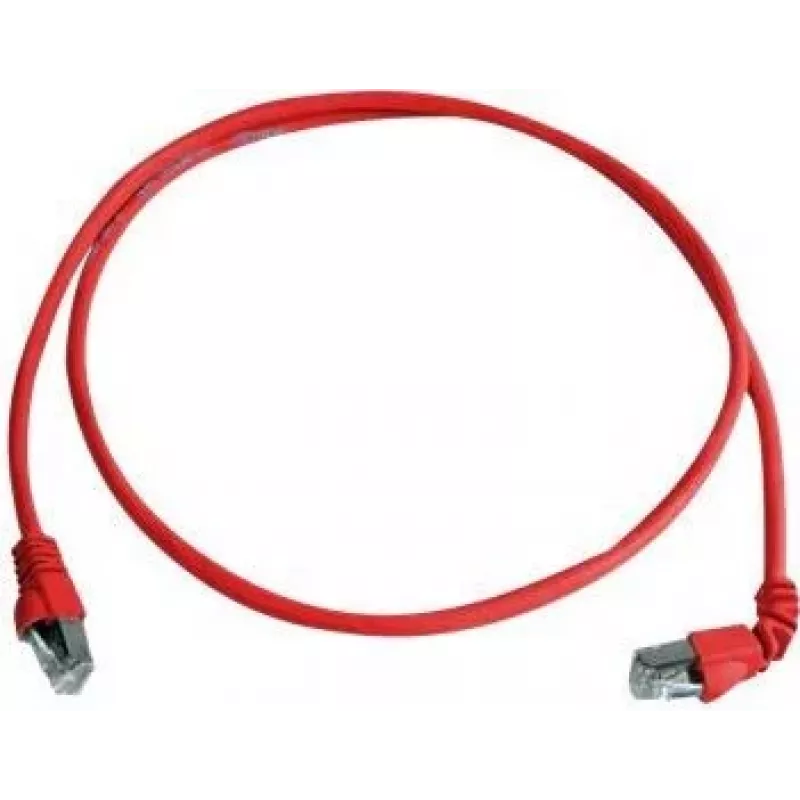

Telegärtner Cabo de rede S/FTP Cat 6A, PiMF, 1m, vermelho, uma ficha angular, LSZH L00000A0196

High-density network installations often leave no room for a standard straight RJ45 plug, especially behind desks or inside cabinets. This Telegärtner patch cable solves that with one 90° angled connector, while still delivering full 10 Gigabit performance over 1 metre.

Who is it for

Network administrators and installers who need reliable Cat 6A connectivity in tight spaces, data centres, or office environments where halogen-free cabling is required.

Main features

• Cat 6A performance up to 500 MHz and 10GBASE-T
• S/FTP shielding with PiMF (pairs in metal foil) for maximum noise immunity
• One straight and one 90° angled RJ45 connector for space-constrained ports
• LSZH jacket: low smoke, zero halogen, safe for public areas
• Stranded copper conductors for flexibility and durability
• Supports PoE, PoE+, and 4PPoE (PoE++)
• Wired to TIA/EIA-568B, 100 Ohm impedance

Specifications

• Length: 1.0 m
• Colour: Red
• Connector type: RJ45 male (both ends)
• Connector orientation: straight / 90° angled
• Shielding: S/FTP, PiMF
• Bandwidth: 500 MHz
• Data rate: 10 Gbps
• Jacket: LSZH
• Conductor: stranded copper
• Compliance: ISO/IEC 11801, EN 50173, TIA/EIA-568-C.2

Tips

Use this cable where a straight plug would protrude too far, such as wall-mounted TVs, patch panels in shallow enclosures, or densely packed switches. Pair with Telegärtner Cat 6A keystone jacks for a complete shielded channel.
