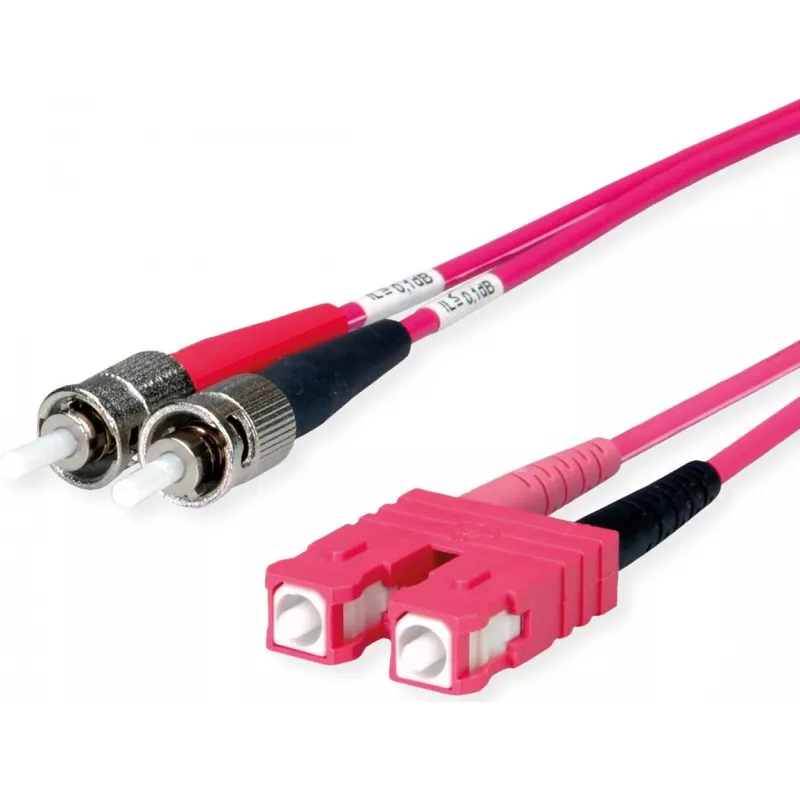

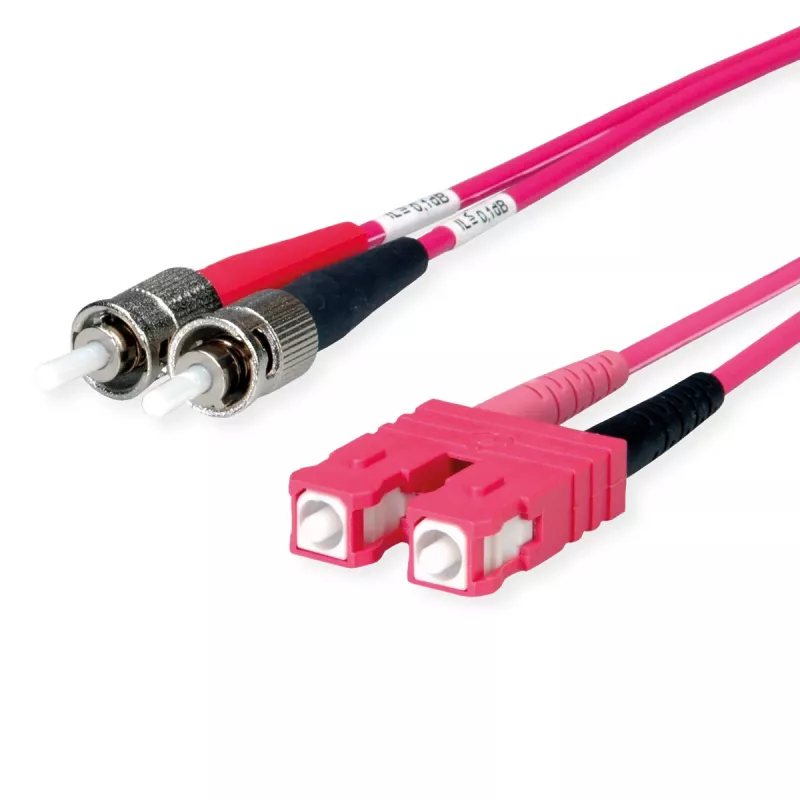

Telegärtner cabo patch de fibra ótica OM4 ST para SC, 50/125µm multimodo, 2m, aqua L00891A0079

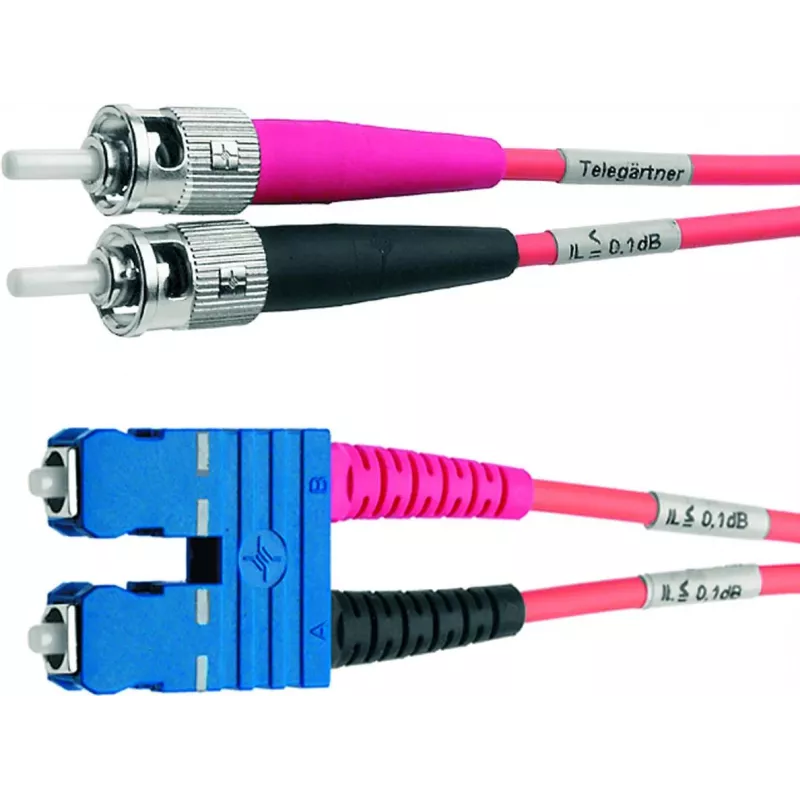

With an impressive modal bandwidth of 4700 MHz·km at 850 nm, this Telegärtner OM4 fibre patch cable is built for high-speed multimode networks. The 2-metre simplex cable connects an ST connector to an SC connector, both with PC polish, ensuring low insertion loss and reliable performance in data centres, LANs, and SANs.

Overview

This patch cable uses 50/125 µm multimode fibre with an OM4 grade, providing excellent performance for short-reach, high-bandwidth applications. The aqua LSZH jacket offers safety in plenum and riser environments, while the ST and SC connectors are widely used in fibre installations.

What stands out

• OM4 fibre supports 10G, 40G, and 100G Ethernet up to 150 metres at 850 nm.
• Low attenuation: < 2.3 dB/km at 850 nm and < 0.6 dB/km at 1300 nm.
• LSZH jacket reduces toxic smoke and corrosive gases in case of fire.
• PC polish on both connectors minimises back reflection.

Technical details

• Cable length: 2 m
• Fibre type: Multimode OM4, 50/125 µm
• Connector 1: ST PC
• Connector 2: SC PC
• Jacket material: LSZH
• Jacket colour: Aqua
• Operating temperature: -20°C to +70°C

Our verdict

A dependable OM4 patch cable for high-speed fibre links, offering low attenuation and a flame-retardant jacket. Ideal for structured cabling in enterprise and data centre environments.
