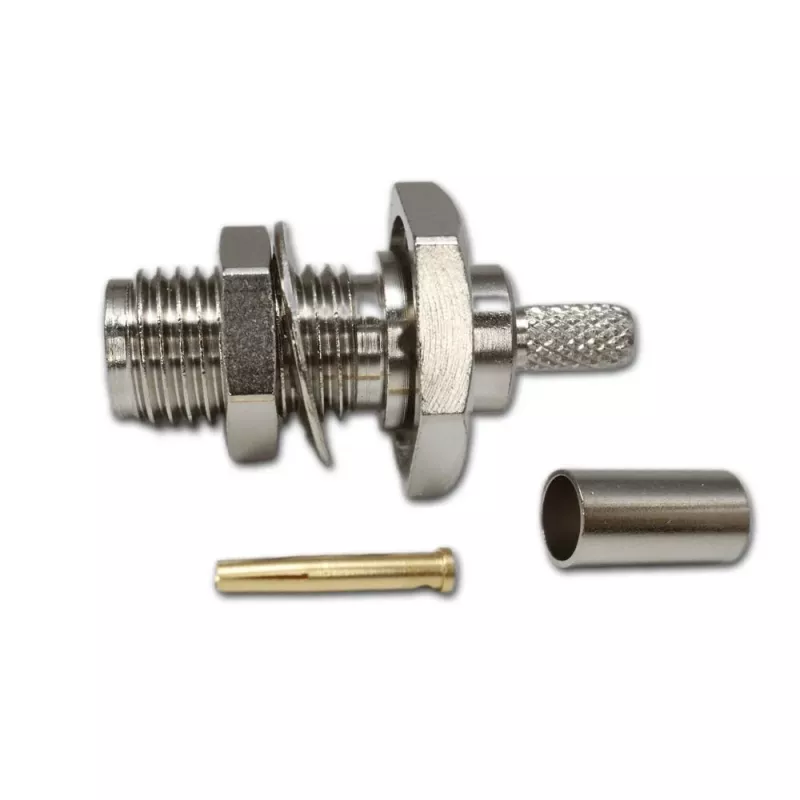

Telegärtner Conector fêmea SMA de montagem com crimpagem para RG-316/U, niquelado, pack de 5 (J01151A0009)

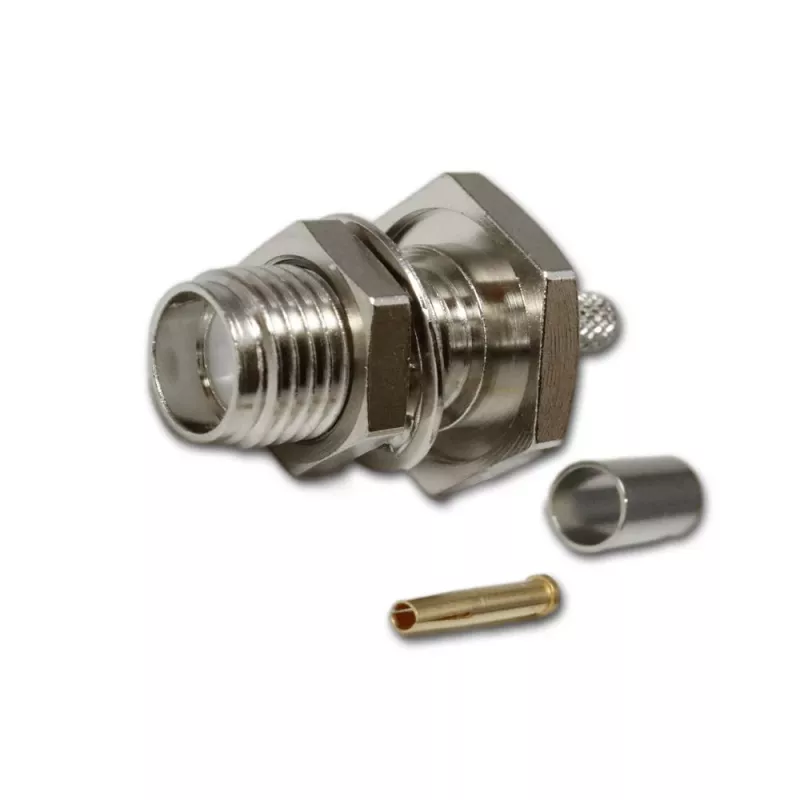

SMA jack bulkhead connector with crimp cable attachment for RG-316/U, RG-174/U, and RG-188A/U cables. Nickel-plated body with gold-plated center contact and PTFE insulator, rated for DC to 6 GHz.

Advantages

Reliable crimp termination for semi-rigid and flexible cables. Bulkhead mounting with panel nut provides secure fixation. Gold-plated center contact ensures low contact resistance and long-term stability.

Suitable for

• RF connections up to 6 GHz
• Panel-mounted antenna and equipment interfaces
• Cables: RG-316/U, RG-174/U, RG-188A/U

Key specifications

• Impedance: 50 Ohm
• Frequency range: DC to 6 GHz
• Body plating: Nickel
• Center contact plating: Gold
• Insulator: PTFE
• Voltage rating (RMS): 335 V
• Operating temperature: -65°C to +165°C

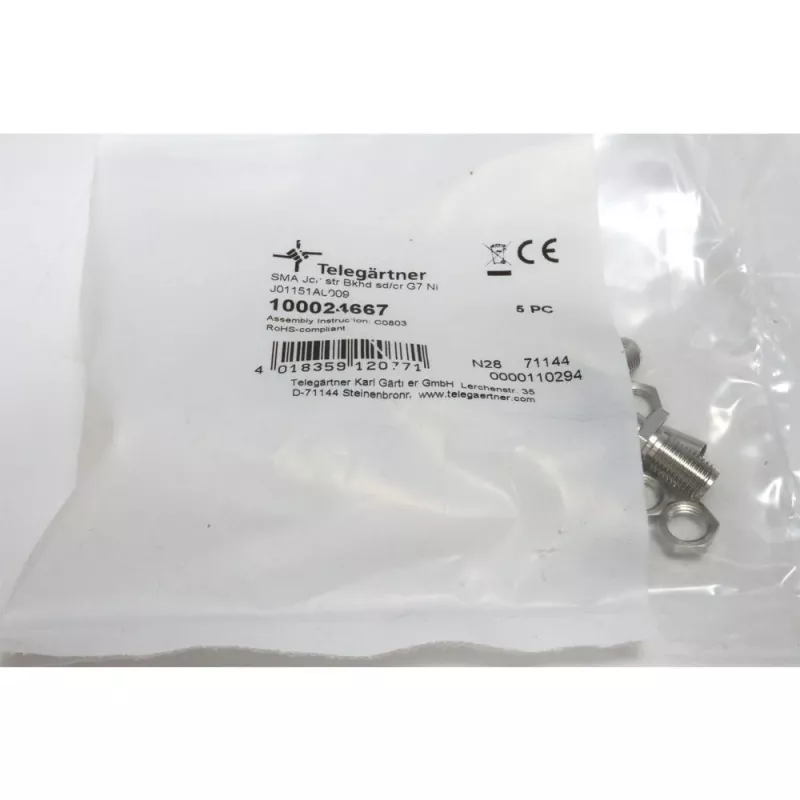

• Packaging: 5 pieces

Recommendations

Use with appropriate crimp tooling for RG-316/U, RG-174/U, or RG-188A/U cables. Ensure proper cable stripping dimensions per manufacturer instructions.
