Ficha BNC para cravar RG-11 DeLOCK 90027

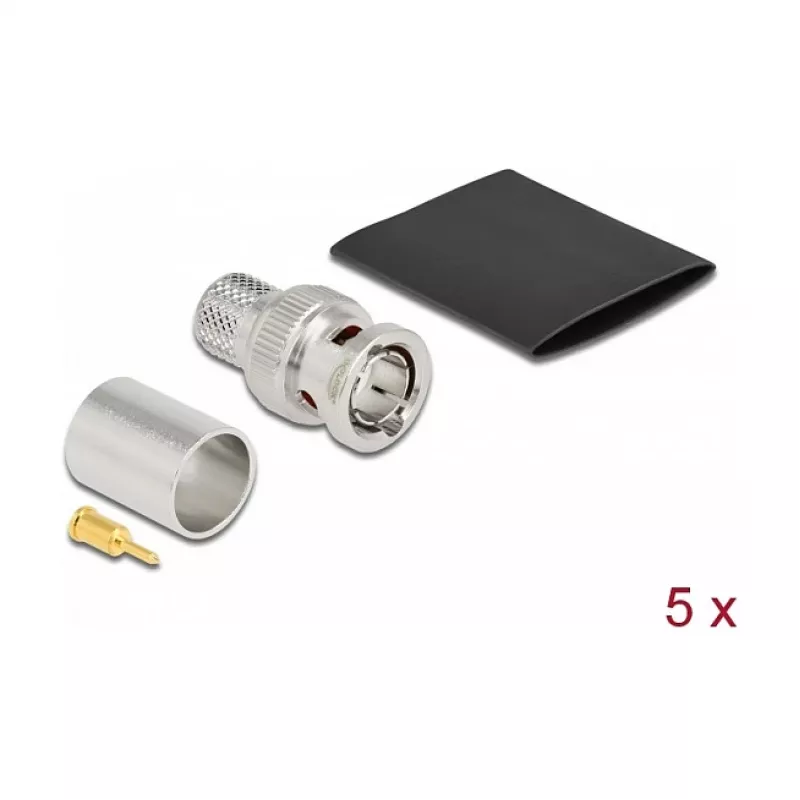

The DeLOCK BNC plug for crimping RG-11 (MPN 90027, EAN 4043619900275) is a male BNC connector with nickel-plated contacts supplied in a pack of 5. The connector measures 25 mm (W) x 14.5 mm (D) x 25 mm (H) and includes a matching shrink tube to improve the mechanical fit and protection of the cable termination. This plug is suitable for reliable connections in radio frequency technology and other coaxial cable applications where an RG-11 termination is required.

Advantages

The nickel-plated contacts provide corrosion resistance and stable signal transmission. Inclusion of a matching shrink tube improves strain relief and environmental protection at the crimped joint. The connector’s compact dimensions and standardized BNC interface ensure compatibility with common RF equipment and test instruments. Supplied in a pack of 5 for multiple terminations or spares.

Suitable for

Key specifications

How to use

Prepare the RG-11 cable by stripping the outer jacket, braid, and dielectric according to the connector manufacturer’s recommended strip lengths. Insert the cable into the BNC plug so that the center conductor engages the contact and the braid sits under the crimp sleeve. Crimp the connector with the appropriate crimping tool and die for RG-11. After crimping, position the supplied shrink tube over the joint and apply heat to shrink it, ensuring proper insulation and strain relief.

Recommendations

Use the correct crimping die for RG-11 and check electrical continuity after installation. Store unused connectors in a dry environment to prevent contamination of contacts. For outdoor or harsh-environment installations consider additional sealing measures beyond the supplied shrink tube.
