Ficha coaxial DeLOCK 89701

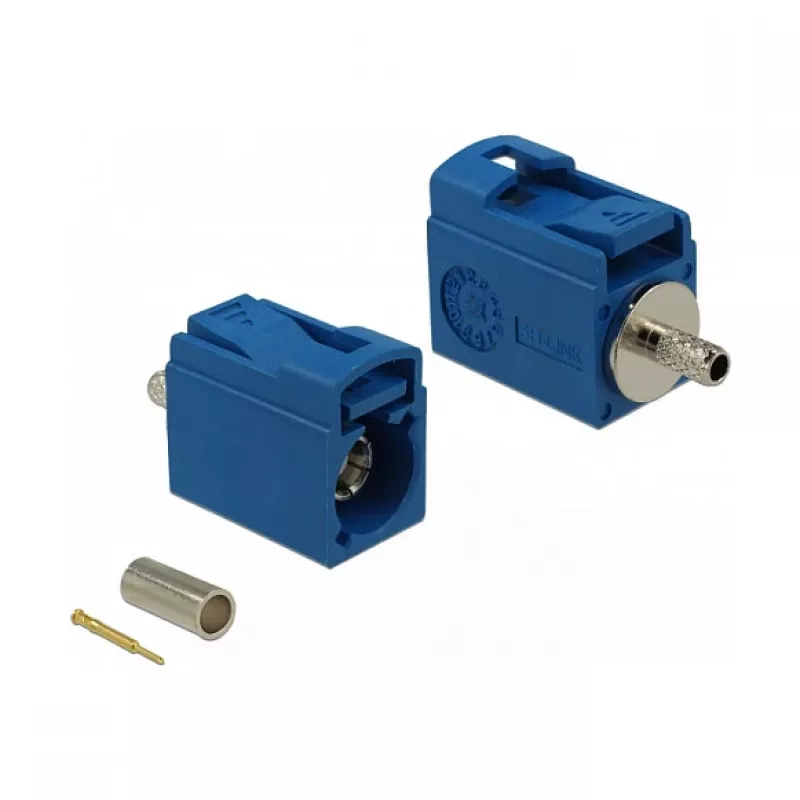

The DeLOCK 89701 coaxial connector is a compact FAKRA C male connector with gold-plated contacts designed for reliable radio-frequency connections. Its small dimensions (13.8 mm × 21 mm × 9.5 mm) make it suitable for installations where space is limited. The connector is supplied in a polybag and is intended for use in systems that require quality coaxial connections.

Advantages

Gold-plated contacts provide improved conductivity and corrosion resistance. The FAKRA C male form factor ensures compatibility with corresponding FAKRA C female connectors commonly used in automotive and RF applications. Its compact size simplifies placement in confined spaces and contributes to flexible system design.

Suitable for

• Automotive antenna connections
• Infotainment and navigation systems
• Radio-frequency modules and sensors
• Custom RF cabling and repair tasks

Key specifications

• Brand: DELOCK
• Model / MPN: 89701
• Connector type: FAKRA C male
• Contacts: Gold-plated
• Dimensions (W × D × H): 13.8 mm × 21 mm × 9.5 mm
• Packaging: Polybag
• EAN: 4043619897018

How to use

Align the FAKRA C male connector with the corresponding female socket and press firmly until it clicks into place to ensure a secure connection. For disconnection, depress the locking mechanism (if present) and pull the connector straight out to avoid damaging the contacts. Installations should be performed with the system powered down when possible and by qualified personnel for critical applications.

Recommendations

To maintain performance, avoid bending the attached coaxial cable sharply near the connector and protect the connector from prolonged exposure to moisture and contaminants. Use matching FAKRA C female connectors and follow vehicle or equipment manufacturer guidelines for RF installations.
