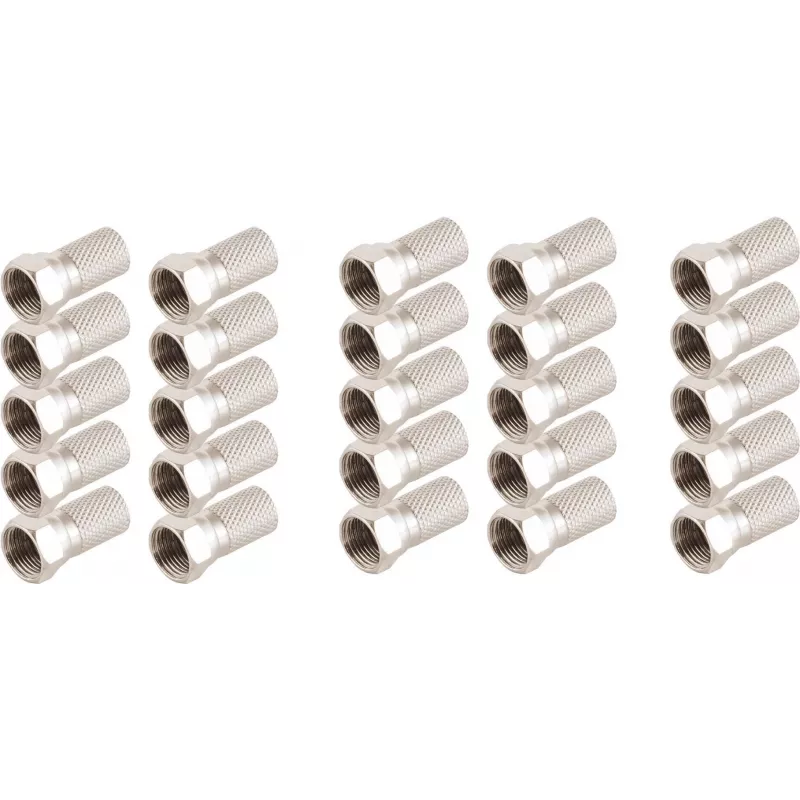

Ficha F ShiverPeaks 85009-A-SET25, conjunto com 25 fichas F para cabo coaxial

ShiverPeaks 85009-A-SET25 is a set of 25 F-type connectors designed for terminating coaxial cables used in TV, satellite and broadband installations. These threaded RF connectors provide a mechanical and electrical connection between coaxial cable runs and devices or patch panels. The set is intended for standard coaxial cable assemblies where a reliable interface for the centre conductor and outer shield is required, suitable for both household repairs and professional signal distribution tasks.

Advantages

The connectors offer a threaded F-type interface that ensures a secure mechanical connection and consistent contact for signal transmission. Supplied as a set of 25, they allow multiple terminations without the need for repeated purchases. The design supports straightforward attachment of the cable shield and centre conductor, which simplifies installation and reduces assembly time. The connectors are compatible with common coaxial cable installations for television, satellite and broadband equipment.

Suitable for

• Terminating coaxial cables for domestic TV installations
• Connecting satellite LNBs, receivers and multiswitches
• Broadband cable connections and signal distribution points
• On-site repairs and replacement of worn or damaged connectors
• Small professional installations and cable runs

Key specifications

• Connector type: F-type (threaded RF connector)
• Quantity: set of 25 connectors
• Application: coaxial cable termination for TV, satellite and broadband
• Contact method: centre conductor and outer shield attachment
• Intended use: indoor cable terminations, signal distribution and repairs

How to use

Prepare the coaxial cable by stripping the outer jacket to expose the braided shield and the dielectric, then trim the dielectric to reveal the centre conductor to the required length. Slide the F-type connector onto the cable so that the centre conductor extends into the connector and the shield makes contact with the connector body. Screw the connector onto the mating threaded socket or use standard compression/assembly techniques appropriate for the connector design. Ensure each connection is tightened securely to maintain good electrical contact and minimize signal loss.

Recommendations

For reliable performance, use these connectors with compatible coaxial cable types and avoid over-tightening to prevent damage to the connector or cable. Check connections with appropriate signal test equipment after installation to verify continuity and signal level.
