Telegärtner Conector fêmea SMA de montagem com flange Z29, dourado (padrão) – 5 unid. (J01150A0191)

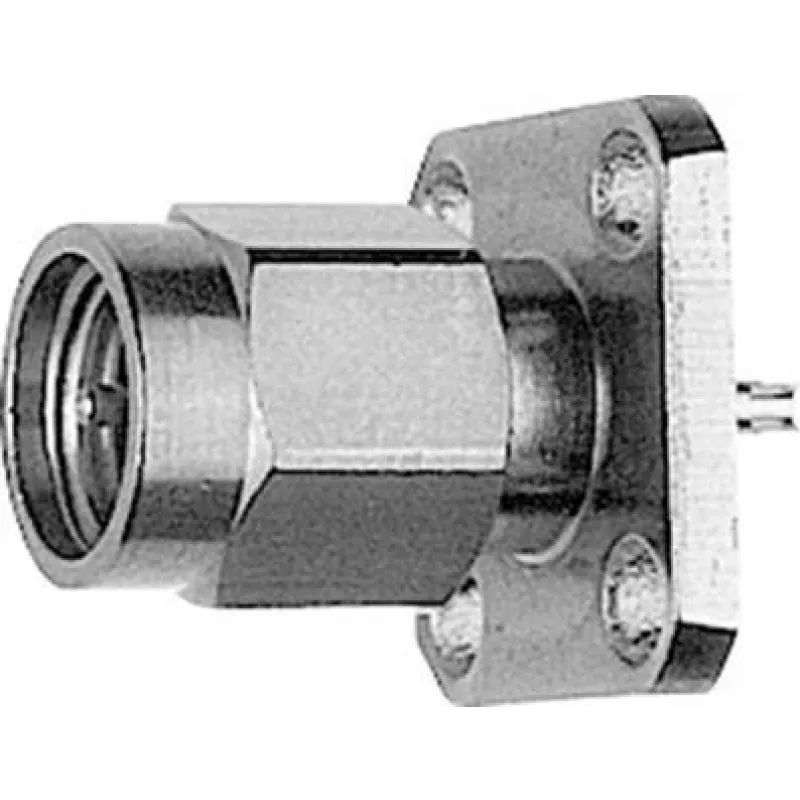

This SMA bulkhead jack stands out with its 4-hole flange design and gold-plated body and center contact, ensuring reliable high-frequency performance up to 18 GHz. It is supplied in a pack of five, ideal for panel-mount RF applications requiring consistent impedance and durability.

Highlights

• 50 Ohm impedance for RF and microwave systems
• Gold-plated brass body and beryllium copper center contact
• PTFE insulator for stable dielectric properties
• Flange mounting with 12.7 x 12.7 mm dimensions and 9.52 mm hole spacing
• Solder termination for secure connection

In daily use

The solder-type center contact and bulkhead mounting make this connector suitable for panel installations where a fixed, robust RF connection is needed. Its operating temperature range from -65 °C to +165 °C and 500 mating cycles support long-term use in demanding environments.

Full specifications

• Connector Series: SMA
• Connector Type: Jack (Female)
• Mounting Type: Bulkhead, 4-Hole Flange
• Impedance: 50 Ohm
• Frequency Range: DC to 18 GHz
• VSWR (Max): 1.35 @ 18 GHz
• Center Contact Termination: Solder
• Contact Plating: Gold
• Body Plating: Gold
• Insulator Material: PTFE
• Body Material: Brass
• Contact Material: Beryllium Copper (CuBe2)
• Dielectric Withstanding Voltage: 1000 Veff
• Insulation Resistance: ≥ 5 GΩ
• Operating Temperature Range: -65 °C to +165 °C
• Mating Cycles: ≥ 500
• Flange Dimensions: 12.7 x 12.7 mm
• Mounting Hole Spacing: 9.52 mm
• RoHS Compliance: Yes
• Package Quantity: 5 pieces

Final note

A reliable choice for high-frequency panel connections, offering gold-plated durability and consistent 50 Ohm performance.
