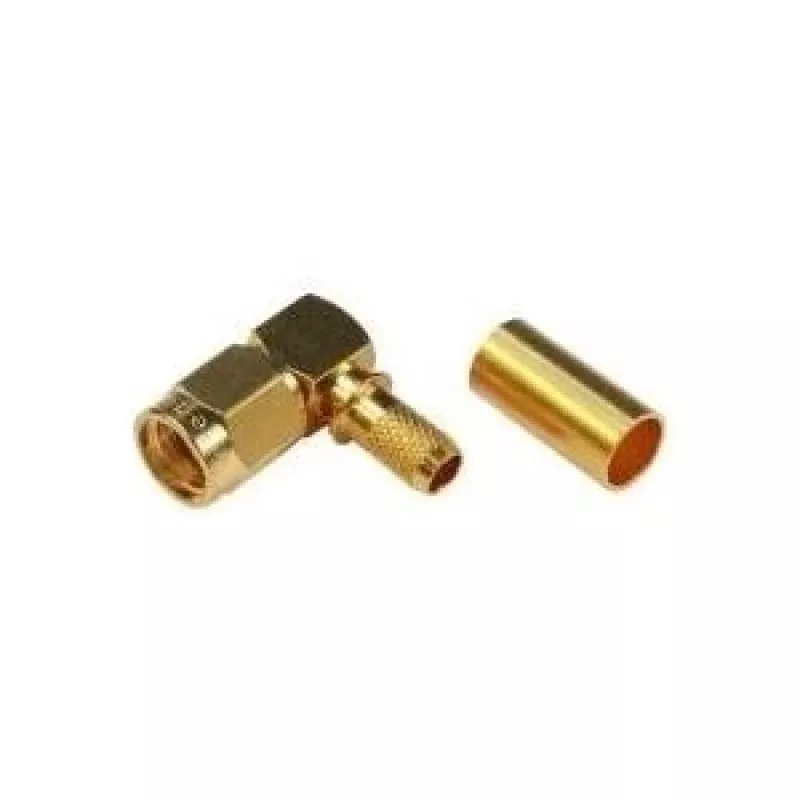

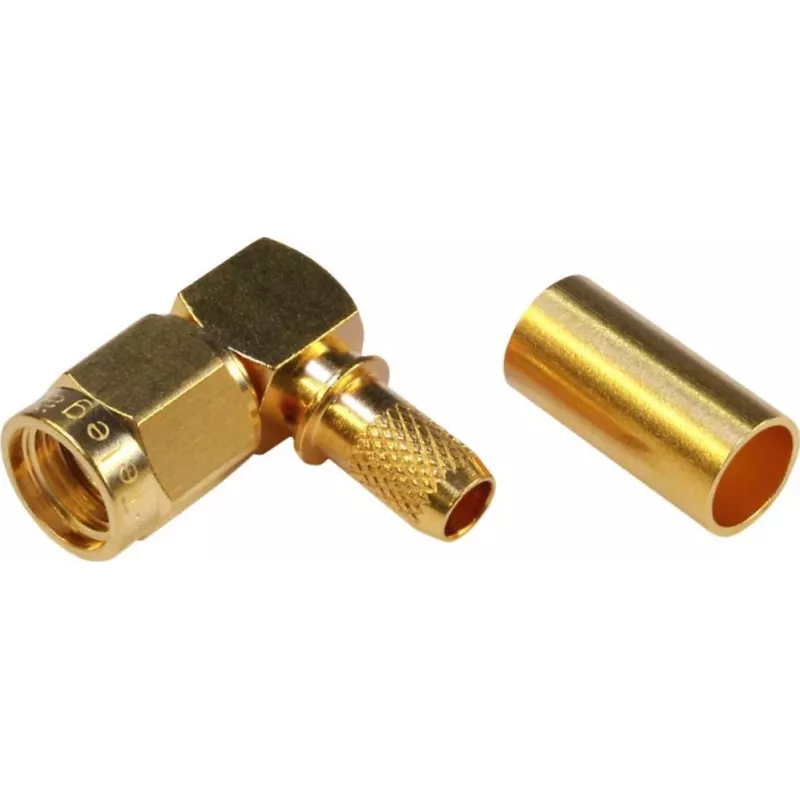

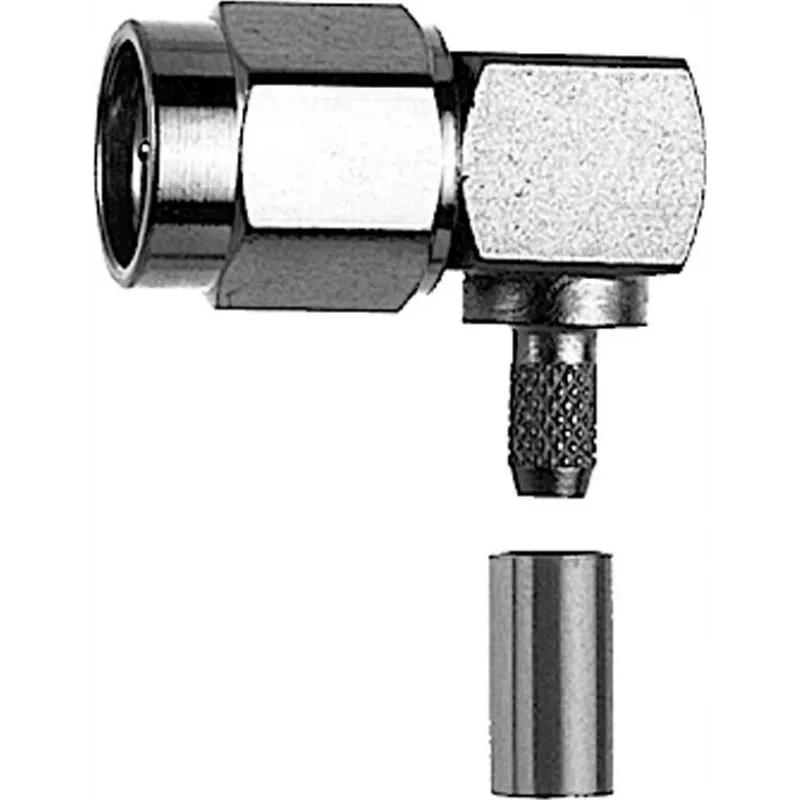

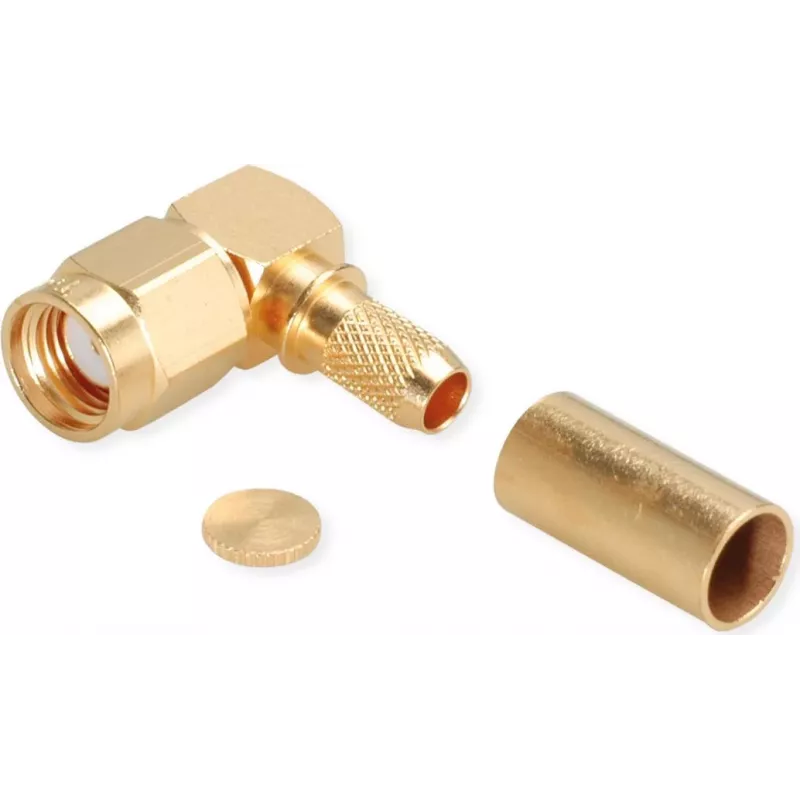

TELEGÄRTNER conector macho angular RP-SMA crimp para RG-58C/U, 50 Ohm, dourado

RP-SMA right-angle plug connector with crimp attachment, engineered for reliable 50-ohm RF connections up to 6 GHz. The angled body saves space in tight installations while the gold-plated brass construction ensures low contact resistance and long-term durability.

Advantages

Right-angle design for compact routing; crimp termination for secure cable retention; gold plating for corrosion resistance and consistent electrical performance; wide operating temperature range from -65 °C to +165 °C.

Suitable for

• RF cable assemblies using RG-58C/U or compatible cables
• Wireless and antenna installations requiring reverse-polarity SMA
• Applications with space constraints or angled cable exits

Key specifications

• Connector type: RP-SMA plug (male)
• Orientation: right-angle
• Impedance: 50 Ohm
• Frequency range: DC – 6 GHz
• VSWR: ≤ 1.25 at 6 GHz
• Body material: brass, gold-plated
• Center contact: brass, gold-plated
• Insulator: PTFE
• Operating temperature: -65 °C to +165 °C
• Mating cycles: ≥ 500

Recommendations

Ideal for professionals building custom RF cables where a right-angle RP-SMA connection is required. Verify cable compatibility before crimping.
