Telegärtner Conector N macho angular de crimpagem para RG-223/U, RG-142 B/U (J01020A0036)

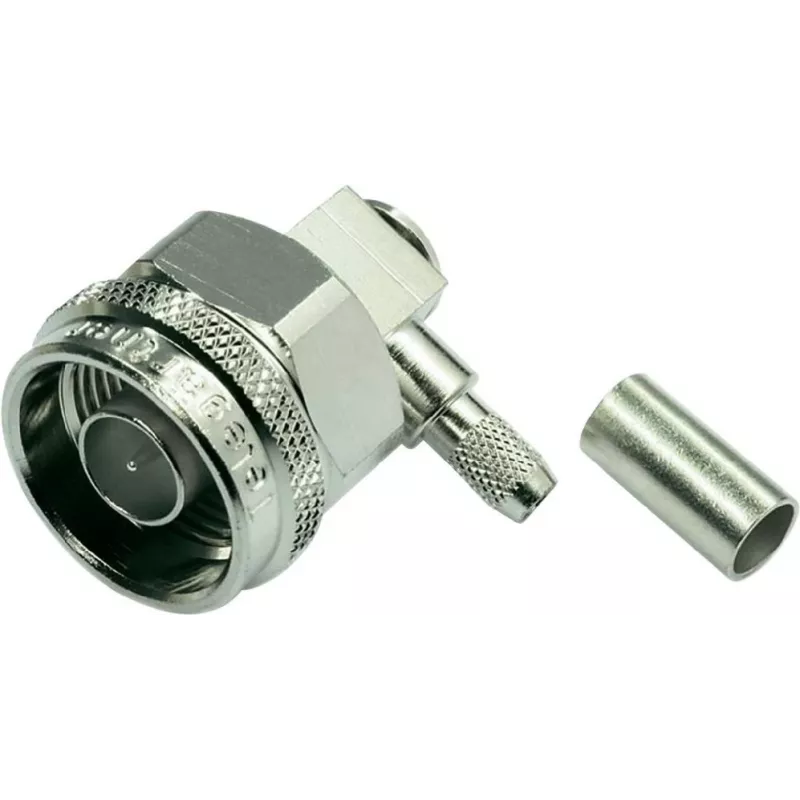

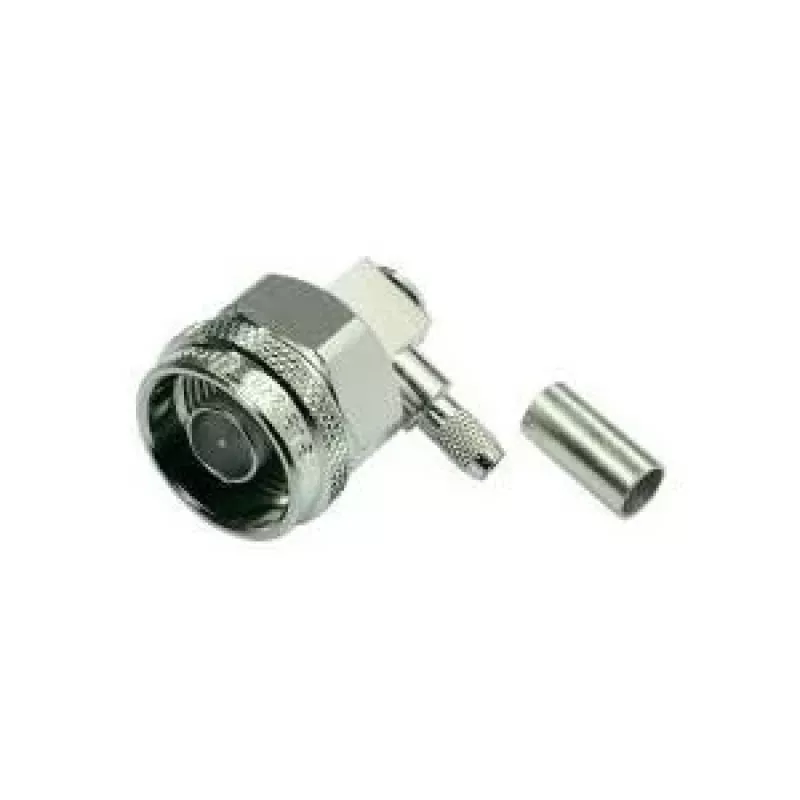

This right-angle N connector from Telegärtner is engineered for RG-223/U and RG-142 B/U coaxial cables, offering a space-saving 90° connection without compromising signal integrity. Unlike straight connectors that strain cable routing in tight enclosures, the angled body allows clean cable management in compact equipment.

Highlights

• Right-angle N plug (male) for RG-223/U and RG-142 B/U cables
• 50 Ohm impedance with DC to 11 GHz frequency range
• Crimp outer conductor termination; solder or crimp center conductor
• Nickel-plated brass body with gold-plated center contact
• PTFE insulator for reliable performance from -65°C to +165°C

In daily use

The connector is designed for cable mounting and suits applications where a straight connector would create excessive bend radius or space constraints. The crimp termination on the outer conductor provides a secure, repeatable connection, while the center conductor can be soldered or crimped depending on your assembly process.

Full specifications

• Connector type: N-Type plug (male)
• Body style: Right-angle
• Impedance: 50 Ohm
• Frequency range: DC to 11 GHz
• Voltage rating (RMS): 1000 V
• Insulation resistance: ≥ 5 GΩ
• Contact resistance (center): ≤ 1.5 mΩ
• Contact resistance (outer): ≤ 1.0 mΩ
• Body material: Brass, nickel plated
• Center contact material: Brass, gold plated
• Insulator material: PTFE
• Operating temperature: -65°C to +165°C
• Compatible cable dielectric diameter: 2.95 mm
• Compatible cable inner conductor diameter: 1.0 mm

Final note

A dependable right-angle N connector for professional RF assemblies using RG-223/U or RG-142 B/U cable.
