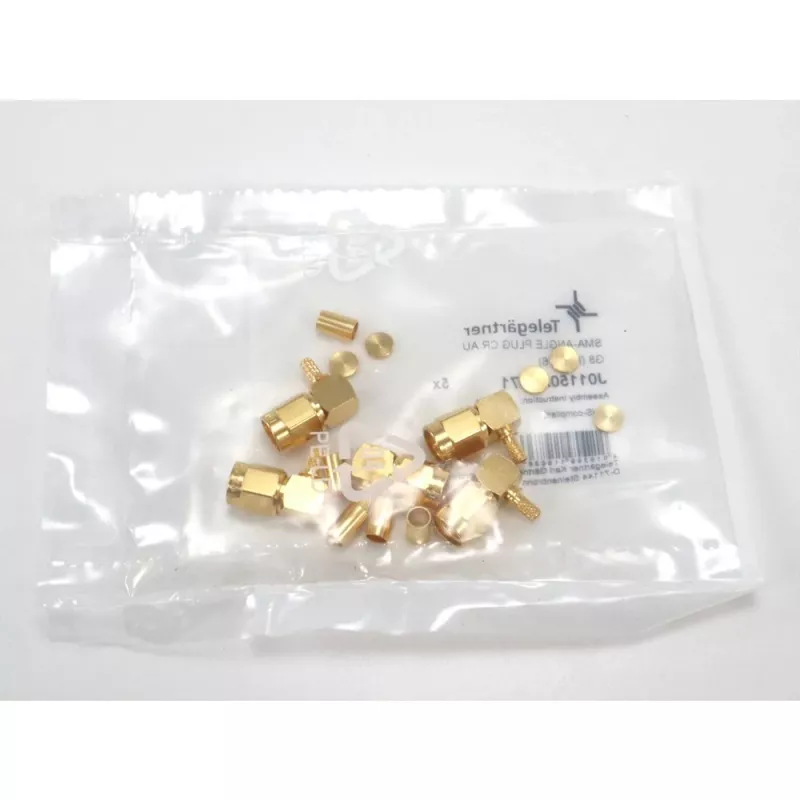

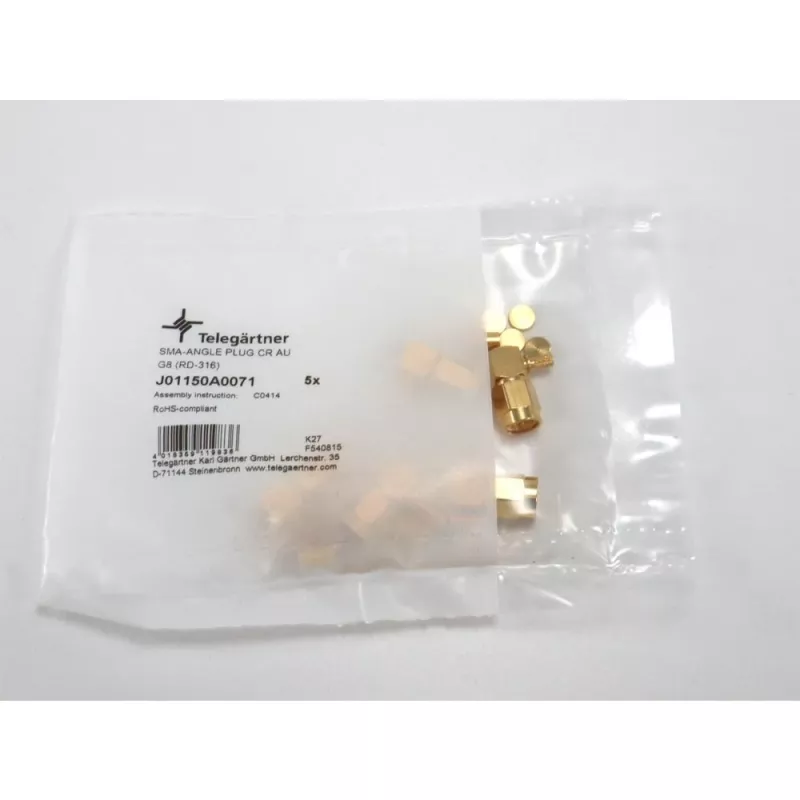

Telegärtner Conector SMA macho angular de crimpagem para RG-316, dourado, pack de 5 (J01150A0071)

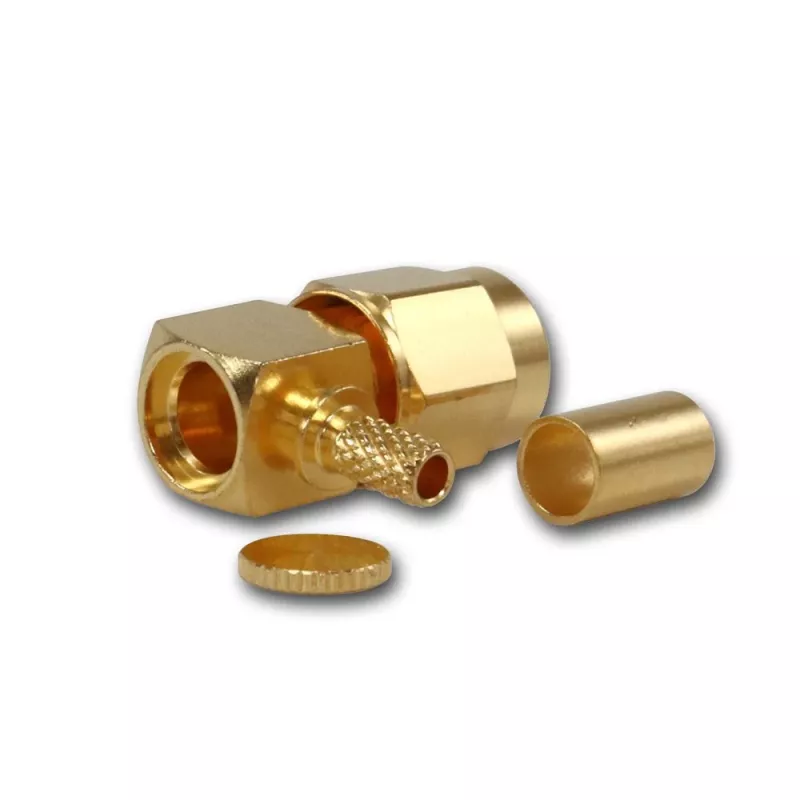

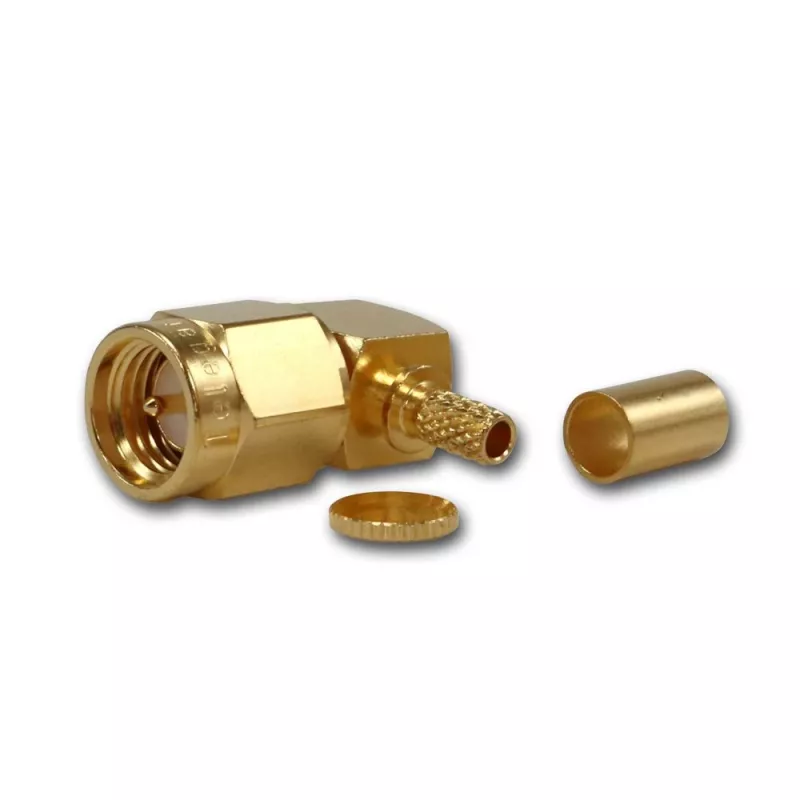

This right-angle SMA plug from Telegärtner is built for compact installations where a straight connector would put stress on the cable. The 90° body routes RG-316, RG-174 A/U or RG-188 A/U coax cleanly along the panel or PCB, keeping the connection profile low without sacrificing RF performance up to 6 GHz.

Highlights

• Right-angle SMA plug (male) with gold-plated brass body and beryllium copper center contact
• Crimp termination for inner and outer conductor – no soldering required
• 50 Ohm impedance, VSWR ≤ 1.25 across DC to 6 GHz
• Supports cable group G08: RG-174 A/U, RG-188 A/U, RG-316
• Operating temperature -65 °C to +165 °C, 500 Veff operating voltage
• Pack of 5 connectors

In daily use

The crimp design gives a repeatable, gas-tight connection when used with the correct crimp tool and ferrules. The gold plating on both body and center contact resists corrosion and maintains low contact resistance over the rated 500 mating cycles. The PTFE insulator keeps losses stable across the full temperature range.

Full specifications

• Connector type: SMA plug (male), right-angle
• Impedance: 50 Ohm
• Frequency range: DC – 6 GHz
• VSWR: ≤ 1.25
• Termination: Crimp (inner and outer conductor)
• Cable compatibility: RG-174 A/U, RG-188 A/U, RG-316 (cable group G08)
• Body material: Brass (CuZn39Pb3), gold plated
• Center contact: Beryllium copper (CuBe2), gold plated
• Insulator: PTFE
• Operating temperature: -65 °C to +165 °C
• Test voltage: 1.5 kVeff
• Operating voltage: 500 Veff
• Mating cycles: ≥ 500
• Pack quantity: 5 pieces

Final note

Ideal for RF test setups, antenna feeds and compact enclosures where cable routing demands a 90° exit.
