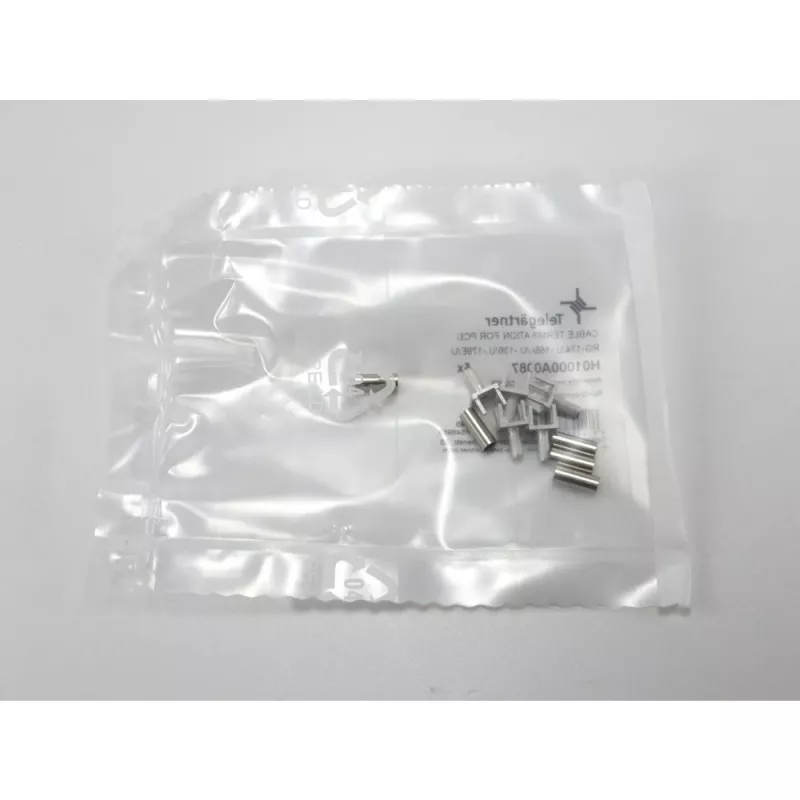

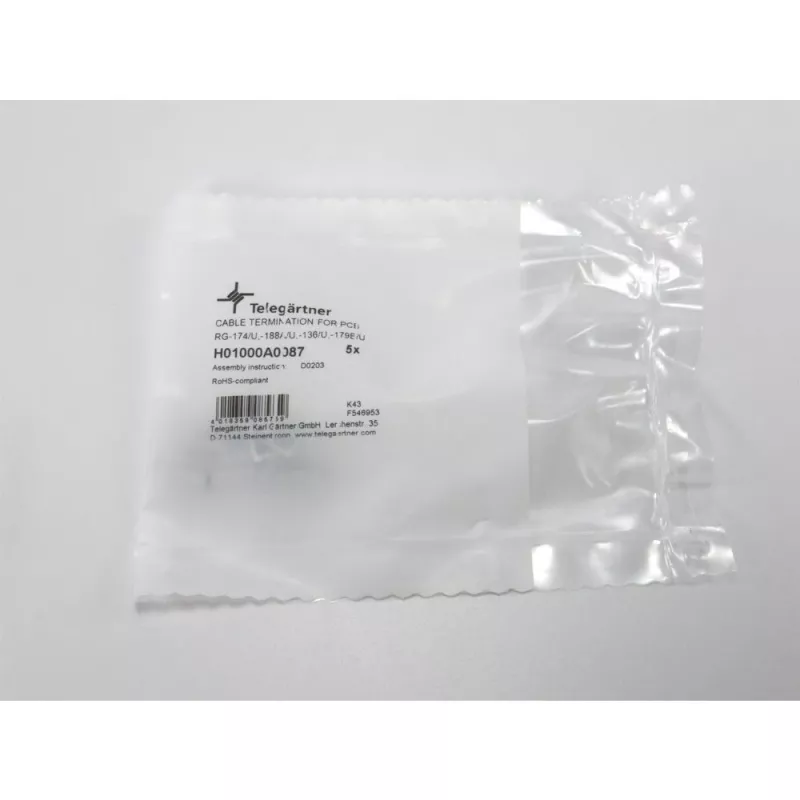

Telegärtner G07 Conector coaxial macho para PCB, ligação por soldadura/crimpagem, 50 Ohm, dourado, para RG-316/U, pack de 5 H01000A0087

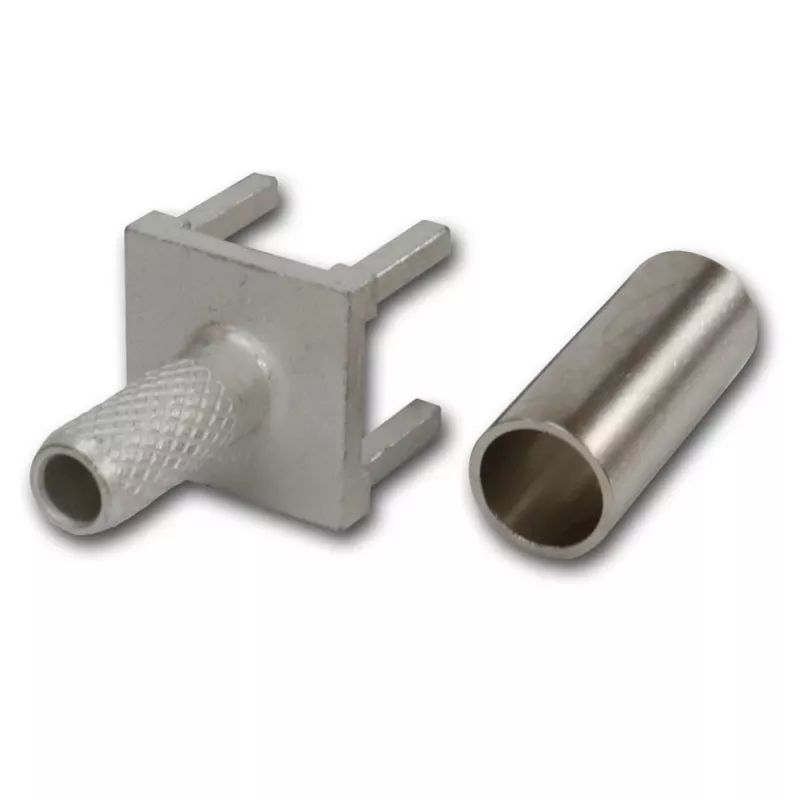

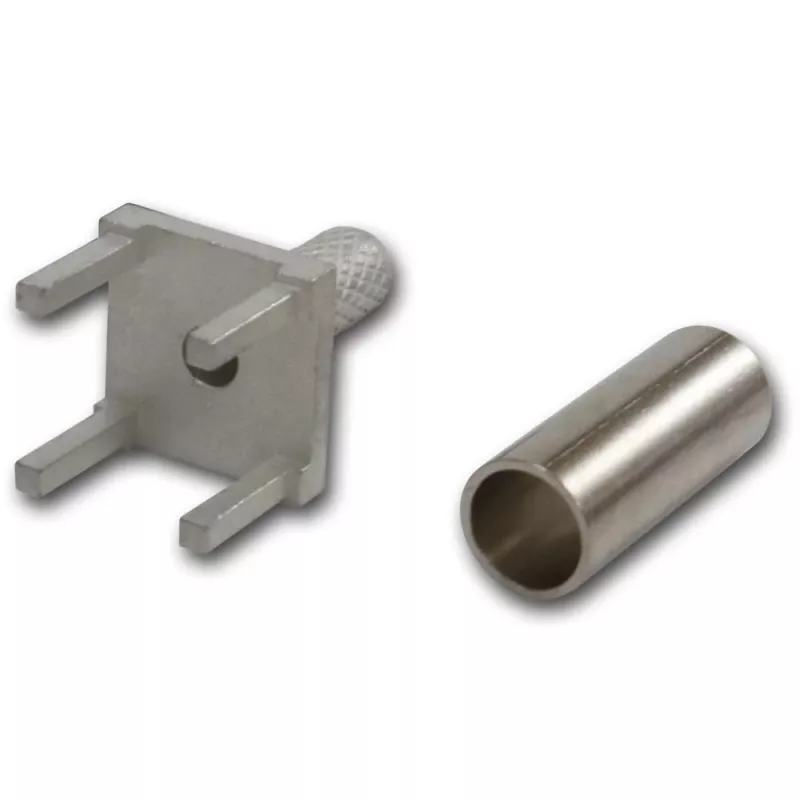

This G07 coaxial PCB connector from Telegärtner provides a reliable 50 Ohm connection for printed circuit boards, supporting frequencies up to 6 GHz. Designed for RG-316/U, RG-174/U, and RG-188A/U cables, it features a solder center contact and crimp outer conductor termination for secure, low-loss signal integrity in high-frequency applications.

Advantages

Gold-plated brass body and contact ensure excellent conductivity and corrosion resistance. PTFE insulation offers stable performance across a wide temperature range from -55°C to +155°C. The straight PCB mount design saves space and simplifies assembly.

Suitable for

• RF and microwave circuit boards
• Telecommunications equipment
• Test and measurement instruments
• Industrial electronics requiring robust coaxial connections

Key specifications

• Connector series: G07
• Impedance: 50 Ohm
• Frequency range: DC to 6 GHz
• Voltage rating: 170 V RMS
• Termination: solder (center), crimp (outer)
• Body and contact material: brass, gold-plated
• Insulator: PTFE
• Packaging quantity: 5 pieces

Recommendations

For best results, use with RG-316/U coaxial cable and a proper crimp tool. Verify PCB footprint compatibility before ordering.
