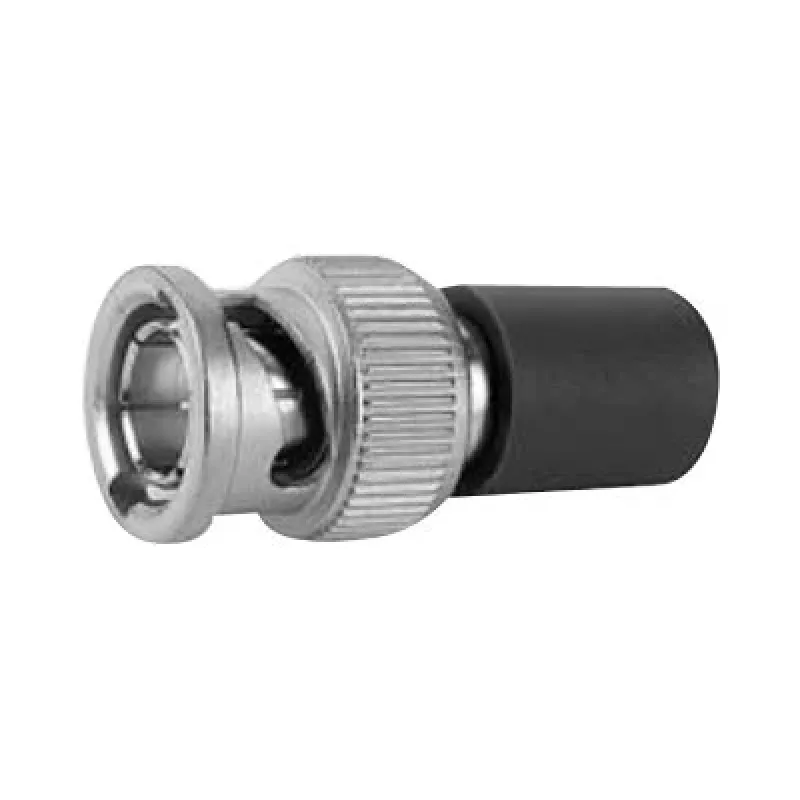

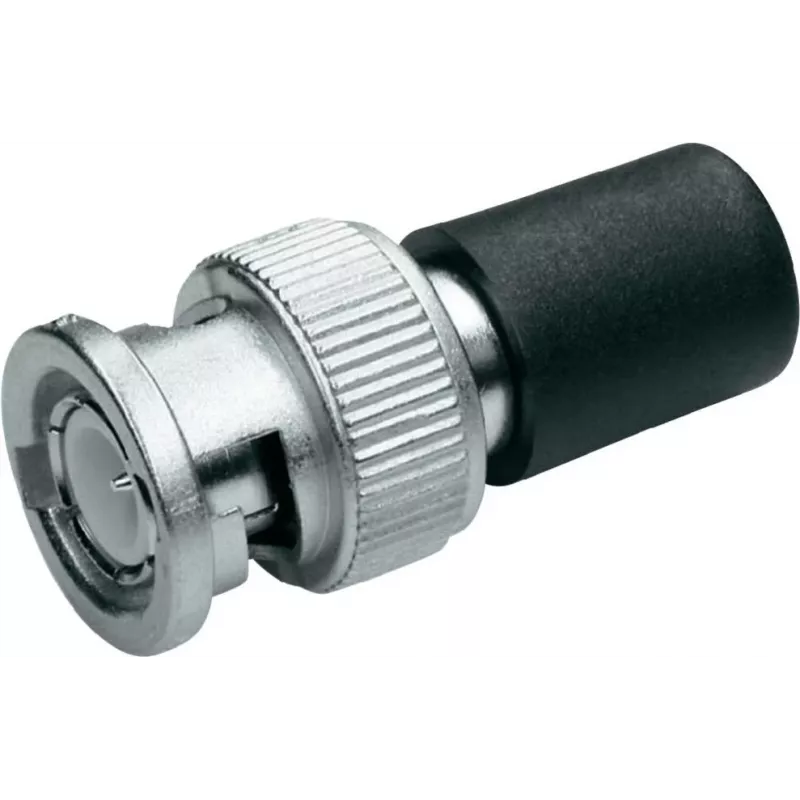

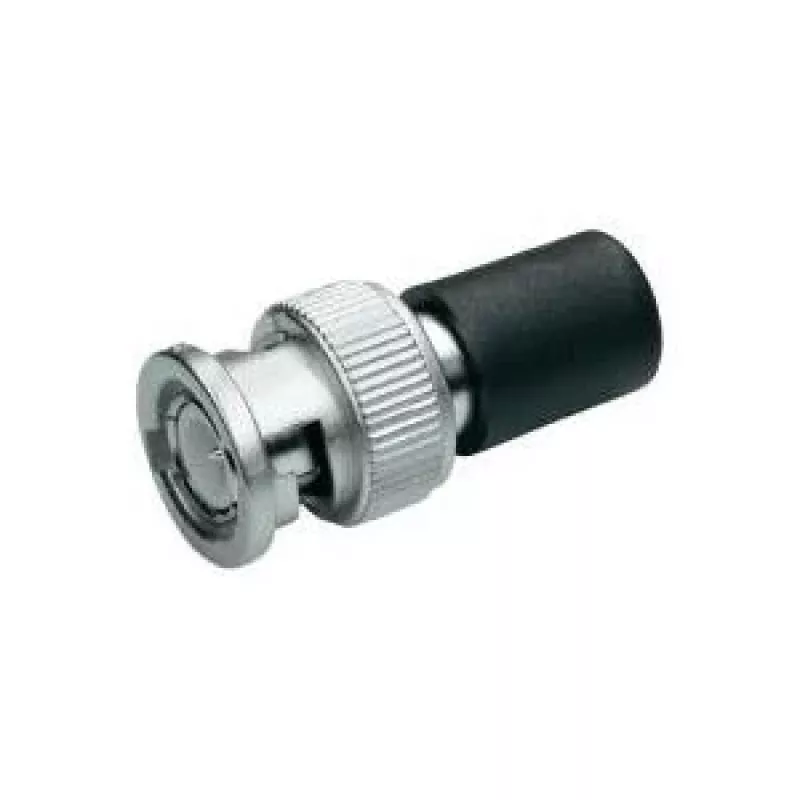

Telegärtner J01006A1373 Ficha coaxial BNC 93 Ohm, ficha, crimpagem/solda, latão niquelado

Secure reliable signal connections in 93-ohm coaxial systems with this precision BNC connector from Telegärtner. Designed for cable-mount termination on RG-179, RG-179B/U, RG-187, and RG-187A/U cables, it provides a stable interface for professional RF applications up to 1 GHz.

Who is it for

Network engineers, RF technicians, and electronics professionals who need a dependable, high-quality BNC connector for custom cable assemblies in broadcast, telecommunications, or instrumentation environments.

Main features

• BNC male connector with 93 Ohm impedance for matched transmission lines.
• Straight body style for inline cable termination.
• Crimp outer ferrule and solder center contact for durable, low-loss connections.
• Nickel-plated brass body and gold-plated center contact for corrosion resistance and conductivity.
• PTFE insulator ensures low dielectric loss and high temperature stability.
• Supports cable dielectric diameter of 2.8 mm.
• Operates from DC to 1 GHz with 500 V RMS voltage rating.
• Wide temperature range from -55 °C to +155 °C.

Specifications

• Connector Series: BNC
• Impedance: 93 Ohm
• Gender: Male
• Body Style: Straight
• Mounting Type: Cable Mount
• Termination Method: Crimp (Outer), Solder (Center)
• Compatible Cable Groups: RG-179, RG-179B/U, RG-187, RG-187A/U
• Cable Dielectric Diameter: 2.8 mm
• Body Material: Brass
• Body Plating: Nickel
• Contact Material: Brass
• Contact Plating: Gold (0.5 µm)
• Insulator Material: PTFE
• Frequency Range: DC to 1 GHz
• Voltage Rating: 500 V (RMS)
• Dielectric Withstanding Voltage: 1500 V (RMS)
• Insulation Resistance: ≥ 5 GΩ
• Operating Temperature: -55 °C to +155 °C
• Standard Compliance: IEC 60169-8, MIL-STD-348
• RoHS Compliant: Yes

Tips

Use the appropriate crimp tool and die set for the ferrule size to ensure a secure, reliable connection. Verify cable dimensions match the specified dielectric diameter before assembly.
