Telegärtner J01019A0002 Adaptador UHF para TNC, aço inoxidável, 50 Ohm

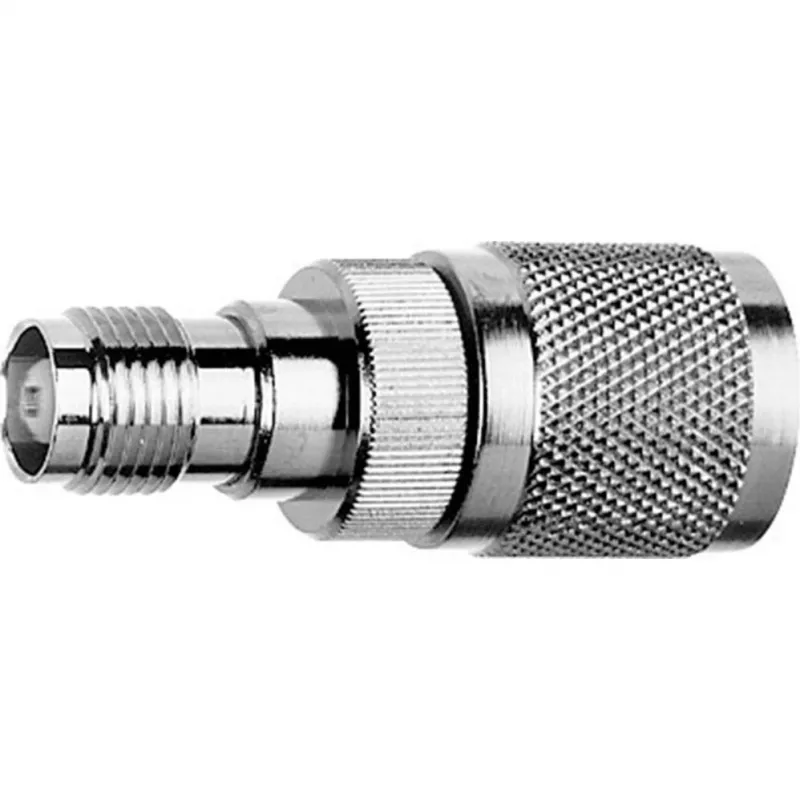

Connecting UHF and TNC interfaces often requires a reliable, low-loss adapter that maintains signal integrity across different connector types. The Telegärtner J01019A0002 solves this by providing a robust in-line adapter with a UHF jack on one end and a TNC plug on the other, enabling seamless interconnection between equipment using these common RF connectors.

Who is it for

RF technicians, radio amateurs, and communications system integrators who need to bridge UHF and TNC connections in antenna systems, test setups, or base station equipment. It is particularly suited for environments where a durable, corrosion-resistant adapter is required.

Main features

• UHF jack to TNC plug configuration for direct interconnection
• Stainless steel body for excellent corrosion resistance and mechanical strength
• Gold-plated brass center contacts ensure low contact resistance and long-term reliability
• PTFE insulator provides stable dielectric properties over a wide temperature range
• 50 Ohm impedance matches standard RF systems
• Wide frequency range from DC to 1 GHz

Specifications

• Connector 1: UHF jack (female)
• Connector 2: TNC plug (male)
• Impedance: 50 Ohm
• Frequency range: DC to 1 GHz
• Body material: Stainless steel
• Center contact material: Brass, gold-plated
• Insulator material: PTFE
• Voltage rating: 500 Veff
• Insulation resistance: ≥ 5 GΩ
• Center contact resistance: ≤ 1.5 mΩ
• Outer contact resistance: ≤ 1 mΩ
• VSWR: ≤ 1.25 (DC - 1 GHz)
• Temperature range: -55 °C to +155 °C
• Mating cycles: ≥ 500

Tips

Ensure connectors are clean and properly aligned before mating to avoid damage. The stainless steel body withstands harsh environments, but avoid excessive mechanical stress on the cable connections. For outdoor use, consider additional weatherproofing if the adapter is exposed to moisture.
