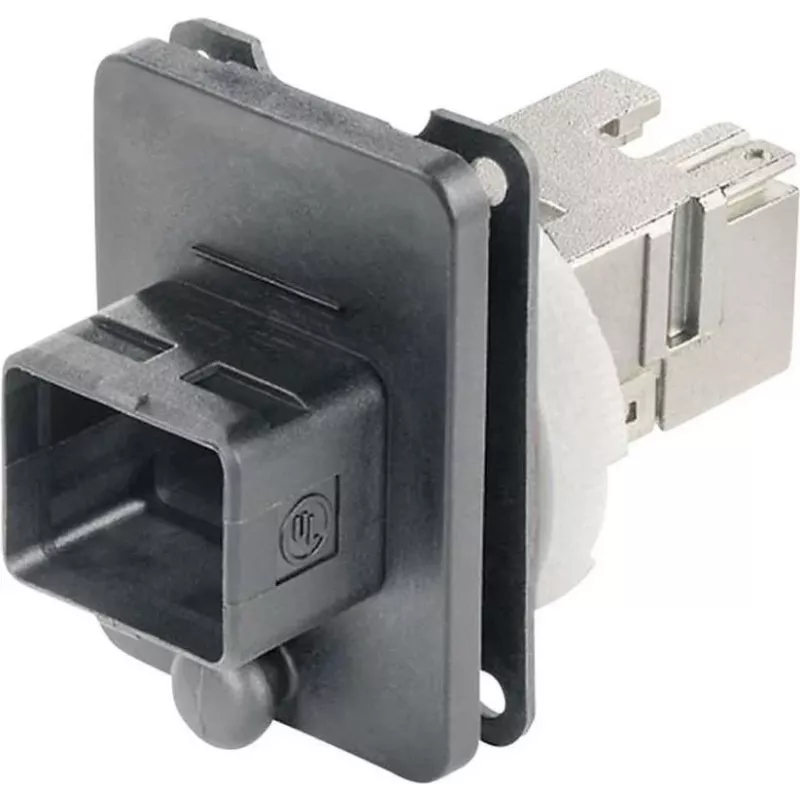

TELEGÄRTNER J80020A0005 conjunto de tomada RJ45 com flange variante 4, 8P8C, Cat.6A, blindado, preto

Cat.6A shielded RJ45 flange mount coupler set with 8P8C contacts, supporting 10 Gigabit Ethernet and Power over Ethernet up to 4PPoE. The die-cast zinc housing with gold-plated contacts ensures reliable performance in industrial and data network environments.

Overview

The TELEGÄRTNER J80020A0005 is a Variant 4 flange mount coupling set from the AMJ-S Module K series. It provides a female-to-female RJ45 connection for panel mounting, ideal for network cabinets and industrial Ethernet applications. The coupler is shielded and compliant with Cat.6A standards, delivering data rates up to 10GBASE-T.

What stands out

• Supports 10 Gigabit Ethernet (10GBASE-T) for high-speed data transmission
• PoE, PoE+, and 4PPoE compatibility (IEEE 802.3af/at/bt) for power delivery
• Robust die-cast zinc housing with nickel plating for durability
• Gold-plated contacts with over 750 mating cycles
• Wide operating temperature range from -40°C to +70°C

Technical details

• Connector type: RJ45
• Connector gender: Female-Female (coupling)
• Number of positions/contacts: 8P8C
• Mounting type: Panel mount (flange mount)
• Transmission category: Cat.6A
• Shielding: Shielded (STP/FTP compatible)
• Housing material: Die-cast zinc (nickel-plated)
• Contact plating: Gold over nickel
• Mating cycles: >750
• Operating temperature: -40°C to +70°C
• Flammability rating: UL 94 V-0 (for plastic components)
• Standard compliance: IEC 60603-7-51, ISO/IEC 11801, EN 50173, TIA/EIA-568-C.2

Our verdict

A high-performance flange mount coupler for demanding network installations, offering Cat.6A performance and robust construction.
