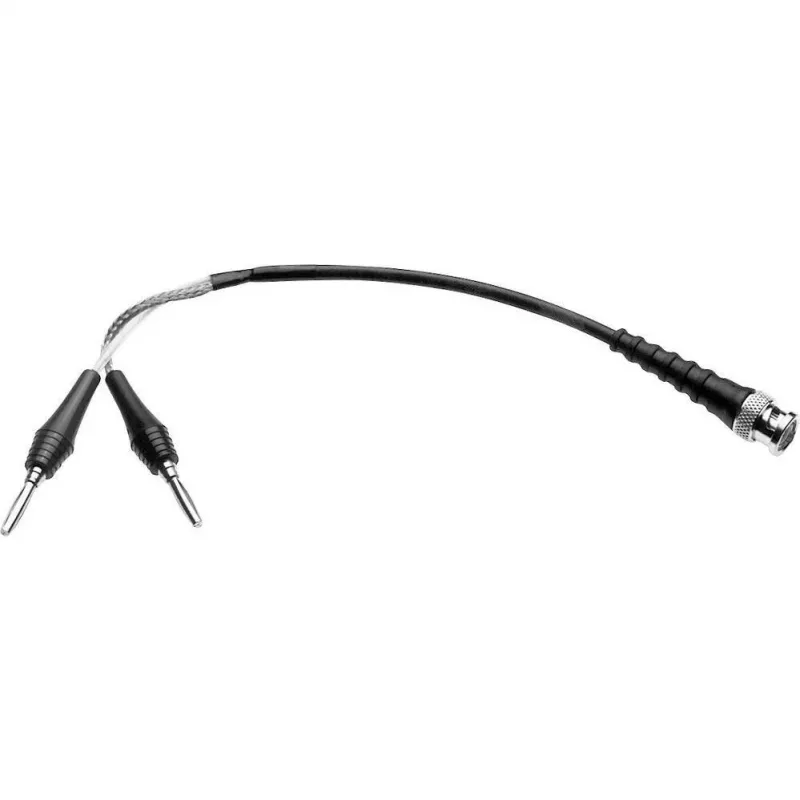

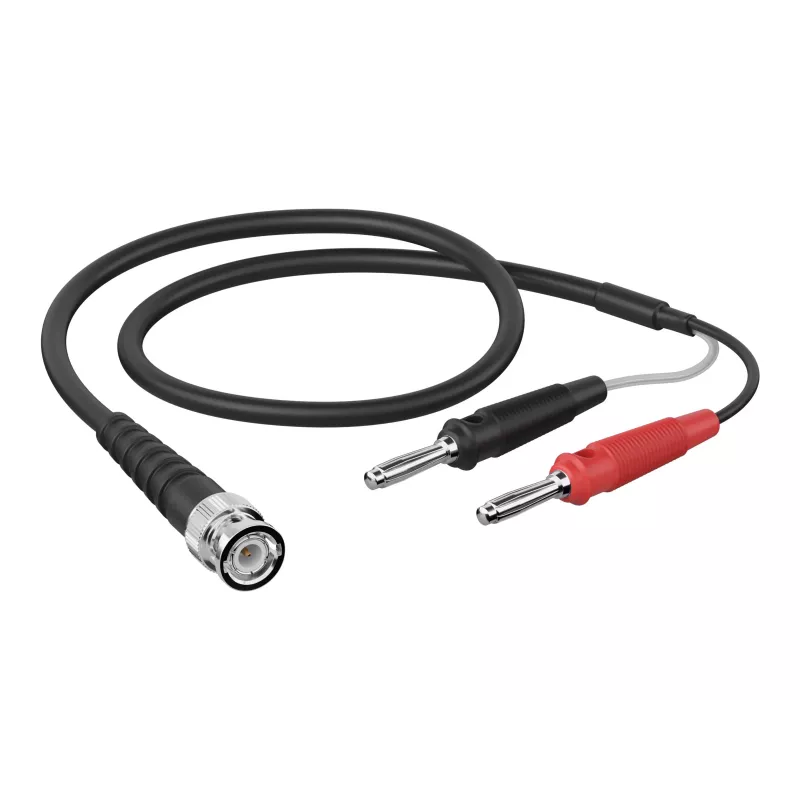

Telegärtner L00010A1844 cabo de medição coaxial BNC para 2x banana de 0,5 m, preto

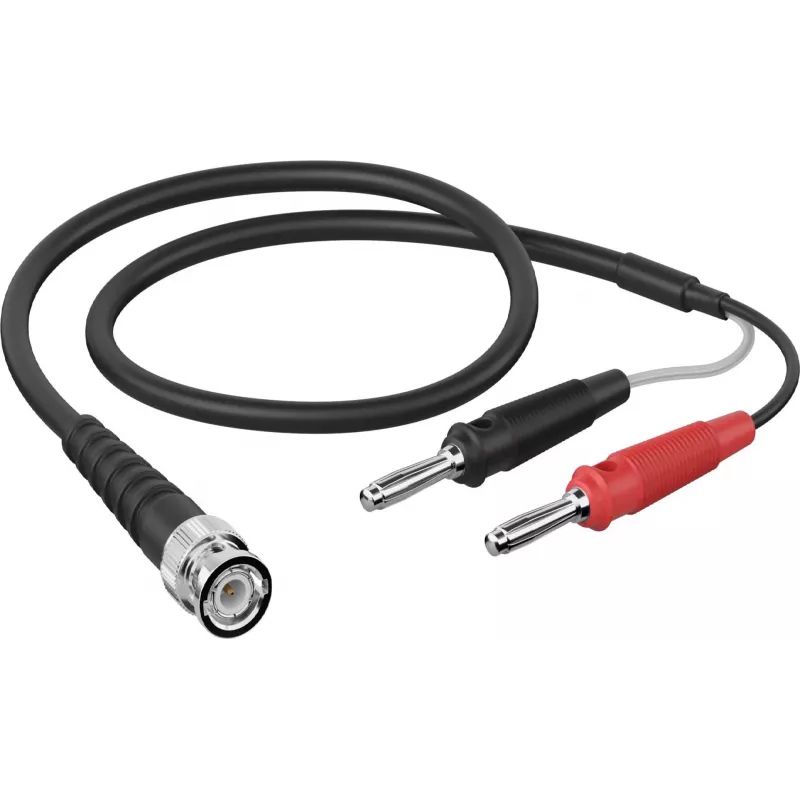

Coaxial test lead with BNC male plug to dual 4mm banana plugs, ideal for connecting oscilloscopes and signal generators to measurement equipment. The 0.5m black cable features a 50 Ohm impedance and braided copper shielding for reliable signal integrity.

Advantages

Nickel-plated connectors ensure durable contact and corrosion resistance. The PVC jacket and PE dielectric provide flexibility and stable performance across a wide temperature range.

Suitable for

• Test and measurement setups
• Oscilloscope connections
• Signal generator outputs

Key specifications

• Connector A: BNC male
• Connector B: 2x 4mm banana plugs (red and black)
• Length: 0.5 m
• Impedance: 50 Ohm
• Cable colour: black
• Conductor material: copper
• Shielding: braided copper
• Jacket material: PVC
• Dielectric material: PE
• Operating temperature: -20°C to +70°C
• Max. voltage rating: 500V
• Insulation resistance: > 200 MΩ
• Contact plating: nickel
• Cable diameter: approx. 2.9 mm

Recommendations

Choose this lead for precise signal transmission in laboratory and field testing environments.
